Support frame rear fr.wheel drv Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0505315BH	Support frame	999	Next
1	1K0505315BM	Support frame	999	Next
2	N91096401	Bolt,hex.hd.with shoul.(combi) M12X1,5X95	999	Next
2	N10785401	Hexagon flange screw (combi) M12X1,5X95	999	Next
3	N91096401	Bolt,hex.hd.with shoul.(combi) M12X1,5X95	999	Next
3	N10785401	Hexagon flange screw (combi) M12X1,5X95	999	Next
4		Not for this model	999	Next
7	1K0501682	Retaining bracket with: POS.8	999	Next
8		Not for this model	999	Next
9	N90548305	Hex collared bolt M8X20	999	Next
10	N90183802	Hexagon collar nut self-locking M8	999	Next
12	1K0501713D	Trim for rear axle	999	Next
13	WHT000713	Hexagon collar nut plastic 5	999	Next

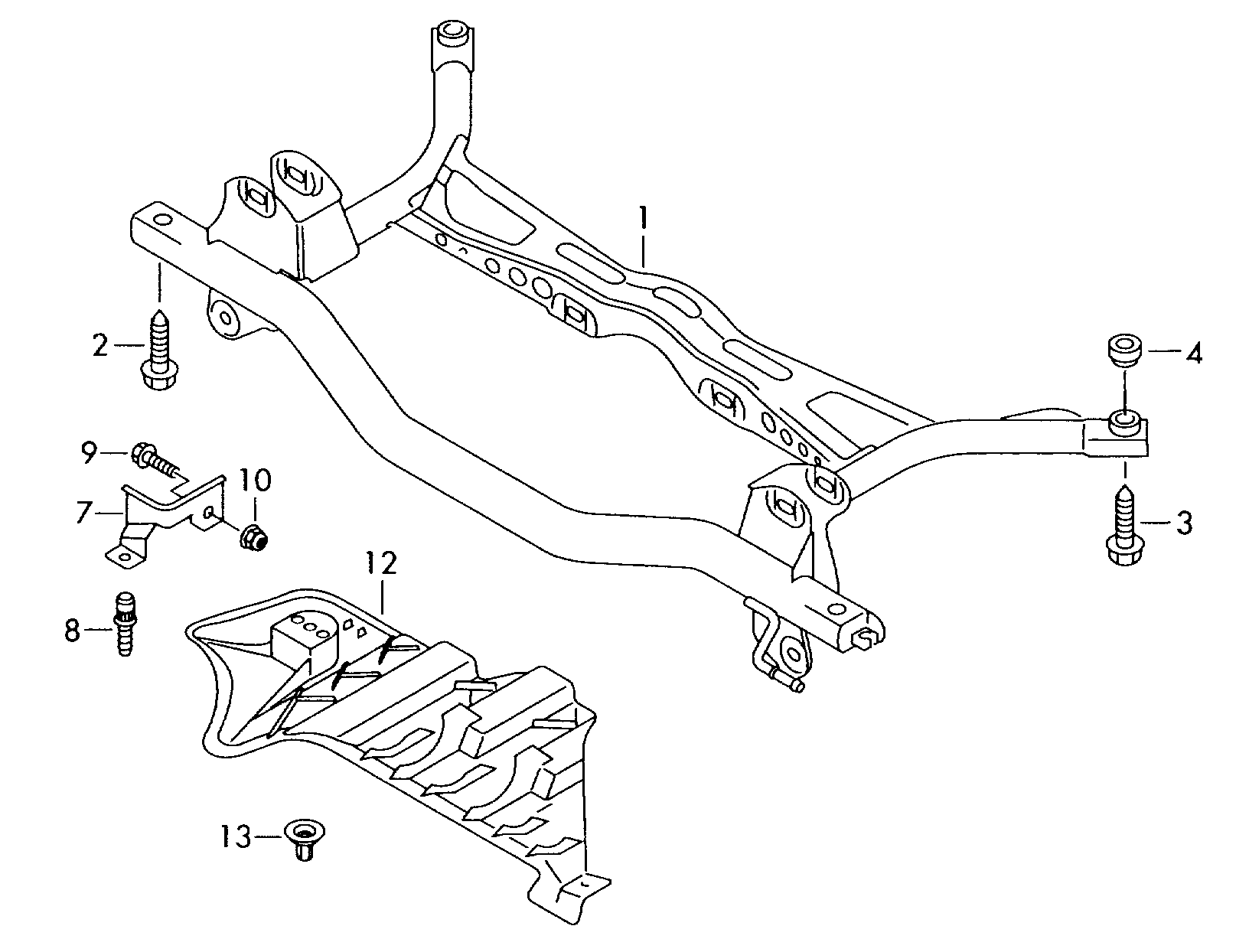

Scheme Support frame rear fr.wheel drv Volkswagen Golf Plus 2012-2014 EUR
