Support frame rear fr.wheel drv, 03.11.2009 and after Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0505235R	Support frame, before 14.12.2009	999	Next
1	3C0505235AC	Support frame	999	Next
-	N10597701	Rivetted cap nut M5/0,53	999	Next
2	3C0505145	Bonded rubber bush	999	Next
3	3C0505145A	Bonded rubber bush	999	Next
4	WHT000846	Bolt,hex.hd.with shoul.(combi) M12X1,50X110	999	Next
5	N91114701	Bolt,hex.hd.with shoul.(combi) M12X1,5X110	999	Next
6		Bungs not for this model	999	Next
7	1K0501681	Retaining bracket	999	Next
7	1K0501682	Retaining bracket	999	Next
9	N90548305	Hex collared bolt M8X20	999	Next
10	N90183802	Hexagon collar nut self-locking M8	999	Next
12	3C0501713A	Trim for rear axle	999	Next
13	WHT000713	Hexagon collar nut plastic 5	999	Next

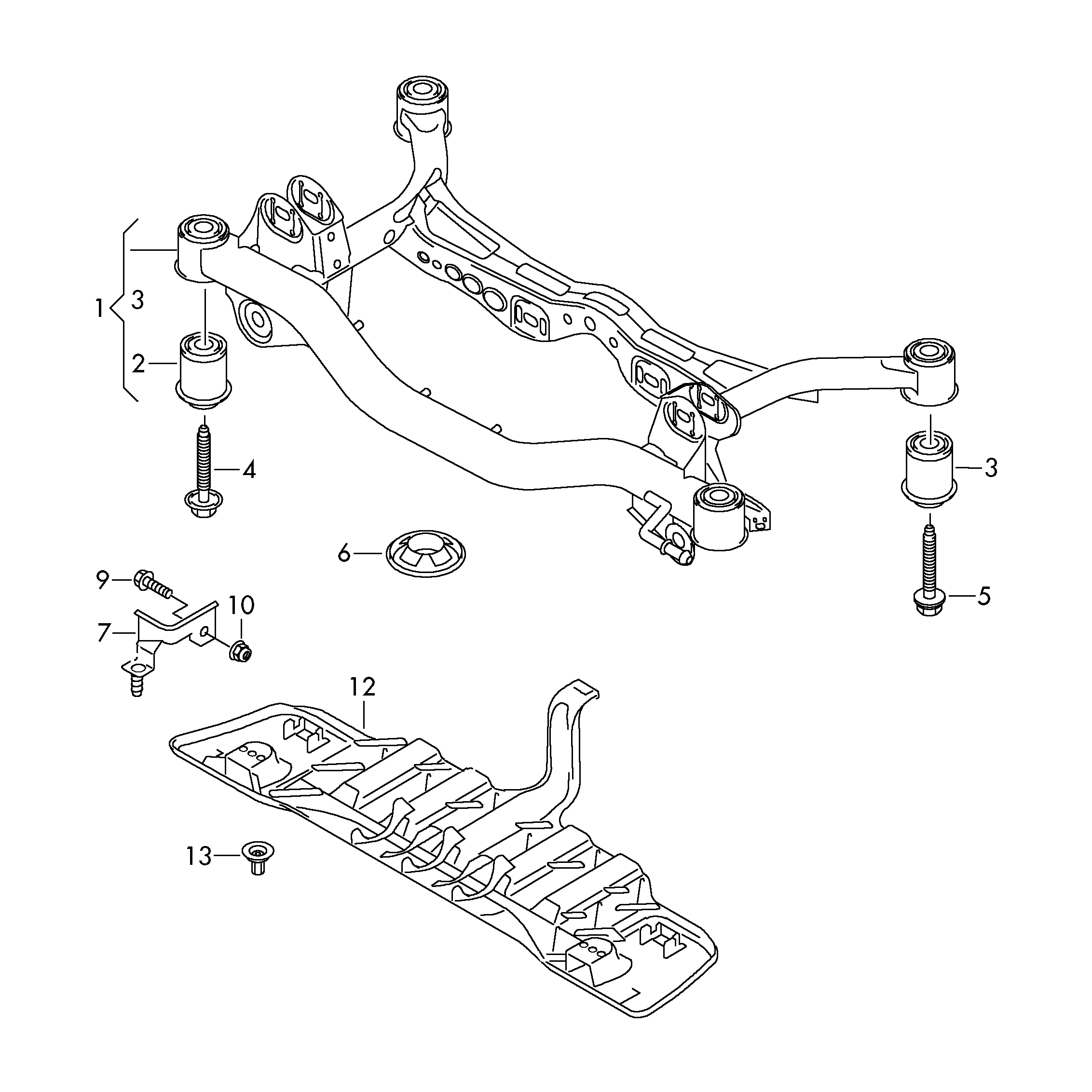

Scheme Support frame rear fr.wheel drv, 03.11.2009 and after Volkswagen Passat CC Coupe 2009-2012 EUR
