Support frame, cross member for axle drive rear 4motion Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0505235L	Support frame	999	Next
1	5N0505235AB	Support frame	999	Next
1	5N0505235AD	Support frame use if required: 7L0 899 187	999	Next
1	5N0505235AF	Support frame use if required: 7L0899187, N90825401	999	Next
1	5N0505235AH	Support frame use if required: 7L0899187, N90825401	999	Next
1	N 90825401	Rivetted cap nut M5/0,5-3	999	Next
1	1K0505145J	Bonded rubber bush	999	Next
1	5Q0505145D	Bonded rubber bush	999	Next
1	1K0505145K	Bonded rubber bush	999	Next
1	5Q0505145E	Bonded rubber bush	999	Next
1	N 10505301	Hex collared bolt	999	Next
1	N 10715901	Hex collared bolt	999	Next
1		Cross member not for this model	999	Next
1		Hex collared bolt not for this model	999	Next
1		Hexagon collar nut not for this model	999	Next
1	5N0505233A	Stop for gearbox 90X2,5	999	Next
1	N 10720301	Socket head bolt with inner multipoint head (kombi) M12X1,5X95	999	Next
1		Shim not for this model	999	Next
1	7L0899187	Bungs 20	999	Next

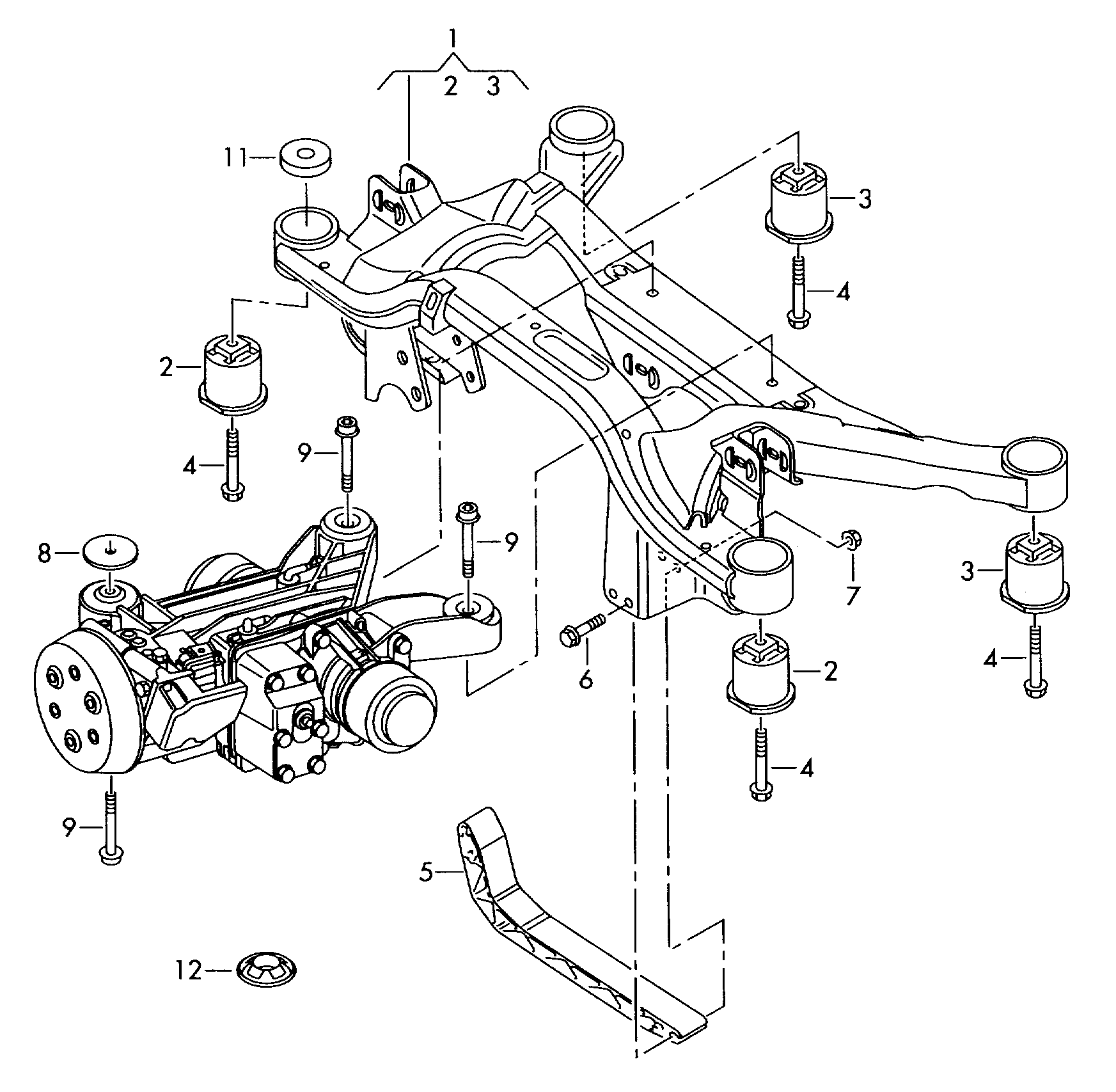

Scheme Support frame, cross member for axle drive rear 4motion Volkswagen Tiguan 2010-2017 EUR
