Support frame, cross member for axle drive rear 4motion Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0505235L	Support frame	999	Next
-	N10597701	Rivetted cap nut M5/0,53	999	Next
2	1K0505145J	Bonded rubber bush	999	Next
3	1K0505145K	Bonded rubber bush	999	Next
4	N10505301	Hex collared bolt M12X1,5X125X49	999	Next
5		Cross member not for this model	999	Next
6		Hex collared bolt not for this model	999	Next
7		Hexagon collar nut not for this model	999	Next
8	5N0505233A	Stop for gearbox 90X2,5	999	Next
9	N10720301	Socket head bolt with inner multipoint head (kombi) M12X1,5X95	999	Next
11	1T0505147A	Shim	999	Next
12	7L0899187	Bungs 20	999	Next

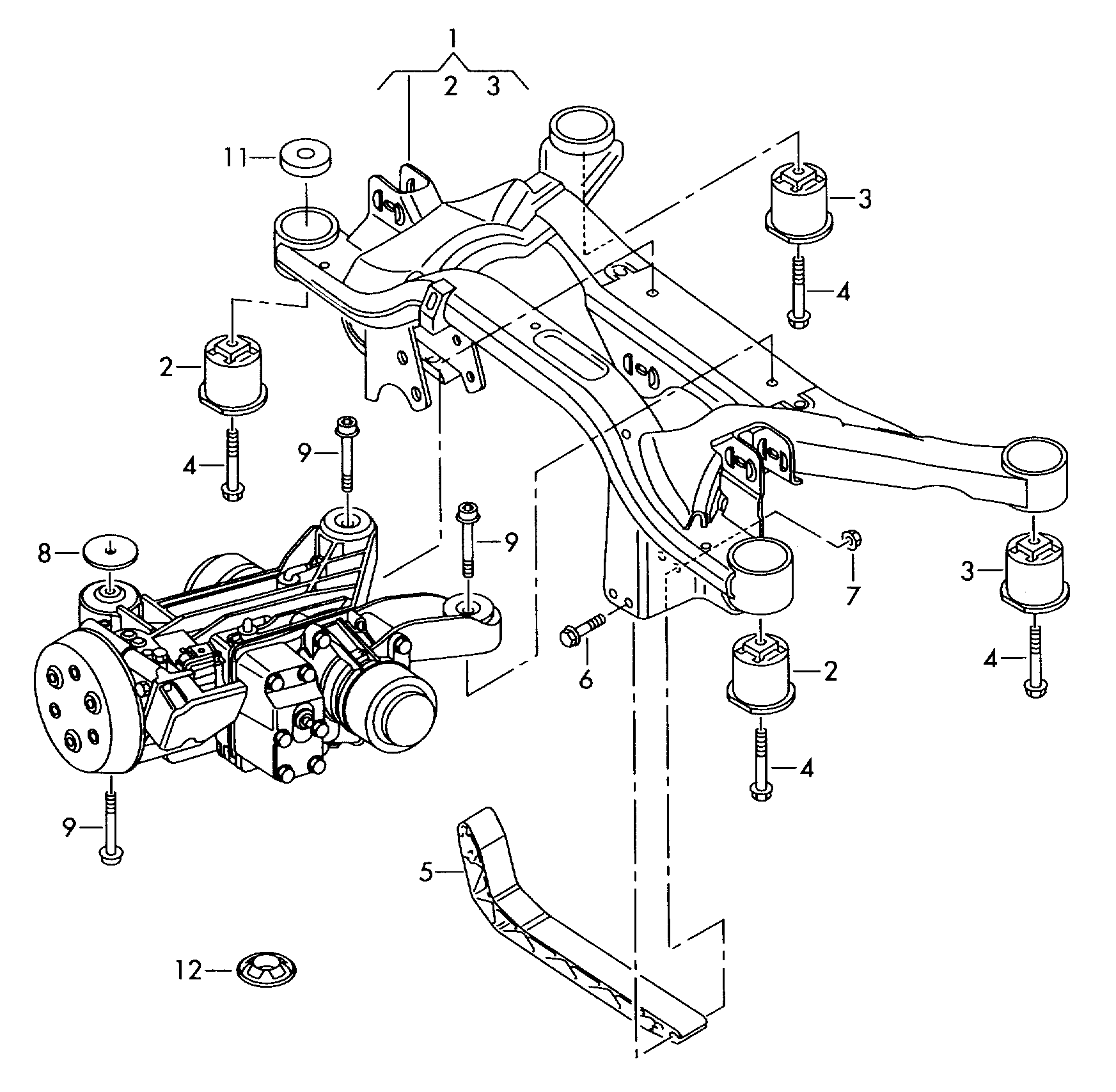

Scheme Support frame, cross member for axle drive rear 4motion Volkswagen Passat CC Coupe 2009-2012 EUR
