Steering gear, track rod Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K1423055M	Steering gear also use: 1K0 498 970 A	999	Next
1	1K1423055MX	Steering gear also use: 1K0 498 970 A	999	Next
1	1K2423055K	Steering gear also use: 1K0 498 970 A	999	Next
1	1K2423055KX	Steering gear also use: 1K0 498 970 A	999	Next
2	1K0423187	O-ring	999	Next
3	1K0423121B	Threaded bush M10	999	Next
4	N10579702	Hex collared bolt M10X76	999	Next
5		Wiring set for servotronic	999	Next
7	N90915802	Hexagon socket head bolt, thread-forming M6X7	999	Next
8	1K1423981J	Heat shield plate	999	Next
8	1K2423981E	Heat shield plate	999	Next
10	N90834901	Clamp 55,5X7X0,6	999	Next
11	1K0423831A	Protective sleeve	999	Next
12	1K0423933	Clamp 19,4-22,5	999	Next
13	1K0423810A	Track rod	999	Next
14	N01116417	Hexagon nut M16X1,5	999	Next
15	1K0423811J	Tie rod end	999	Next
15	1K0423812J	Tie rod end	999	Next
16	N90942902	Hexagon nut, self-locking M12X1,5	999	Next
17	G052168A1	Steering gear grease 10G	999	Next
17	G052197A1	Steering gear grease 10G	999	Next
20	1K0498970A	Repair set for steering box	999	Next

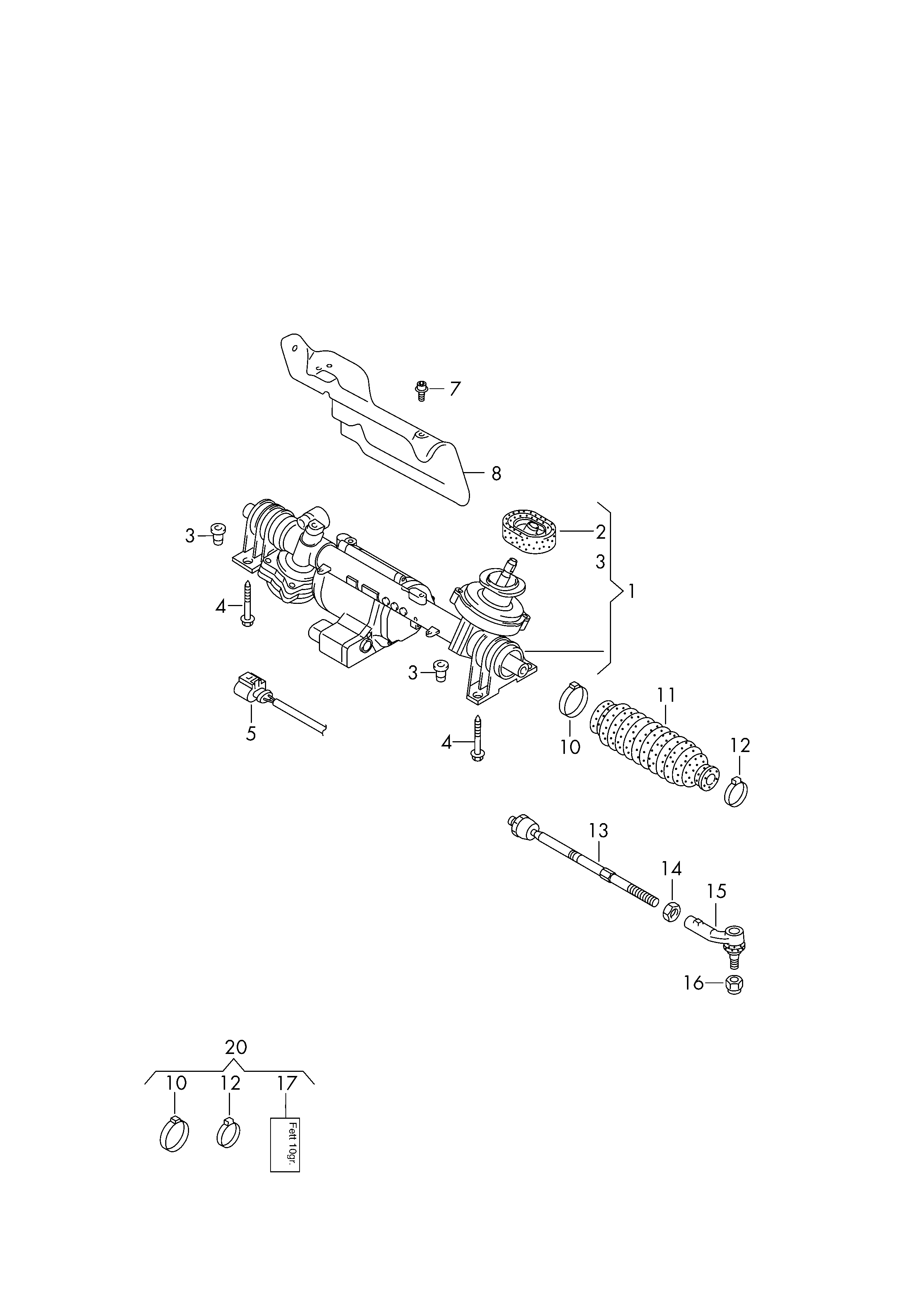

Scheme Steering gear, track rod Volkswagen Golf Plus 2012-2014 EUR
