Steering gear, track rod rhd Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N2423055A	Steering gear	999	Next
1	5N2423055AX	Steering gear	999	Next
1	1K0423187	O-ring	999	Next
1	1K0423121B	Threaded bush M10	999	Next
1	N 10560702	Hex collared bolt M10X70	999	Next
1		Heat shield not for this model	999	Next
1	N 90915802	Hexagon socket head bolt, thread-forming M6X7	999	Next
1	1K2423981E	Heat shield plate	999	Next
1	5N2423981A	Heat shield plate	999	Next
1	1K2423981D	Heat shield plate	999	Next
1	N 90834901	Clamp 55,5X7X0,6	999	Next
1	1K0423831A	Protective sleeve	999	Next
1	1K0423933	Clamp 19,4-22,5	999	Next
1	1K0423810A	Track rod	999	Next
1	N 01116417	Hexagon nut M16X1,5	999	Next
1	1K0423811K	Tie rod end	999	Next
1	1K0423812K	Tie rod end	999	Next
1	N 90635001	Hexagon nut, self-locking M12X1,5	999	Next
1	G 052168A1	Steering gear grease 10G	999	Next
1	1K0498970A	Repair set for steering box	999	Next

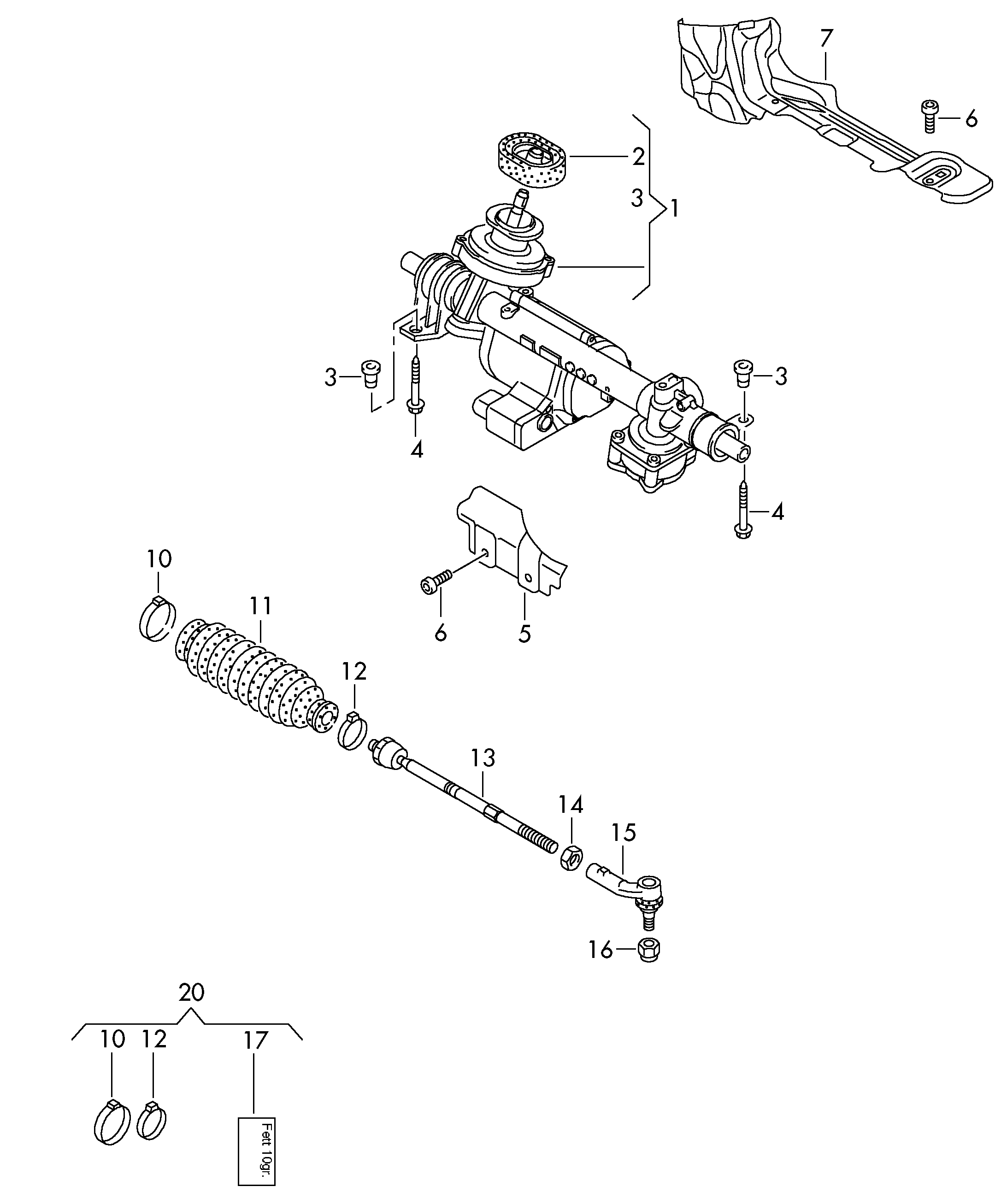

Scheme Steering gear, track rod rhd Volkswagen Tiguan 2010-2017 EUR
