Side member, wheel housing front, front Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1A	800981	Sheet metal plate 200X1500X0,8	999	Next
1A	000800981A	Sheet metal plate 300X1500X0,8	999	Next
1A	000800981B	Sheet metal plate 500X1500X0,8	999	Next
1A	000800981C	Sheet metal plate 800X1500X0,8	999	Next
1	1K0802068	Engine mounting bracket	999	Next
3	1K0802121A	Threaded plate	999	Next
3	1K0802122A	Threaded plate	999	Next
4	5M0802125	A-pillar, inner	999	Next
4	5M0802126	A-pillar, inner	999	Next
5	5M0803163	Cross member	999	Next
6	5M0802179	Reinforcement for cross member	999	Next
7	1T0802165	Frame for cross panel	999	Next
11	5M0802623	A-pillar, inner	999	Next
11	5M0802624	A-pillar, inner	999	Next
15	1K0803091E	Side member with reinforce- ments and welded nuts	999	Next
15	1K0803091D	Side member with reinforce- ments and welded nuts	999	Next
15	1K0803092H	Side member with reinforce- ments and welded nuts	999	Next
18	1K0803105C	Side member can be used as a sub-part	999	Next
18	1K0803106D	Side member can be used as a sub-part	999	Next
20	1K0803127	Retainer for subframe	999	Next
20	1K0803128	Retainer for subframe	999	Next
22	5M0803163	Cross member also use: 5M0 802 179 5M0 809 449 5M0 809 450	999	Next
23	1K0803177	Closing plate	999	Next
23	1K0803178	Closing plate	999	Next
24	1K0805422C	Cross panel water box	999	Next
25	1K1804011M	Cross panel	999	Next
25	1K1804011N	Cross panel for vehicles with air condit.	999	Next
25	1K2804011H	Cross panel	999	Next
25	1K2804011G	Cross panel for vehicles with air condit.	999	Next
26	1K0804055A	Retainer for subframe	999	Next
26	1K0804056	Retainer for subframe	999	Next
27	N90471802	Hexagon bolt M8X18	999	Next
29	1K0804105D	Cover plate for slide member retainer for battery	999	Next
29	1K0804106D	Cover plate for slide member	999	Next
29	1K0804106C	Cover plate for slide member	999	Next
31	1K0804181B	Cover plate	999	Next
31	1K0804182B	Cover plate	999	Next
35	5M0805029	Closing element	999	Next
36	5M0805030	Closing plate	999	Next
37	1K0805147A	Wheel housing	999	Next
37	1K0805148C	Wheel housing	999	Next
38	1K0805265A	Water box	999	Next
40	1K0805364	Reinforcement f. plen. chamber	999	Next
41	1K2805367	Support	999	Next
42	5M0805275A	Cross member for front panel	999	Next
43	N90533005	Hexagon head bolt (combi) M6X20	999	Next
44	N90833102	Oval hexagon socket head bolt M6X10	999	Next
45	N90168604	Speed nut M6X23,4X16	999	Next
46	1K0611845B	Retainer for brake hose	999	Next
46	1K0611846B	Retainer for brake hose	999	Next
49	1K0809121A	Suspension strut dome	999	Next
49	1K0809122A	Suspension strut dome	999	Next
51	5M0809145	Side member for wheel housing	999	Next
51	5M0809146	Side member for wheel housing	999	Next
53	5M0810135	Side member	999	Next
53	5M0810136	Side member	999	Next
56	1K0810812	Retainer for engine carrier	999	Next
58	1K0810811	Mounting bracket for gearbox	999	Next
65	1K0823402A	Bracket for gas filled strut	999	Next
60	1C0819142	Seal	999	Next
71	D007600A1	Inox spray 400ML	999	Next
71	D007500A2	Zinc spray 400ML	999	Next

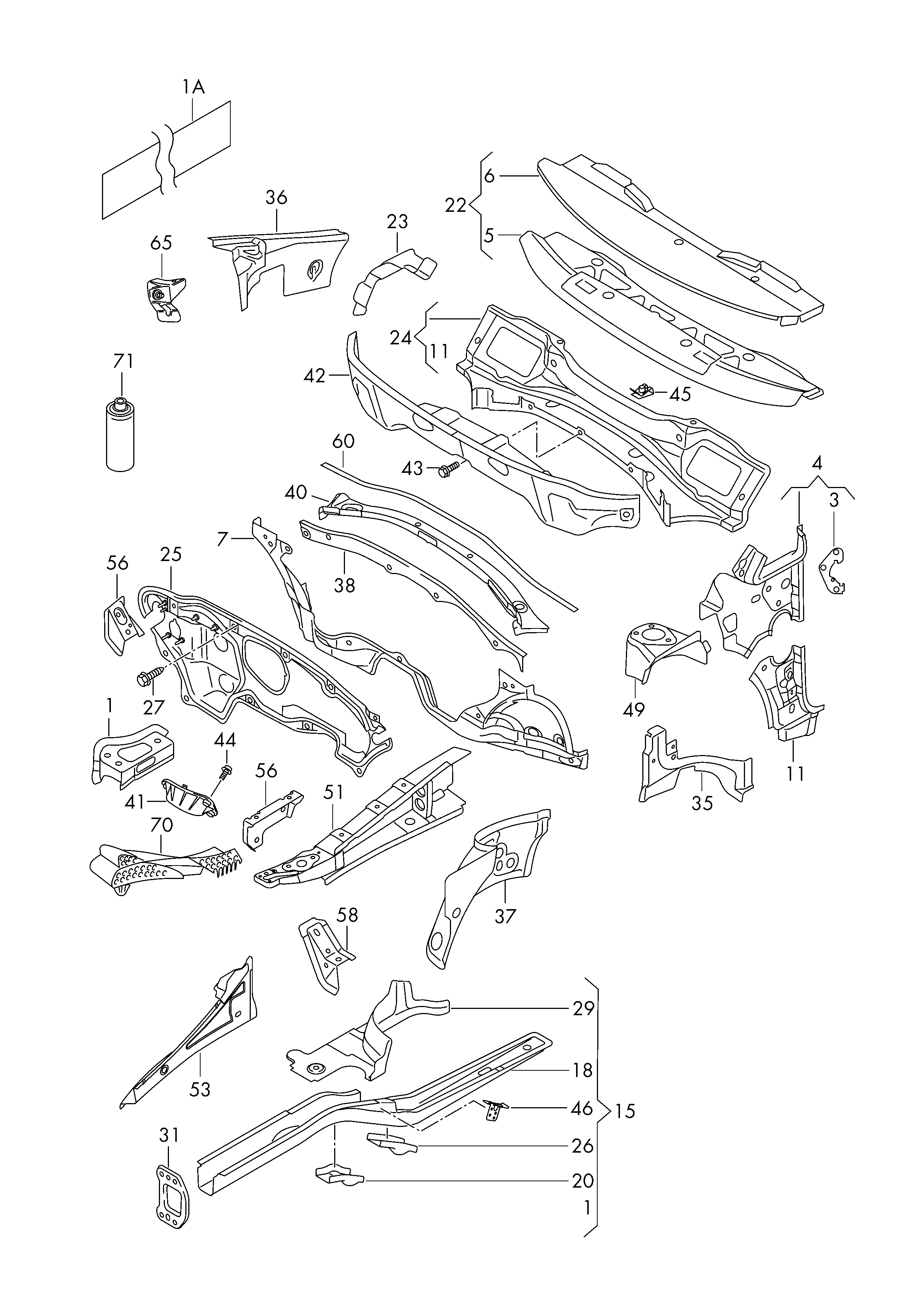

Scheme Side member, wheel housing front, front Volkswagen Golf Plus 2012-2014 EUR
