Side member front Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0802068	Engine mounting bracket	999	Next
1	5N0803091	Side member with reinforce- ments and welded nuts	999	Next
1	5N0803092	Side member with reinforce- ments and welded nuts	999	Next
1	5N0803105	Sectional part - side member	999	Next
1	5N0803106	Sectional part - side member	999	Next
1	5N0611845B	Retainer for brake hose	999	Next
1	5N0611845	Retainer for brake hose	999	Next
1	5N0611846B	Retainer for brake hose	999	Next
1	5N0611846	Retainer for brake hose	999	Next
1	5N0803229	Reinforcement for side member	999	Next
1	5N0803230	Reinforcement for side member	999	Next
1	5N0803691	Support	999	Next
1	N 91068701	Hexagon head bolt (combi) M10X25	999	Next
1	5N0810811	Mounting bracket for gearbox	999	Next
1	5N0803107	Cover plate for slide member can be used as a sub-part	999	Next
1	WHT000262	Welded pin abs unit with control unit	999	Next
1	5N0803108	Cover plate for slide member can be used as a sub-part	999	Next
1	5N0804140	Protective profile	999	Next
1	5N0804181	Cover plate	999	Next
1	5N0804182	Cover plate	999	Next

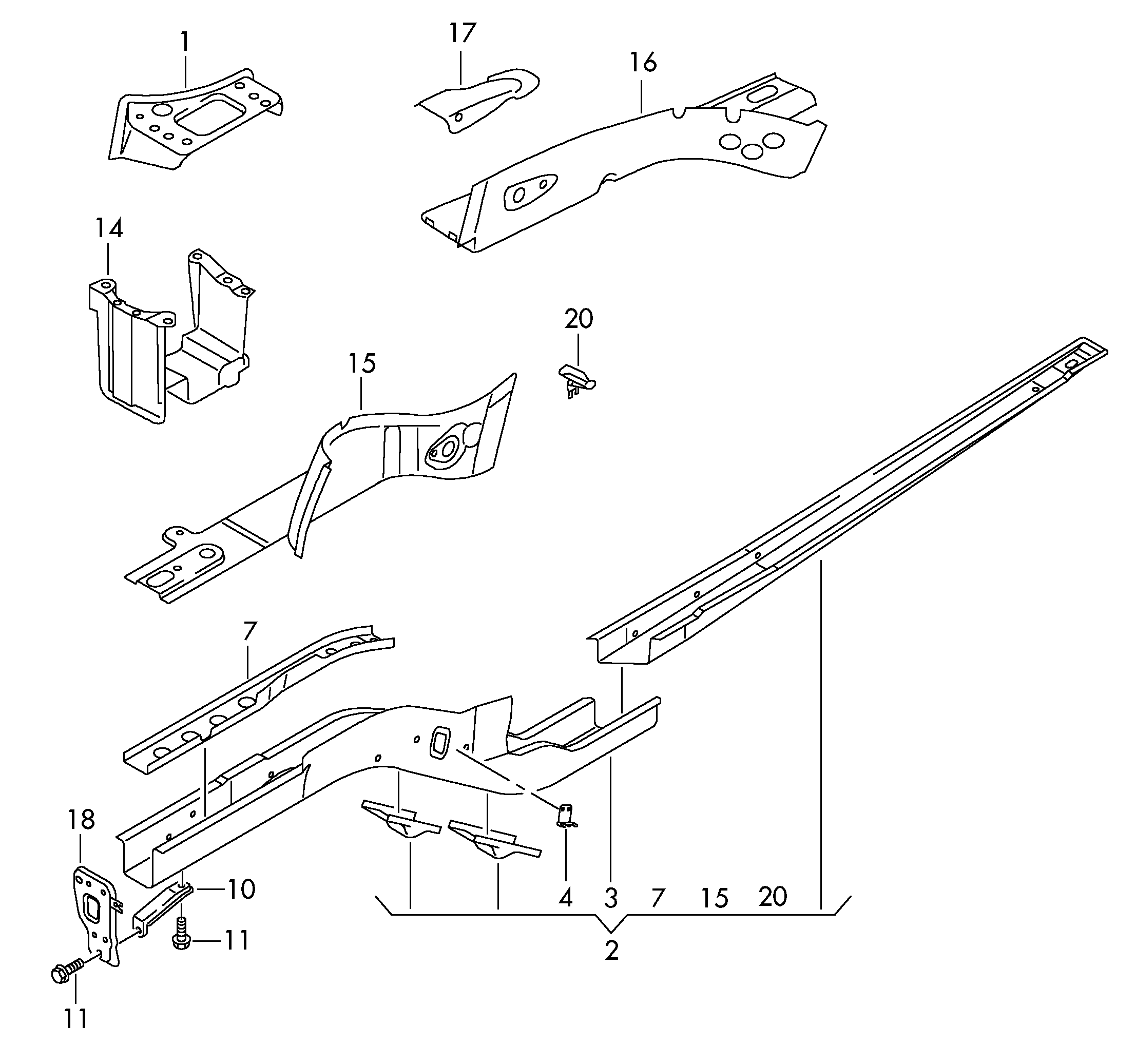

Scheme Side member front Volkswagen Tiguan 2010-2017 EUR
