Side member front Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6R0803091B	Side member with reinforcements and welded nuts also use: 6R0 804 181	999	Next
1	6R0803091C	Side member with reinforcements and welded nuts also use: 6R0 804 181	999	Next
1A	800981	Sheet metal plate 200X1500X0,8	999	Next
1A	000800981A	Sheet metal plate 300X1500X0,8	999	Next
1A	000800981B	Sheet metal plate 500X1500X0,8	999	Next
1A	000800981C	Sheet metal plate 800X1500X0,8	999	Next
2	6R0803092C	Side member with reinforcements and welded nuts	999	Next
5	6R0803105A	Side member can be used as a sub-part use if required: N 905 281 03	999	Next
-	N90528103	Nut, square M10	999	Next
6	6R0803106	Side member can be used as a sub-part use if required: N 905 281 03	999	Next
-	N90528103	Nut, square M10	999	Next
10	6Q0803107G	Cover plate for slide member	999	Next
11	6Q0804106E	Cover plate for slide member	999	Next
12	6Q0803127C	Bracket mount support frame	999	Next
12	6Q0803128C	Bracket mount support frame	999	Next
15	6R0804181	Cover plate	999	Next
16	6R0804182	Cover plate	999	Next
18	6Q0804055	Retainer for subframe	999	Next
19	6Q0804056B	Retainer for subframe	999	Next
23	6Q0804933A	Mounting bracket for gearbox	999	Next
27	6R0802068	Engine mounting bracket	999	Next
29		Support with tow hitch not for this model	999	Next
31		Reinforcement not for this model	999	Next

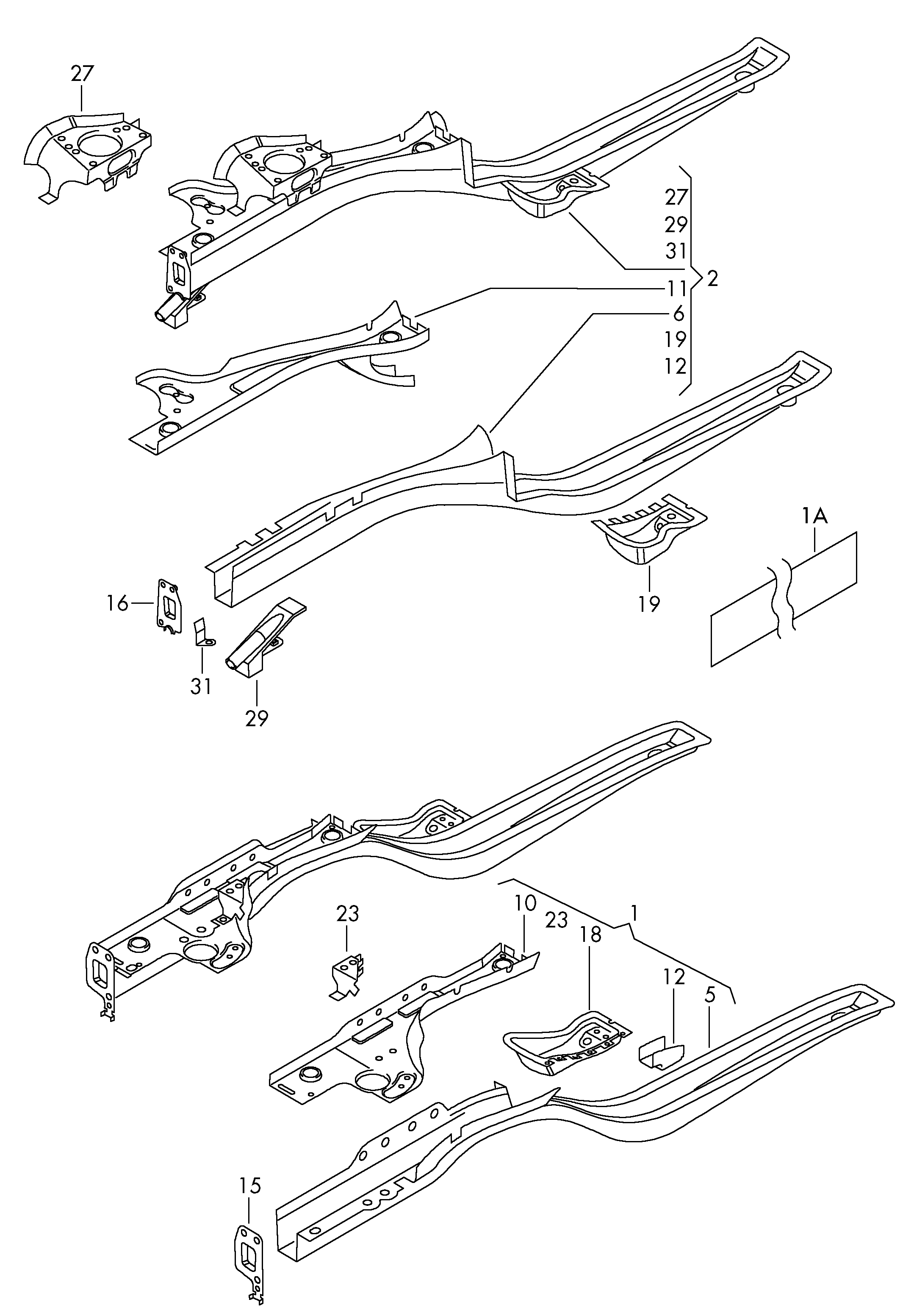

Scheme Side member front Volkswagen Polo 2013-2017 EUR
