Shift rod, 6-speed manual transmission, for four-wheel drive LMX, LMV, LMU, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 0A6301230E | Switch unit | Next |
| 1 | 0A6301230F | Switch unit | Next |
| 1 | 02A301227M | Shaft oil seal 24,3X6,4 | Next |
| 1 | 0A5301179A | O-ring 53X2 | Next |
| 1 | 02J301358C | Detent pin | Next |
| 1 | 14301485 | Cap for venting the gearbox | Next |
| 1 | N 90914402 | Hexagon bolt M8X50 | Next |
| 1 | 0A5311559G | Selector shaft with selec.fork | Next |
| 1 | 0A5311562F | Selector shaft with selec.fork | Next |
| 1 | 0A5311549E | Selector shaft with selec.fork | Next |
| 1 | 0A5311683 | Sliding sleeve | Next |
| 1 | 0A6311820B | Selector fork | Next |
| 1 | N 10609206 | Hexagon collar nut M8 | Next |
| 1 | Clutch housing | Next | |
| 1 | Gear housing | Next | |
| 1 | 02T945415P | Switch for reversing light | Next |

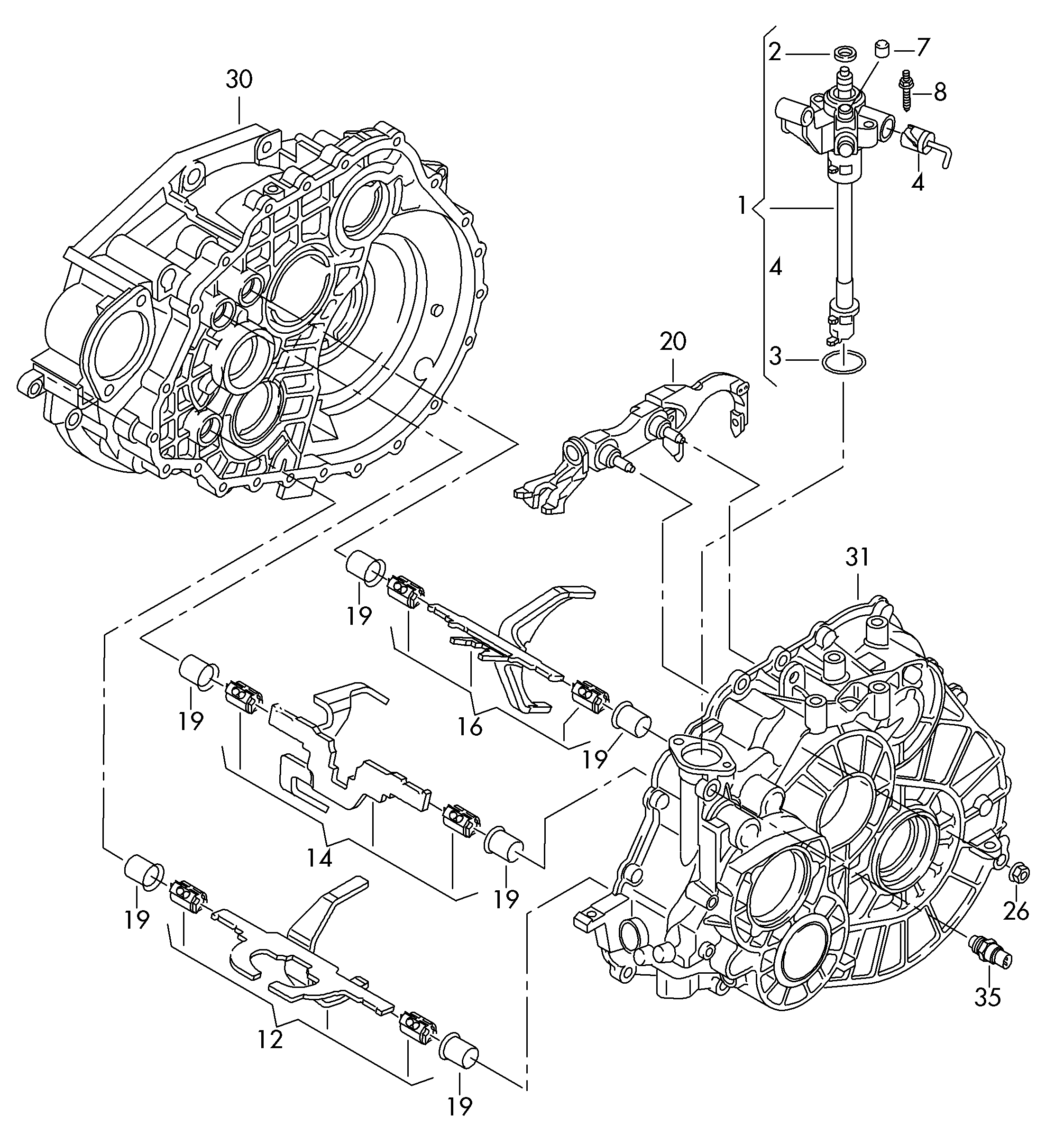

Scheme Shift rod, 6-speed manual transmission, for four-wheel drive LMX, LMV, LMU, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR
