Sensor for headlight range control, accelerator sensor for vehicles with electronically controlled damping, level sensor for vehicles with electronically controlled damping, control unit for electronic regulated damping Volkswagen Passat CC Coupe 2009-201

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0412521B	Level sensor with poles	999	Next
1	3C0412522B	Level sensor with poles	999	Next
3	N10653201	Hex collared bolt M6X16	999	Next
4	N10205802	Hexagon collar nut self-locking M6	999	Next
6	1K0412575	Accelerator sensor	999	Next
6	3C0412576A	Accelerator sensor	999	Next
7	N10127707	Hex collared bolt M8X26	999	Next
10	1K0941273N	Level sensor with poles	999	Next
10	1K0941273M	Level sensor with poles	999	Next
12	N10430104	Hexagon socket flat head bolt M5X16	999	Next
17	3C0941307A	Level sensor with poles	999	Next
17	3C0941309B	Level sensor with poles	999	Next
19	N10430103	Hexagon socket flat head bolt M5X16	999	Next
21	3C0616575B	Accelerator sensor	999	Next
23	N90648402	Hexagon head bolt (combi) M10X35	999	Next
25	3C0907376	Control unit for electronic regulated damping	999	Next
25	3C0907376Z1L	Control unit for electronic regulated damping	999	Next
25	3C0907376Z1K	Control unit for electronic regulated damping	999	Next
25	3C0907376A	Control unit for electronic regulated damping	999	Next
25	3C0907376AZ0S	Control unit for electronic regulated damping	999	Next
25	3C0907376AZ0R	Control unit for electronic regulated damping	999	Next
26	3C0971502B	Retainer for control unit	999	Next

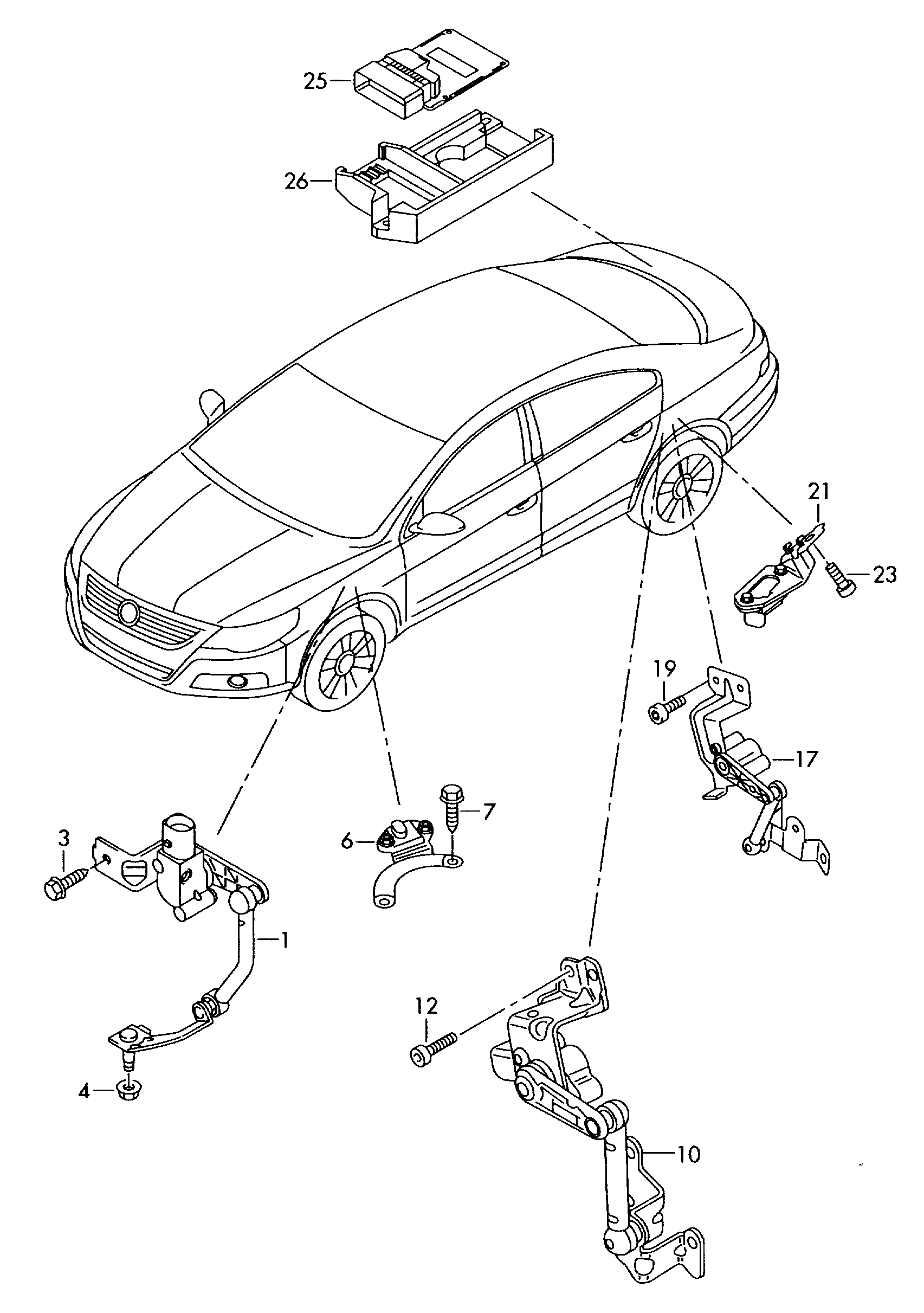

Scheme Sensor for headlight range control, accelerator sensor for vehicles with electronically controlled damping, level sensor for vehicles with electronically controlled damping, control unit for electronic regulated damping Volkswagen Passat CC Coupe 2009-201
