Selector mechanism manual, gearbox Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M0711113R	Gearstick knob with boot for gearstick lever (leatherette) 1-5,R	999	Next
1	5M0711113RTTC	Gearstick knob with boot for gearstick lever (leatherette) 1-5,R satin black/alum	999	Next
1	5M0711113AP	Gearstick knob with boot for gearstick lever (leatherette) 1-5,R	999	Next
1	5M0711113APXAS	Gearstick knob with boot for gearstick lever (leatherette) 1-5,R black	999	Next
1	5M0711113T	Gearstick knob with boot for gearstick lever (leather) 1-5,R	999	Next
1	5M0711113TTTD	Gearstick knob with boot for gearstick lever (leather) 1-5,R satin black/alum	999	Next
1	5M0711113TIPL	Gearstick knob with boot for gearstick lever (leather) 1-5,R black/art grey	999	Next
1	5M0711113AR	Gearstick knob with boot for gearstick lever (leather) 1-5,R	999	Next
1	5M0711113ARUMF	Gearstick knob with boot for gearstick lever (leather) 1-5,R black/aluminium	999	Next
1	5M0711113ARRIG	Gearstick knob with boot for gearstick lever (leather) 1-5,R black/silver grey	999	Next
1	5M0711113ARARA	Gearstick knob with boot for gearstick lever (leather) 1-5,R black/art grey	999	Next
1	5M0711113S	Gearstick knob with boot for gearstick lever (leatherette) 1-6,R	999	Next
1	5M0711113STTC	Gearstick knob with boot for gearstick lever (leatherette) 1-6,R satin black/alum	999	Next
1	5M0711113AQ	Gearstick knob with boot for gearstick lever (leatherette) 1-6,R	999	Next
1	5M0711113AQXAS	Gearstick knob with boot for gearstick lever (leatherette) 1-6,R black	999	Next
1	5M0711113AA	Gearstick knob with boot for gearstick lever (leather) 1-6,R	999	Next
1	5M0711113AATTD	Gearstick knob with boot for gearstick lever (leather) 1-6,R satin black/alum	999	Next
1	5M0711113AAIPL	Gearstick knob with boot for gearstick lever (leather) 1-6,R black/art grey	999	Next
1	5M0711113AS	Gearstick knob with boot for gearstick lever (leather) 1-6,R	999	Next
1	5M0711113ASUMF	Gearstick knob with boot for gearstick lever (leather) 1-6,R black/aluminium	999	Next
1	5M0711113ASRIG	Gearstick knob with boot for gearstick lever (leather) 1-6,R black/silver grey	999	Next
1	5M0711113ASARA	Gearstick knob with boot for gearstick lever (leather) 1-6,R black/art grey	999	Next
1A	1K0711144H	Badge 1-5,R	999	Next
1A	1K0711144K	Badge 1-5,R	999	Next
1A	1K0711144J	Badge 1-6,R	999	Next
1A	1K0711144L	Badge 1-6,R	999	Next
1A	5K0711144B	Badge 1-5,R	999	Next
1A	5K0711144C	Badge 1-6,R	999	Next
2	N10255501	Clamp 17,5X7X0,6	999	Next
4	N90830501	Retaining washer 10X22X0,5	999	Next
5	1J0711217	Bush	999	Next
6	1J0711197A	Pressure spring	999	Next
7	1K0711067C	Bush	999	Next
8	1K0711699A	Bearing shell	999	Next
9	1K0711267B	Use item: 15	999	Next
10	1K0711267B	Seal	999	Next
11	1K0711047	Damping	999	Next
12	N90714303	Hex. nut with washer M6	999	Next
13	1K0711050A	Selector housing	999	Next
14	1K0711901	Damper	999	Next
15	1K0711112B	Gearshift lever	999	Next
16	1K0711267C	Seal	999	Next
17	1K0711091A	Base plate	999	Next
20	1K0711522	Securing clip	999	Next
39	1J0711280C	Retaining washer	999	Next
40	1K0711266AD	Selector cable	999	Next
40	1K0711266Q	Selector cable	999	Next
40	1K0711266R	Selector cable	999	Next
40	1Q0711266A	Selector cable	999	Next
40	1K0711266T	Selector cable	999	Next
40	1K0711266AC	Selector cable	999	Next
40	1K0711266S	Selector cable	999	Next
41	1K0711265AT	Gear selector cable	999	Next
41	1K0711265AN	Gear selector cable	999	Next
41	1K0711265AP	Gear selector cable	999	Next
41	1Q0711265B	Gear selector cable	999	Next
41	1K0711265AQ	Gear selector cable	999	Next
41	1K0711265AR	Gear selector cable	999	Next
41	1K0711265BB	Gear selector cable	999	Next
42	1K0711789J	Abutment	999	Next
42	5Q0711789A	Abutment	999	Next
42	1K0711789H	Abutment	999	Next
42	1K0711789H	Abutment	999	Next
42	1K0711789G	Abutment	999	Next
43	357711798	Grommet	999	Next
44	1J0711795D	Distance piece	999	Next
45	N10106905	Hexagon head bolt (combi) M8X32	999	Next
46	1K0711761B	Bowden cable catch	999	Next
46	1J0711761B	Bowden cable catch	999	Next
47	5K0711203B	Relay lever	999	Next
47	5K0711203	Relay lever	999	Next
47	5K0711203A	Relay lever	999	Next
48		Bearing bush not for this model	999	Next
50	N90761102	Hexagon collar nut M8	999	Next
51	6Q0711550	Sliding shoe	999	Next
52	1K0711046Q	Gearshift lever	999	Next
52	1K0711046T	Gearshift lever	999	Next
52	1K0711046M	Gearshift lever	999	Next
53	1K0711637	Clip	999	Next
54	N90815903	Retaining washer 6X18X0,5	999	Next
55	3D0971838N	Cable ties hole/sheet metal thickness: 4,5X200 6,5/0,3-3	999	Next
70	G00045002	Grease 90G	999	Next

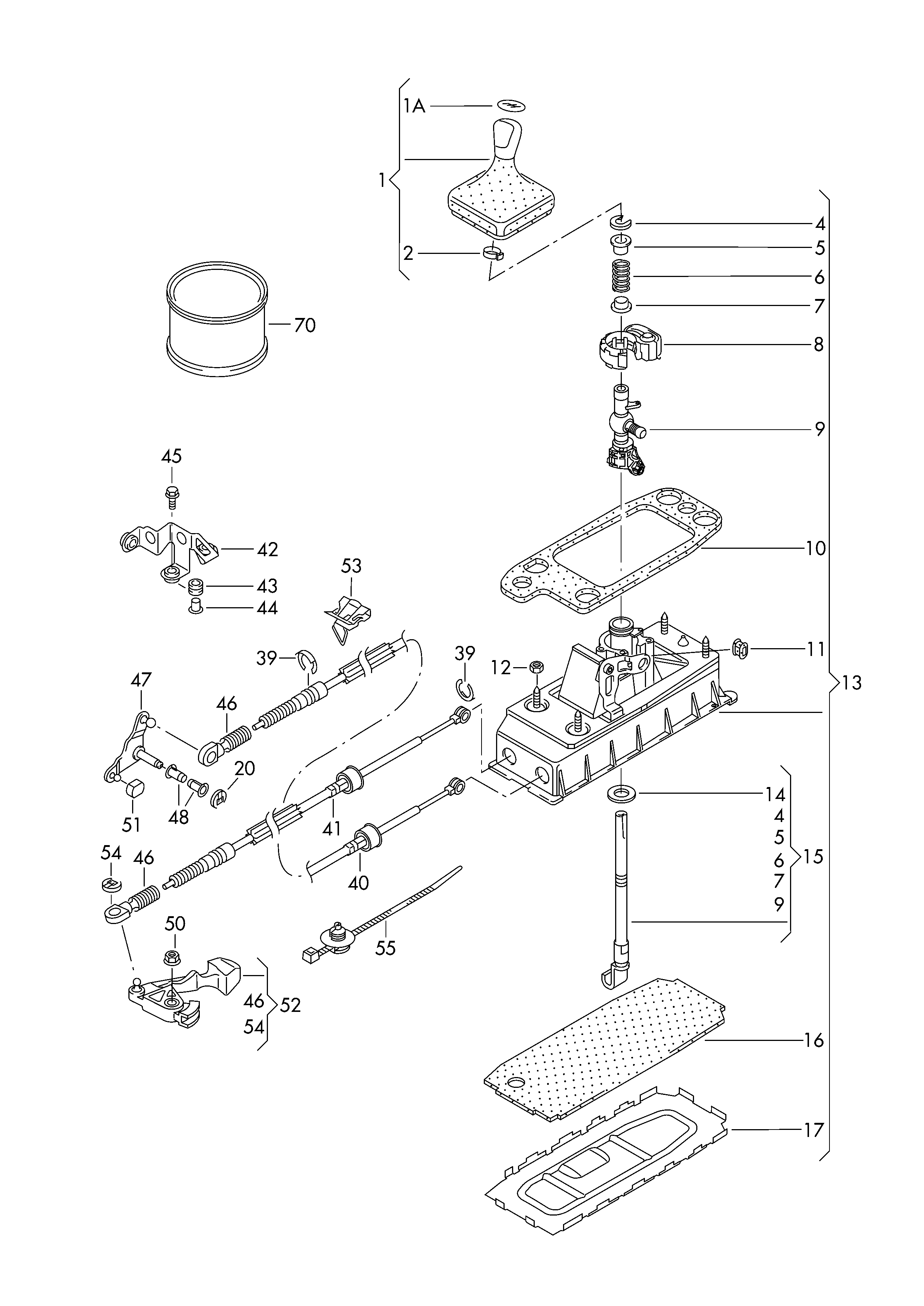

Scheme Selector mechanism manual, gearbox Volkswagen Golf Plus 2012-2014 EUR
