Sectional parts for the side section, fuel filler flap, wheel housing liner rear Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	D 180KD3A2	2 pack body adhesive adhesives and sealing compound 240ML	999	Next
1	D 180003M2	2 pack body adhesive adhesives and sealing compound 240ML	999	Next
1	5N0809051B	Side part	999	Next
1	5N0809052B	Side part	999	Next
1	6Q0860137A	Sealing plug	999	Next
1	N 91038901	Rivetted cap nut M6/0,5-3	999	Next
1	5N0809611A	Reinforcement for c-pillar	999	Next
1	5N0809612A	Reinforcement for c-pillar	999	Next
1	5N0809641	Sealing channel	999	Next
1	5N0809642	Sealing channel	999	Next
1	1K5809693	Bracket - fender	999	Next
1	5N0809835	Sectional part - pillar a/b with frame member	999	Next
1	5N0809836	Sectional part - pillar a/b with frame member	999	Next
1	5N0809843	Sectional part - side panel	999	Next
1	5N0809844	Sectional part - side panel	999	Next
1	5N0809857D	Flap for fuel filler with collecting tray	999	Next
1	5N0809857D GRU	Flap for fuel filler with collecting tray primed	999	Next
1	3D0809937B	Hose limit stop cup shorten to: 850MM 555MM	999	Next
1	5N0810333	Bracket - fender	999	Next
1	5N0810334	Bracket - fender	999	Next
1	5N0810773D	Throttle control element fuel filler flap	999	Next
1	5N0810773E	Throttle control element fuel filler flap	999	Next
1	5N0810773F	Throttle control element fuel filler flap	999	Next
1	5N0810971	Wheel housing liner	999	Next
1	5N0810972	Wheel housing liner	999	Next
1	N 10621301	Expanding nut 5X13,2	999	Next
1	N 90833801	Expanding nut 4,8	999	Next
1	N 10415903	Oval hexagon socket head bolt 4X12	999	Next
1	N 90974701	Hexagon socket head panel bolt 5X16	999	Next

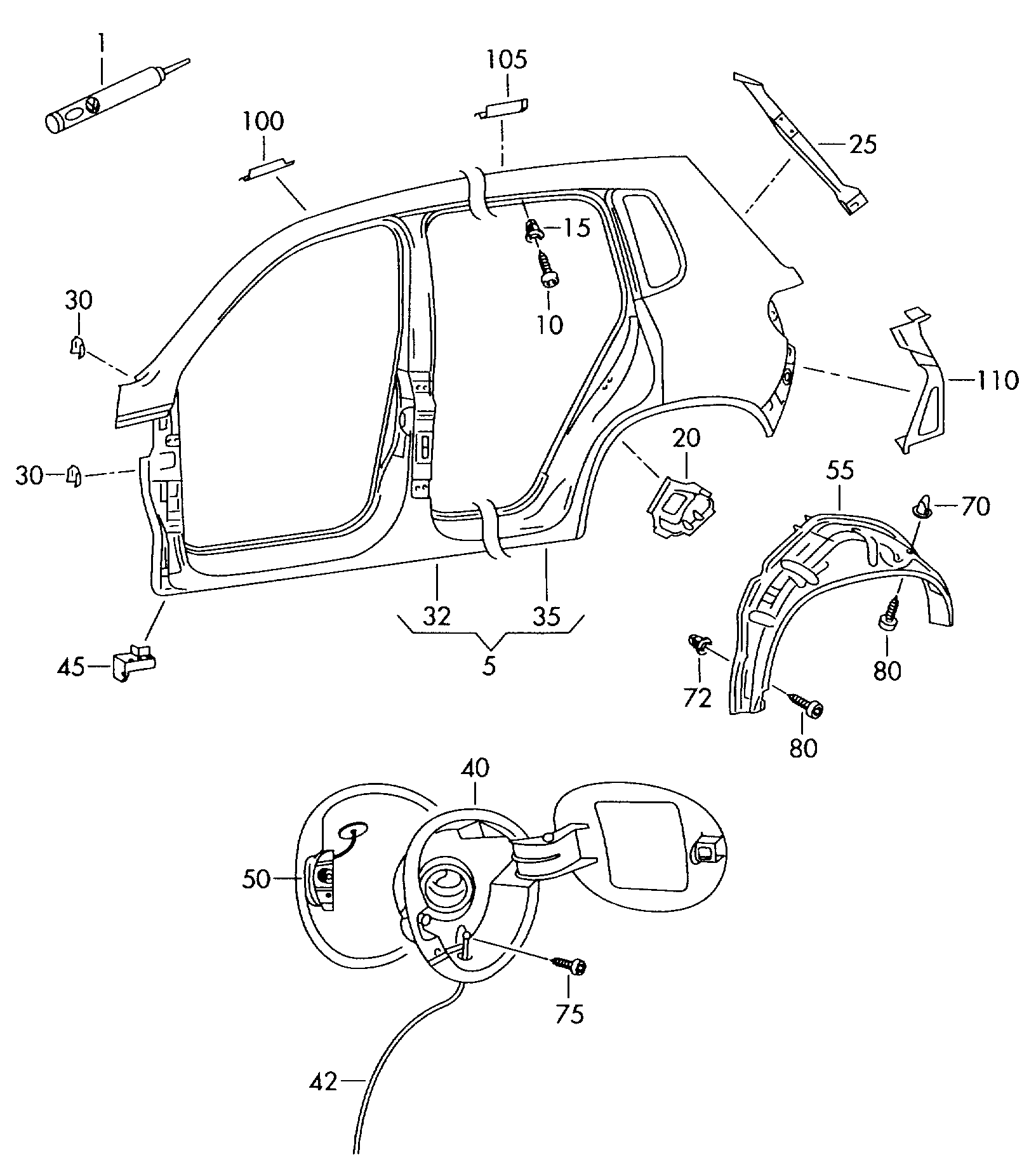

Scheme Sectional parts for the side section, fuel filler flap, wheel housing liner rear Volkswagen Tiguan 2010-2017 EUR
