Sectional parts for the side section, fuel filler flap, wheel housing liner, plastic rear Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
-	800981	Sheet metal plate 200X1500X0,8	999	Next
-	000800981A	Sheet metal plate 300X1500X0,8	999	Next
-	000800981B	Sheet metal plate 500X1500X0,8	999	Next
-	000800981C	Sheet metal plate 800X1500X0,8	999	Next
1	5M0810131	Securing bracket for fender	999	Next
1	5M0810132	Securing bracket for fender	999	Next
3	5M0809611	Reinforcement for c-pillar	999	Next
3	5M0809613	Reinforcement for c-pillar also use: 1K4 809 237	999	Next
3	5M0809612	Reinforcement for c-pillar	999	Next
3	5M0809614	Reinforcement for c-pillar also use: 1K4 809 237	999	Next
-	1K4809237	Threaded plate M8	999	Next
4	5M0809641	Sealing channel	999	Next
4	5M0809642	Sealing channel	999	Next
5	5M0809665	Reinforcement for gas struts	999	Next
5	5M0809666	Reinforcement for gas struts	999	Next
9	5M0810415	Filler plate for side member	999	Next
9	5M0810416	Filler plate for side member	999	Next
11	5M0809835	Sectional part - pillar a with frame member	999	Next
11	5M0809836	Sectional part - pillar a with frame member	999	Next
15	5M0809605B	Side part	999	Next
15	5M0809605B	Side part	999	Next
15	5M0809606B	Side part	999	Next
15	5M0809606B	Side part	999	Next
17	5M0809843	Sectional part - side panel frame	999	Next
17	5M0809844	Sectional part - side panel frame	999	Next
-	D180KD3A2	2 pack body adhesive adhesives and sealing compound	999	Next
-	D180003M2	2 pack body adhesive adhesives and sealing compound	999	Next
25	5M0809857C	Fuel filler flap	999	Next
25	5M0809857CGRU	Fuel filler flap primed	999	Next
25	5M0809857B	Fuel filler flap	999	Next
25	5M0809857BGRU	Fuel filler flap primed	999	Next
27	1J0809931	Spring fuel filler flap	999	Next
29	1K0809937	Hose limit stop cup	999	Next
29	3AA809937	Hose limit stop cup 555 MM	999	Next
31	5M0810773	Throttle control element fuel filler flap	999	Next
33	5M0810899	Guide sleeve	999	Next
35	3B0810911A	O-ring	999	Next
37	5K0810971C	Wheel housing liner	999	Next
37	5K0810972D	Wheel housing liner	999	Next
39	6Q0860137A	Sealing plug	999	Next
50	N10354602	Hexagon socket head panel bolt 5X16	999	Next
52	N10516801	Expanding nut 5X14,4	999	Next
54	N90833801	Expanding nut 4,8	999	Next
56	N90918701	Hexagon socket head panel bolt 4X12	999	Next
58	N91038901	Rivetted cap nut M6/0,5-3	999	Next

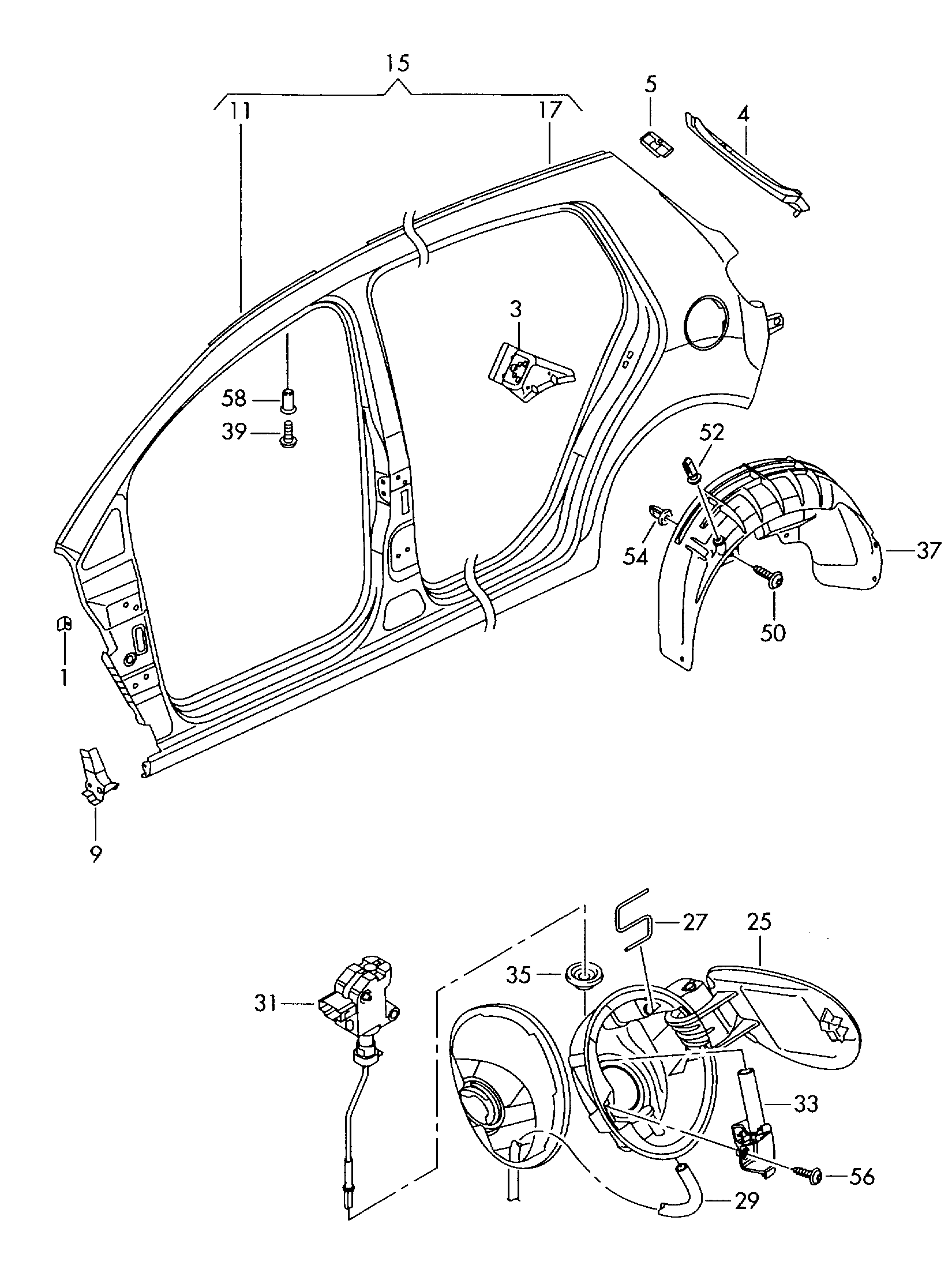

Scheme Sectional parts for the side section, fuel filler flap, wheel housing liner, plastic rear Volkswagen Golf Plus 2012-2014 EUR
