Sectional part side panel, wheel housing liner, plastic flap for fuel filler with collecting tray outer Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	800981	Sheet metal plate 200X1500X0,8	999	Next
1	000800981A	Sheet metal plate 300X1500X0,8	999	Next
1	000800981B	Sheet metal plate 500X1500X0,8	999	Next
1	000800981C	Sheet metal plate 800X1500X0,8	999	Next
5	D180KD3A2	2 pack body adhesive	999	Next
5	D506KD1A3	2 pk fill foam	999	Next
7	WHT002493A	Sealing plug F 3C9545 000 M6.0X10.5X12.6	999	Next
9	1K0809237	Threaded plate	999	Next
15	3C8809605	Side part	999	Next
15	3C8809606	Side part	999	Next
-	D381ZN1A2	Zink foil, self adhesive 'order qty. 10' body repair miscellaneous 117X171MM	999	Next
17	3C8809613	Reinforcement for c-pillar	999	Next
17	3C8809614	Reinforcement for c-pillar	999	Next
19	3C8809641	Sealing channel	999	Next
19	3C8809642	Sealing channel	999	Next
21	3C8809857C	Fuel filler flap	999	Next
21	3C8809857CGRU	Fuel filler flap primed	999	Next
21	3C8809857D	Fuel filler flap	999	Next
21	3C8809857DGRU	Fuel filler flap primed	999	Next
21	3C8809857E	Fuel filler flap	999	Next
21	3C8809857EGRU	Fuel filler flap primed	999	Next
25	1J0809931	Spring fuel filler flap	999	Next
27	3D0809937B	Hose limit stop cup 850MM	999	Next
30	3C8810333	Bracket for fender	999	Next
30	3C8810334	Bracket for fender	999	Next
33	3C0810379	Bracket for fender	999	Next
33	3C0810380	Bracket for fender	999	Next
35	3C0810423	Bracket for fender	999	Next
37	3C8810773A	Throttle control element fuel filler flap	999	Next
37	3C8810773	Throttle control element fuel filler flap	999	Next
40	3C8810825	Reinforcement roof carrier	999	Next
40	3C8810826	Reinforcement roof carrier	999	Next
43	3C8810827	Reinforcement roof carrier	999	Next
43	3C8810828	Reinforcement roof carrier	999	Next
45	3C8810899B	Guide sleeve	999	Next
45	3C8810899A	Guide sleeve	999	Next
47	3B0810911A	O-ring	999	Next
50	3C8810971	Wheel housing liner	999	Next
50	3C8810971B	Wheel housing liner modify in workshop	999	Next
50	3C8810972	Wheel housing liner	999	Next
50	3C8810972B	Wheel housing liner modify in workshop	999	Next
50	3C8810972A	Wheel housing liner	999	Next
55	N10516801	Expanding nut 5X14,4	999	Next
60	N90833801	Expanding nut 4,8	999	Next
62	N10415903	Oval hexagon socket head bolt 4X12	999	Next
62	N90918701	Hexagon socket head panel bolt 4X12	999	Next
65	N90974701	Hexagon socket head panel bolt 5X16	999	Next
70	N91101001	Rivetted cap nut F 3C9545 000 M6/0.53-ER	999	Next
70	8T0877449	Rivetted cap nut F 3C9545 001 M5X0,52,2	999	Next
100		Mounting for tail light	999	Next
150	3C8809835	Sectional part - side panel with b-pillar	999	Next
150	3C8809836	Sectional part - side panel with b-pillar	999	Next
155	3C8809843	Sectional part - side panel	999	Next
155	3C8809844	Sectional part - side panel	999	Next

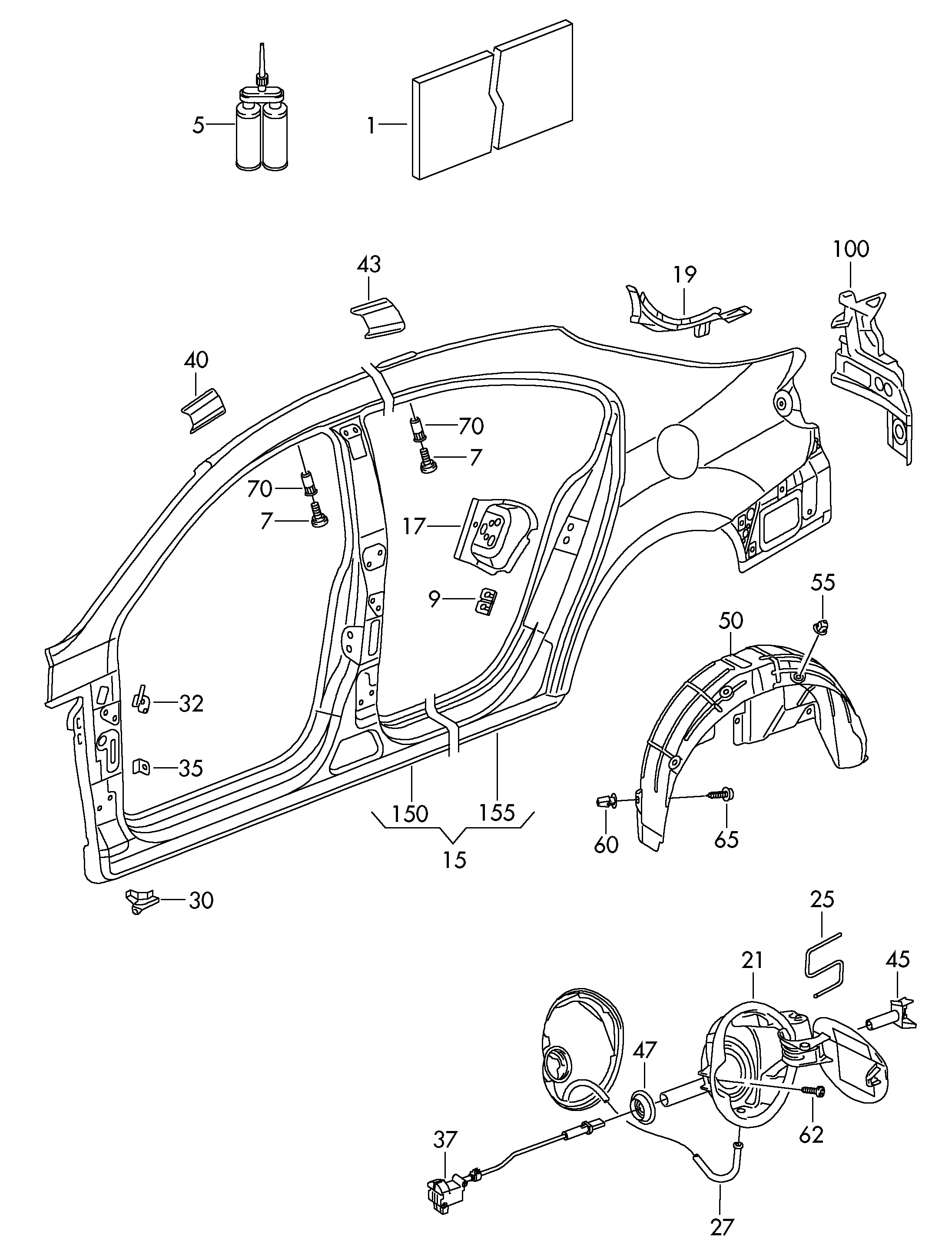

Scheme Sectional part side panel, wheel housing liner, plastic flap for fuel filler with collecting tray outer Volkswagen Passat CC Coupe 2009-2012 EUR
