Secondary air pump 1.6 ltr. petrol eng.+, BSE, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06A959253E	Secondary air pump	999	Next
2	06A906615L	Retainer for pump	999	Next
3	1K0131149C	Connecting hose	999	Next
4	06A131127L	Connecting hose	999	Next
5	06A133567A	Stop buffer	999	Next
6	N91082901	Hexagon socket flat head bolt 8X14	999	Next
7	N01100636	Hexagon nut M6	999	Next
8	06A131351F	Secondary air valve	999	Next
9	06A131120A	Seal	999	Next
10	06A131166E	Adapter use if required: 06A 131 120 F	999	Next
11	N10582103	Hexagon socket flat head bolt M6X40	999	Next
12	4A0820199	Double cable tie 7X213/140MM	999	Next
13	3D0971838N	Cable ties 4,5X200	999	Next
14	06A131120F	Seal	999	Next
15	N10423903	Socket head bolt with inner multipoint head M6X60	999	Next
15	N10323104	Socket head bolt with inner multipoint head M6X20	999	Next
16		Elbow	999	Next

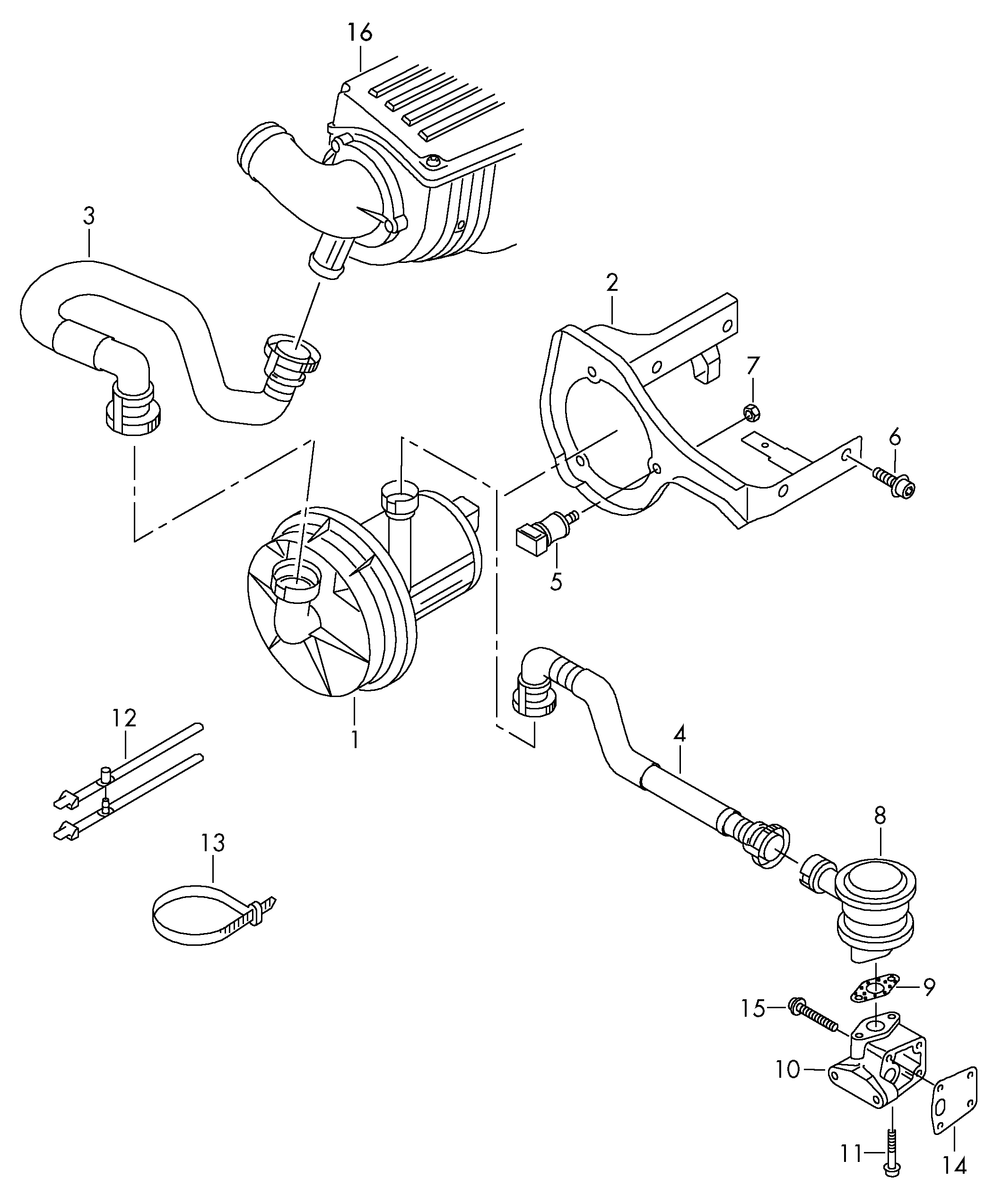

Scheme Secondary air pump 1.6 ltr. petrol eng.+, BSE, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR
