Seat and backrest, head restraint right front Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RF882026F	Seat and backrest frame with height adjustment	999	Next
2	6RU881705	Wire mat	999	Next
3	6RU882521B	Wire mat	999	Next
4	6RU882390	Adjuster (height adjustment)	999	Next
10	6RF881092	Operating lever for height adjustment	999	Next
11	N10653801	Hexagon socket head bolt M5X8.0	999	Next
12	1K0881449	Retaining clip	999	Next
13	6RF882252	Handle for seat height adjust.	999	Next
13	6RF88225282V	Handle for seat height adjust. titan black -BY, CH	999	Next
14	6RU881606	Handle for backrest release	999	Next
14	6RU88160682V	Handle for backrest release titan black -BY, CH	999	Next
15	6RU881469	Cover cap	999	Next
15	6RU88146982V	Cover cap titan black -BY, CH	999	Next
16	N0152612	Clip 20X1,8	999	Next
18	N90804901	Hexagon socket head collared bolt, thread forming M5GFX12	999	Next
19	6RU881560B	Retaining bar	999	Next
20	6RF881318B	Seat frame trim for seat frame with height adjustment	999	Next
20	6RF881318B82V	Seat frame trim for seat frame with height adjustment titan black -BY, CH	999	Next
21	6RU881480	Trim with no holes	999	Next
21	6RU88148082V	Trim with no holes titan black -BY, CH	999	Next
22	N10671501	Oval hexagon socket head bolt M4X16	999	Next
23	N90944603	Oval hexagon socket head bolt M5X12	999	Next
25	5J7881477	Cover for guide rail	999	Next
25	5J78814779B9	Cover for guide rail satin black	999	Next
26	N90892101	Socket head bolt with inner multipoint head M8X28	999	Next
31	1K0881920AD	Guide with push button for adjustable head restraint	999	Next
31	1K0881920AD82V	Guide with push button for adjustable head restraint titan black -BY, CH	999	Next
32	1K0881920AE	Guide for head restraint, adjustable	999	Next
32	1K0881920AE82V	Guide for head restraint, adjustable titan black -BY, CH	999	Next
35	6RU881901	Head restraint with cover, adjustable (cloth)	999	Next
35	6RU88190183V	Head restraint with cover, adjustable (cloth) titan black -BY, CH	999	Next
40	6RH881406D	Seat covering (fabric)	999	Next
40	6RH881406DDSR	Seat covering (fabric) titan black -CH	999	Next
40	6RH881406	Seat covering (fabric)	999	Next
40	6RH881406WMT	Seat covering (fabric) titan black -BY	999	Next
40	6RH881406WMT	Titan black -BY	999	Next
40	6RH881406C	Seat covering (fabric)	999	Next
40	6RH881406CWMT	Seat covering (fabric) titan black -BY	999	Next
40	6RH881406B	Seat covering (fabric)	999	Next
40	6RH881406BDWW	Seat covering (fabric) titanium black/artgrey -CH	999	Next
40	6RH881406A	Seat covering (fabric)	999	Next
40	6RH881406AGAB	Seat covering (fabric) titanium black/artgrey -CH	999	Next
41	6RU881775	Padding for backrest	999	Next
41	6RH881775B	Padding for backrest	999	Next
41	6RU881776	Padding for backrest	999	Next
41	6RH881776A	Padding for backrest	999	Next
50	6RU881375	Seat padding	999	Next
50	6RU881375D	Seat padding	999	Next
51	6RF881805B	Backrest cover (fabric)	999	Next
51	6RF881805BWMT	Backrest cover (fabric) titan black -BY	999	Next
51	6RH881805B	Backrest cover (fabric)	999	Next
51	6RH881805BGAB	Backrest cover (fabric) titanium black/artgrey -CH	999	Next
51	6RH881805D	Backrest cover (fabric)	999	Next
51	6RH881805DDSR	Backrest cover (fabric) titan black -CH	999	Next
51	6RS881806A	Backrest cover (fabric) for models with side airbag	999	Next
51	6RS881806AWMT	Backrest cover (fabric) for models with side airbag titan black -BY	999	Next
51	6RH881806B	Backrest cover (fabric) for models with side airbag	999	Next
51	6RH881806BDWW	Backrest cover (fabric) for models with side airbag titanium black/artgrey -CH	999	Next
51	6RH881806C	Backrest cover (fabric) for models with side airbag	999	Next
51	6RH881806CDSR	Backrest cover (fabric) for models with side airbag titan black -CH	999	Next
52		Heater element-seat not for this model	999	Next
53		Backrest heater element not for this model	999	Next
55		Inlay for seat occupied sensor not for this model	999	Next
60		Belt latch	999	Next

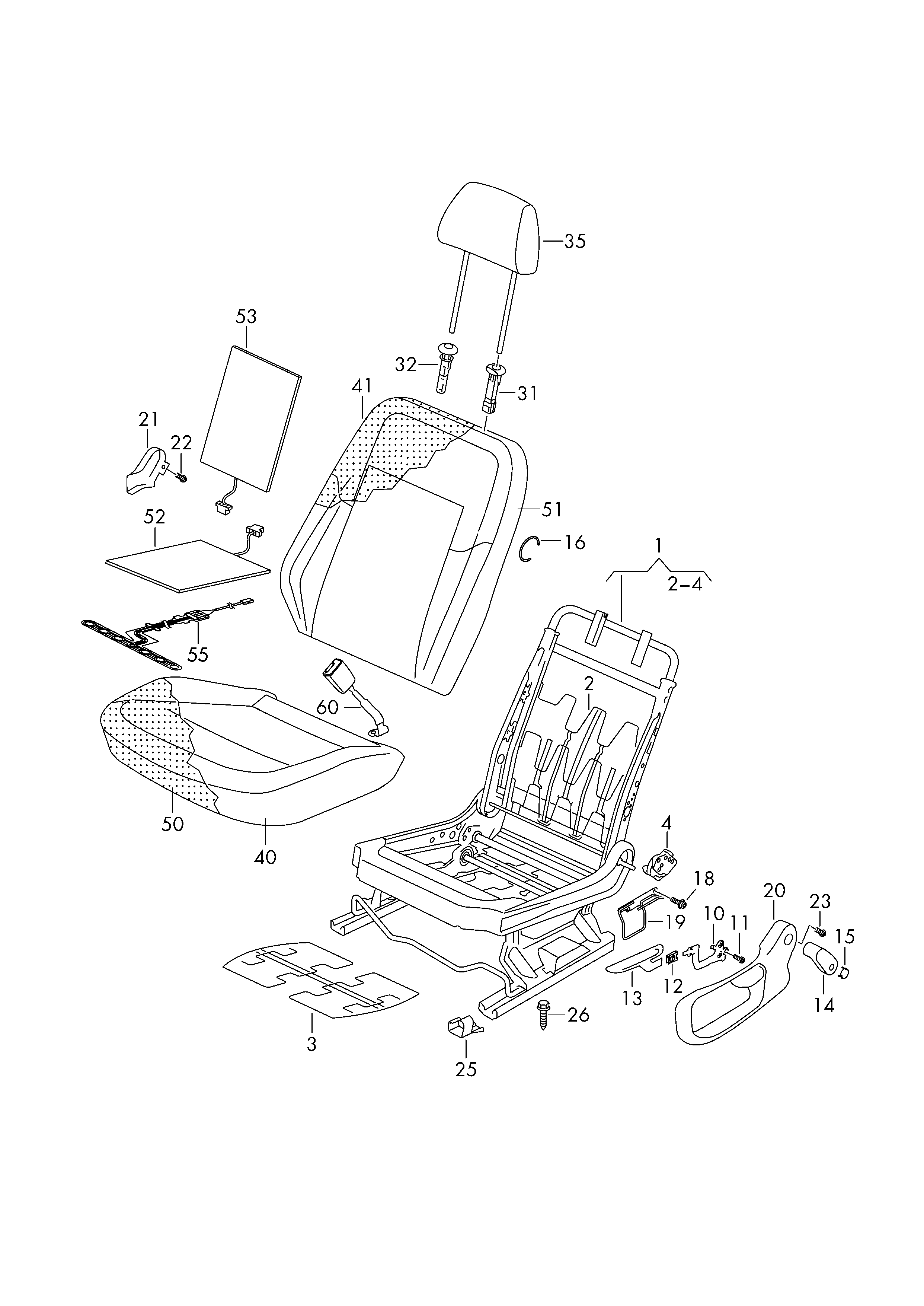

Scheme Seat and backrest, head restraint right front Volkswagen Polo 2013-2017 EUR
