Relay plate and relays, fasteners, fuse socket Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N1959503B	Retainer for control unit	999	Next
1	5N1959503C	Retainer for control unit	999	Next
1	1K2971262Q	Retainer for control unit	999	Next
1	1K2971037	Clip connection piece 1K2 971 262 Q	999	Next
1	N 90698801	Speed nut 4,2X16X12	999	Next
1	N 90917201	Hexagon socket flat head bolt M6X25	999	Next
1	7N0937503	Relay plate	999	Next
1	4H0951253A	Relay auxiliary heater relay location/code no.: J485 1/645	999	Next
1	4H0951253C	Relay fuel pump relay location/code no.: J49 2/646	999	Next
1	4H0951253A	Relay relay location/code no.: KL.15/J681 3/645	999	Next
1	4H0951253A	Relay heated rear window relay location/code no.: J9 4/645	999	Next
1	4H0951253C	Relay fuel pump additional coolant pump relay location/code no.: J17 J496 5/646	999	Next
1	4H0951253C	Relay headlight washer system relay location/code no.: J39 6A/646	999	Next
1	4H0951253C	Relay dual horn relay location/code no.: J4 6B/646	999	Next
1	4H0951253A	Relay auxiliary heater relay location/code no.: J359 7/645	999	Next
1	443937105	Thermal fuse	999	Next
1	4H0937527	Relay plate relay location: 44805	999	Next
1	7N0937503A	Relay plate	999	Next
1	4H0951253	Relay auxiliary heater relay location/code no.: J360 1/644	999	Next
1	4H0951253	Relay for relief relay x contact relay location/code no.: KL.75/J59 2/644	999	Next
1	4H0951253A	Relay relay - starter relay location/code no.: KL.50/J682 J906 3/645	999	Next
1	4H0951253C	Relay auxiliary heater fan relay location/code no.: J13 4/646	999	Next
1	7N0951253	Relay relay - starter for vehicles with start-stop relay location/code no.: J907 5/507	999	Next
1	7N0951253	Relay relay - starter for vehicles without start-stop operation relay location/code no.: KESSY 5/507	999	Next
1	4H0937528	Relay plate relay location: 1	999	Next
1	4H0937528A	Relay plate relay location: 2	999	Next
1	4H0937527	Relay plate relay location: 3	999	Next
1	4H1937527	Small relay carrier relay location: 4	999	Next
1	4H0937528C	Relay plate relay location	999	Next
1	4H0937528	Relay plate relay location: 5	999	Next
1	937615	Fuse holder jumper	999	Next
1	000937615B	Fuse holder jumper	999	Next
1	6R0937565	Cover for fuse holder	999	Next
1	5N0971845E	Holder for diagnosic plug and footwell light	999	Next
1	N 01713111	Flat fuse 19/2x5	999	Next
1	N 01713112	Flat fuse 19/2x5	999	Next
1	N 01713123	Flat fuse 19/2x5	999	Next
1	N 01713113	Flat fuse 19/2x5	999	Next
1	N 01713114	Flat fuse 19/2x5	999	Next
1	N 01713125	Flat fuse 19/2x5	999	Next
1	N 01713124	Flat fuse 19/2x5	999	Next
1	N 01713119	Flat fuse 19/2x5	999	Next
1	N 01713120	Flat fuse 19/2x5	999	Next
1	N 10261501	Flat fuse 10/2x2,8	999	Next
1	N 10261502	Flat fuse 10/2x2,8	999	Next
1	N 10261503	Flat fuse 10/2x2,8	999	Next
1	N 10473203	Hexagon socket oval head bolt (combi) M5X20	999	Next
1	8D0941802	Assembly tool for blade fuse	999	Next
1	443937105A	Thermal fuse	999	Next
1	1H0937530	Fuse box for flat fuses	999	Next
1	4A0937530	Fuse holder	999	Next

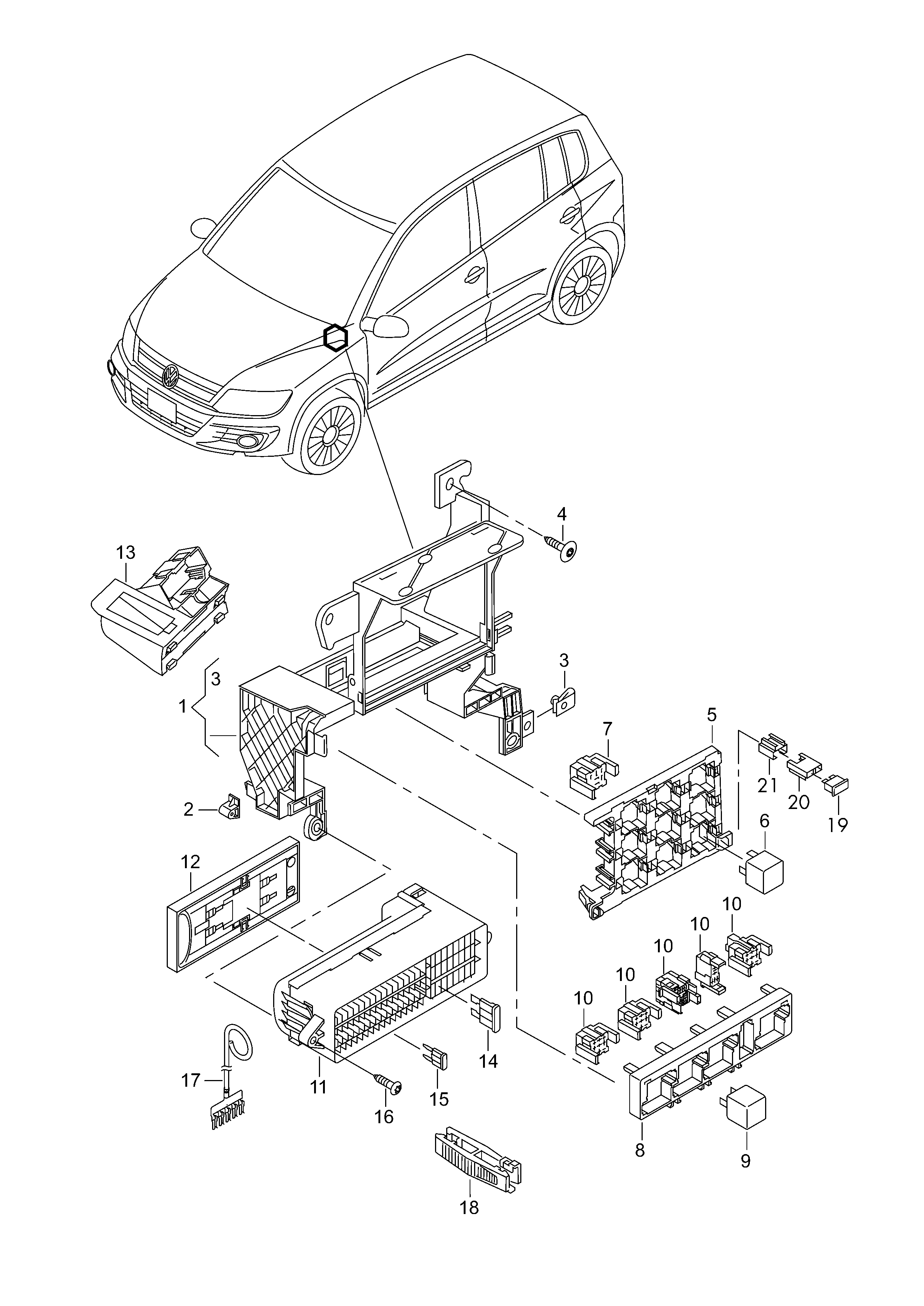

Scheme Relay plate and relays, fasteners, fuse socket Volkswagen Tiguan 2010-2017 EUR
