Rear panel, rear cross panel Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	800981	Sheet metal plate 200X1500X0,8	999	Next
1	000800981A	Sheet metal plate 300X1500X0,8	999	Next
1	000800981B	Sheet metal plate 500X1500X0,8	999	Next
1	000800981C	Sheet metal plate 800X1500X0,8	999	Next
2	D007600A1	Inox spray 400ML	999	Next
2	D007500A2	Zinc spray 400ML	999	Next
3	1J0804299	Lashing eye	999	Next
5	3C8813301	Cross panel	999	Next
-	N91017602	Weld screw 6X25	999	Next
7	3C5813311	Lock carrier	999	Next
8	3C8813327	Mounting for tail light	999	Next
8	3C8813328	Mounting for tail light	999	Next
9	3C8813331	Reinforcement for seal channel	999	Next
9	3C8813332	Reinforcement for seal channel	999	Next
10	3C8813391	Connecting plate	999	Next
10	3C8813392	Connecting plate	999	Next
11	3C8813393	Connecting plate	999	Next
11	3C8813394	Connecting plate	999	Next
12	3C8813501	Rear panel	999	Next
13	3C8813319	Mounting for tail light	999	Next
13	3C8813320	Mounting for tail light	999	Next
15	3C5813528	Reinforcement for back panel	999	Next
18	3C5813589	Bracket	999	Next
19	3C8813657	Bracket for tension spring	999	Next
19	3C8813658	Bracket for tension spring	999	Next

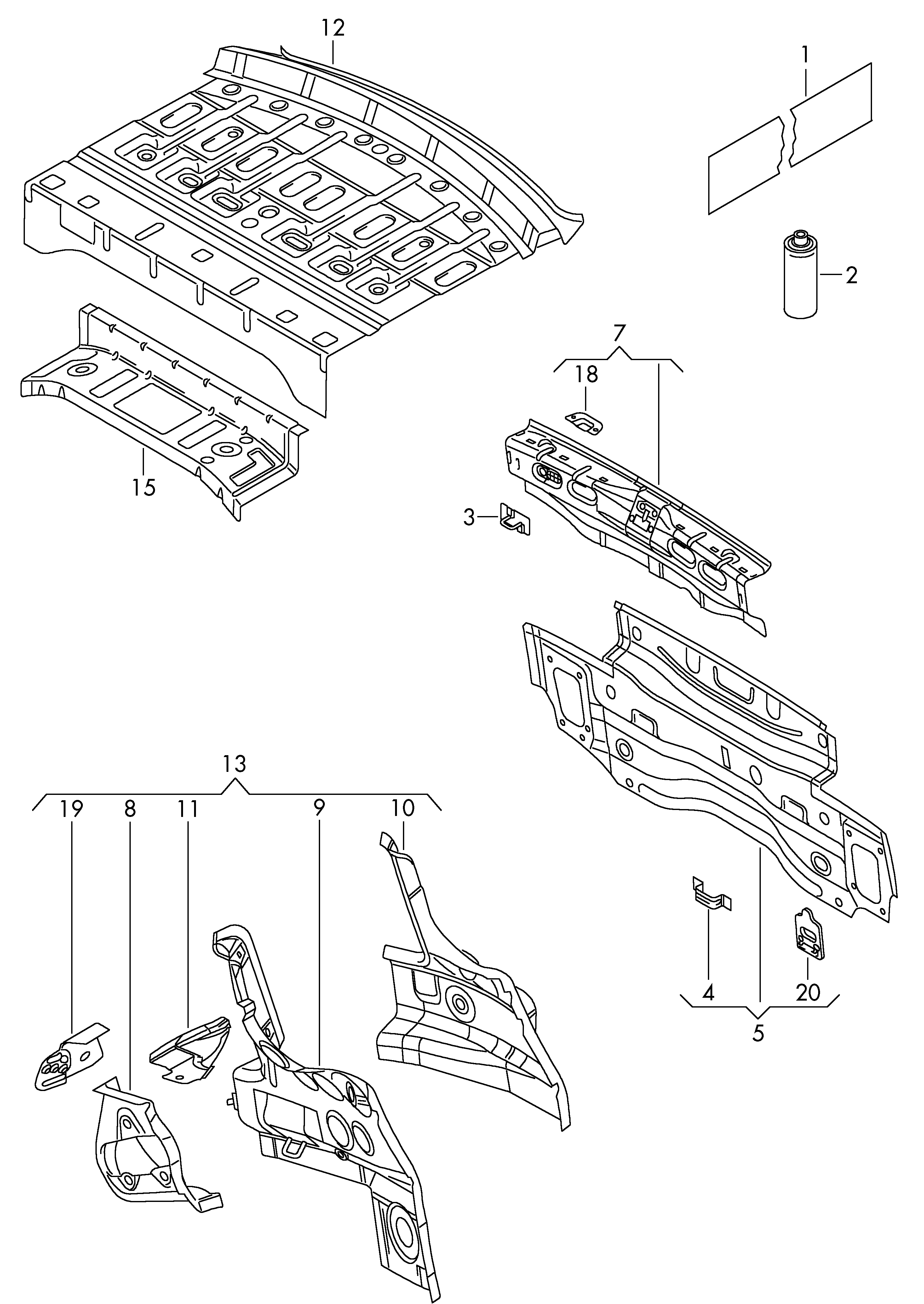

Scheme Rear panel, rear cross panel Volkswagen Passat CC Coupe 2009-2012 EUR
