Rear lid, lid lock Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C8827025C	Rear lid	999	Next
1	3C8827025B	Rear lid	999	Next
2	3C8853489C	Trim	999	Next
2	3C8853489C041	Trim satin black	999	Next
2	3C8853465	Trim	999	Next
2	3C8853465041	Trim satin black	999	Next
2	3C8853465A	Trim	999	Next
2	3C8853465A041	Trim satin black	999	Next
4	3C8827665	Tension spring	999	Next
5	3C8827301A	Lid hinge	999	Next
5	3C8827302A	Lid hinge	999	Next
6	3C8827525	Stop buffer	999	Next
7	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
8	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
9	3C8827550	Gas filled strut	999	Next
10	3C5827469E	Oper.mechan.with micro switch	999	Next
10	3C5827469EULM	Oper.mechan.with micro switch chrome colours/black	999	Next
10	3C5827469G	Oper.mechan.with micro switch	999	Next
10	3C5827469GULM	Oper.mechan.with micro switch chrome colours/black	999	Next
10	3C5827469J	Oper.mechan.with micro switch	999	Next
10	3C5827469JULM	Oper.mechan.with micro switch chrome colours/black	999	Next
10	5K0827469AF	Oper.mechan.with micro switch	999	Next
10	5K0827469AFULM	Oper.mechan.with micro switch chrome colours/black	999	Next
10	5K0827469AP	Oper.mechan.with micro switch	999	Next
10	5K0827469APULM	Oper.mechan.with micro switch chrome colours/black	999	Next
10	3AA827469	Oper.mechan.with micro switch	999	Next
10	3AA827469FXC	Oper.mechan.with micro switch chrome colours/black	999	Next
10	3C8827469B	Oper.mechan.with micro switch	999	Next
10	3C8827469BFXC	Oper.mechan.with micro switch chrome colours/black	999	Next
12	1K0827634	Seal	999	Next
13	N10569501	Round-head screw with inner hexagon socket head M5X16	999	Next
15	3C8827435A	Bracket for gas filled strut	999	Next
18	5K0853630B	Vw emblem	999	Next
18	5K0853630BULM	Vw emblem chrome colours/black	999	Next
20	3C8827861A	Drain hose	999	Next
21	3C8827713B	Bungs 9,3	999	Next
22	4F5827505D	Lid lock	999	Next
23	3C5827520B	Cover - lock	999	Next
23	3C5827520B9B9	Cover - lock satin black	999	Next
24	N01508210	Hexagon collar nut M6	999	Next
26	3C8827531B	Lid lock cable	999	Next
27	3C5827691E	Handle actuator	999	Next
27	3C5827691E9B9	Handle actuator satin black	999	Next
27	3C5827691D	Handle actuator	999	Next
27	3C5827691D9B9	Handle actuator satin black	999	Next
29	3C5827249	Stop buffer, adjustable	999	Next
30	3C5827373A	Stop	999	Next
33	1K5827507	Lock striker	999	Next
34	N90744805	Countersunk multi-point socket head bolt M8X20	999	Next
35	3C8827705A	Seal	999	Next
35	3C8827705A5AP	Seal black	999	Next
35	3C8827705	Seal	999	Next
35	3C88277055AP	Seal black	999	Next
38	G052778A2	Lock cylinder grease spray 50ML	999	Next
40	D172090A2	1-pack ms adhesive 310ML	999	Next

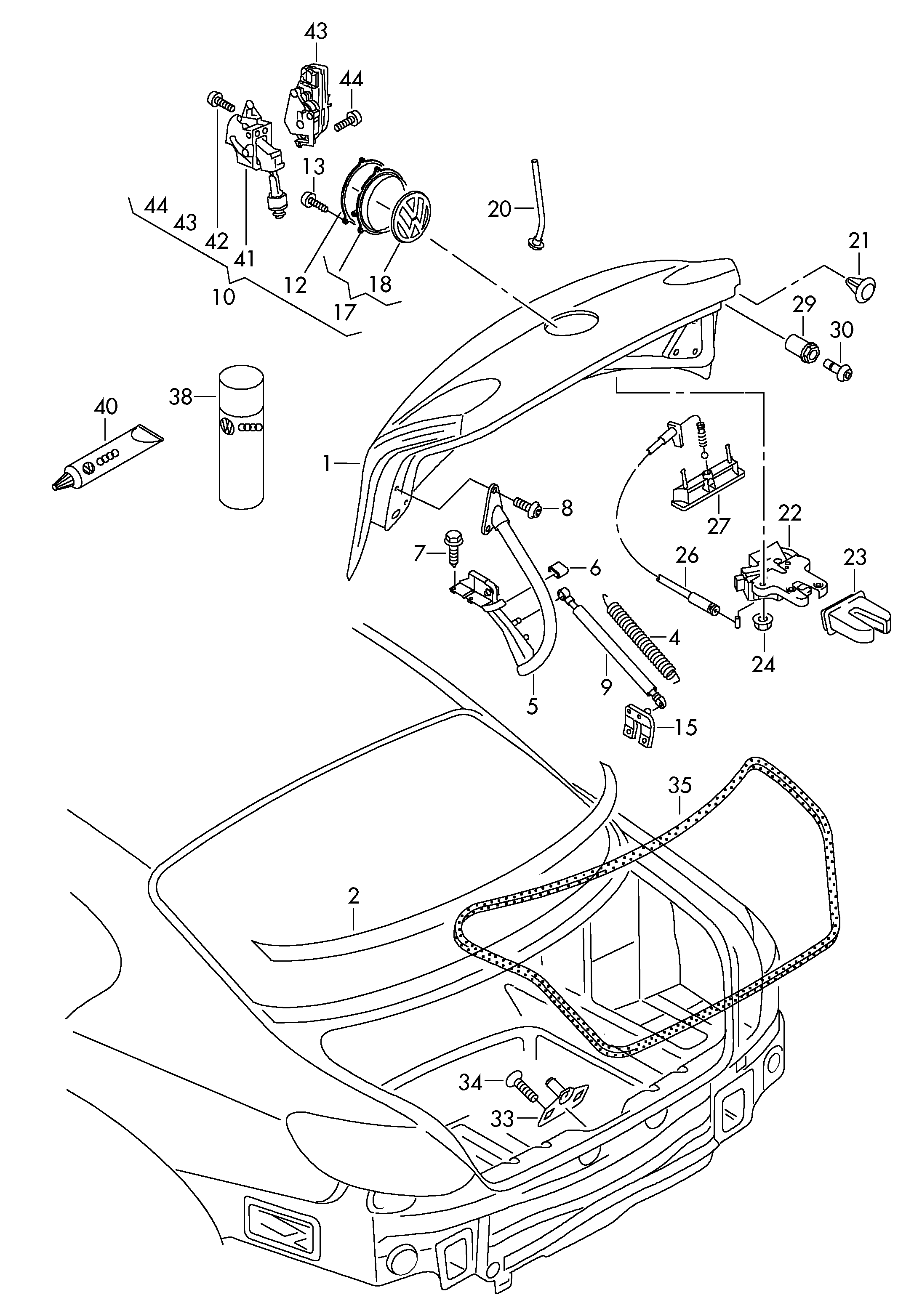

Scheme Rear lid, lid lock Volkswagen Passat CC Coupe 2009-2012 EUR
