Rear lid, lid lock Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M0827025J	Rear lid	999	Next
2	5M0827301	Lid hinge	999	Next
3	1J0827713	Bungs 9,3	999	Next
4	N90732203	Dodecagonal head bolt M6X18	999	Next
5	N01100840	Hexagon nut M8	999	Next
6	N90057701	Washer 8,4X21X2	999	Next
7	1T0827439A	Ball stud 10MM	999	Next
8	6X0827499F	Stop buffer, adjustable	999	Next
9	5M0827505E	Lid lock	999	Next
	5M0827505E9B9	Lid lock satin black	999	Next
11	N90931602	Socket head bolt with inner multipoint head M8X20	999	Next
12	1T0827517A	Striker plate	999	Next
13	N90840603	Locating bolt M8X12X23	999	Next
15	5M0827550A	Gas filled strut 485MM	999	Next
16		Cover cap not for this model	999	Next
22	5N0827566T	Push button for electric lid lock actuator	999	Next
22	5N0827566T	Push button for electric lid lock actuator	999	Next
22	5M0827566	Push button for electric lid lock actuator for vehicles with parking aid and reversing camera system	999	Next
22	5M0827566A	Push button for electric lid lock actuator for vehicles with parking aid and reversing camera system	999	Next
22	5M0827566	Push button for electric lid lock actuator for vehicles with parking aid and reversing camera system	999	Next
23	3C9827229C	Cover	999	Next
24	N01508210	Hexagon collar nut	999	Next
25	5M0827129	Cover	999	Next
26	N01508210	Hexagon collar nut M6	999	Next
28	8D0853419D	Packing, adhesive shorten if necessary 2,5MM	999	Next
29	N90766702	Rivetted cap nut M6X0,8-1	999	Next
29	N90766702	Rivetted cap nut M6X0,8-1	999	Next
29	N90766703	Rivetted cap nut M6X0,8-1	999	Next
29	N90766702	Rivetted cap nut M6X0,8-1	999	Next
30	5M0827705B	Seal	999	Next
30	5M0827705B9B9	Seal satin black	999	Next
31	1J0827713	Bungs 9,3	999	Next
32	6X0827951B	Bungs 45784	999	Next
33	N90766702	Rivetted cap nut M6X0,8-1	999	Next
34	G052778A2	Lock cylinder grease spray 50ML	999	Next
35		Bellows see illustration, item: 972-082,28	999	Next
37	1TD827211	Licence plate holder	999	Next
38	N90638102	Round hd. screw M6X12	999	Next
38	N10406504	Oval hexagon socket head bolt M6X12	999	Next
40	5M0853955C	Protective strip rear panel	999	Next
40	5M0853955C2ZZ	Protective strip rear panel high chrom	999	Next

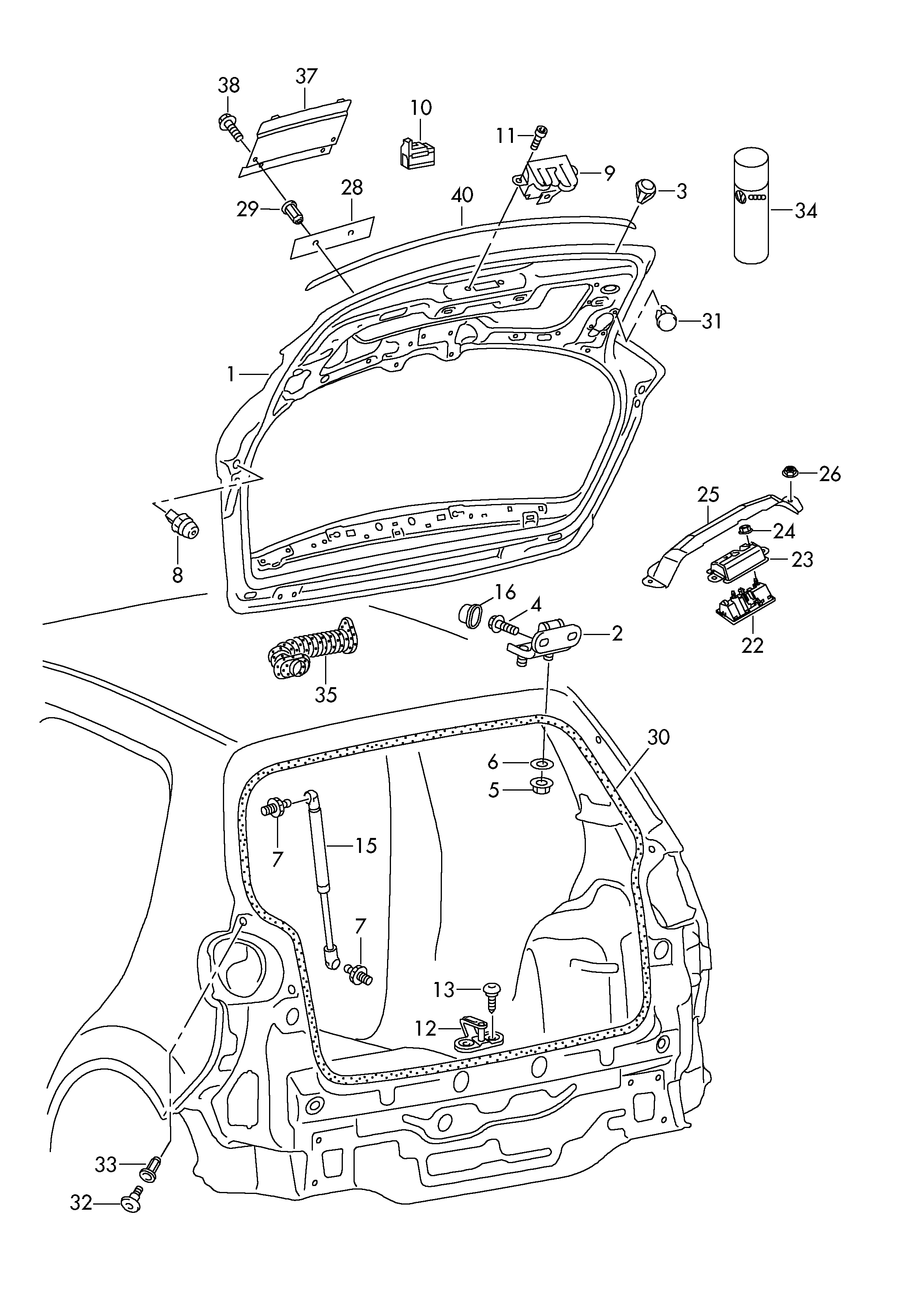

Scheme Rear lid, lid lock Volkswagen Golf Plus 2012-2014 EUR
