Parking aid Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C8919475	Control unit for parking aid F 3C9570 000	999	Next
1	3C8919475A	Control unit for parking aid, before 08.11.2010	999	Next
1	3AE919475	Control unit for parking aid, D 08.11.2010 and after	999	Next
3	3C0919275S	Sensor	999	Next
3	3C0919275SGRU	Sensor primed	999	Next
3	4H0919275	Sensor, before 31.10.2011	999	Next
3	4H0919275GRU	Sensor, before 31.10.2011 primed	999	Next
3	1S0919275	Sensor, D 01.11.2011 and after	999	Next
3	1S0919275GRU	Sensor, D 01.11.2011 and after primed	999	Next
5	3C8919491	Sensor bracket	999	Next
5	3C8919491GRU	Sensor bracket primed	999	Next
6	3C8919491A	Sensor bracket	999	Next
6	3C8919491AGRU	Sensor bracket primed	999	Next
7	3C8919503	Sensor bracket	999	Next
10	3C8919493	Sensor bracket	999	Next
11	3C8919493A	Sensor bracket	999	Next
14	3C8919494	Sensor bracket	999	Next
15	3C8919494A	Sensor bracket	999	Next
19	1T0919133C	O-ring	999	Next
19	1T0919133C9B9	O-ring satin black	999	Next
22	8E0919279	Warning buzzer	999	Next
23	N0385051	Spreader rivet 5X7,5	999	Next

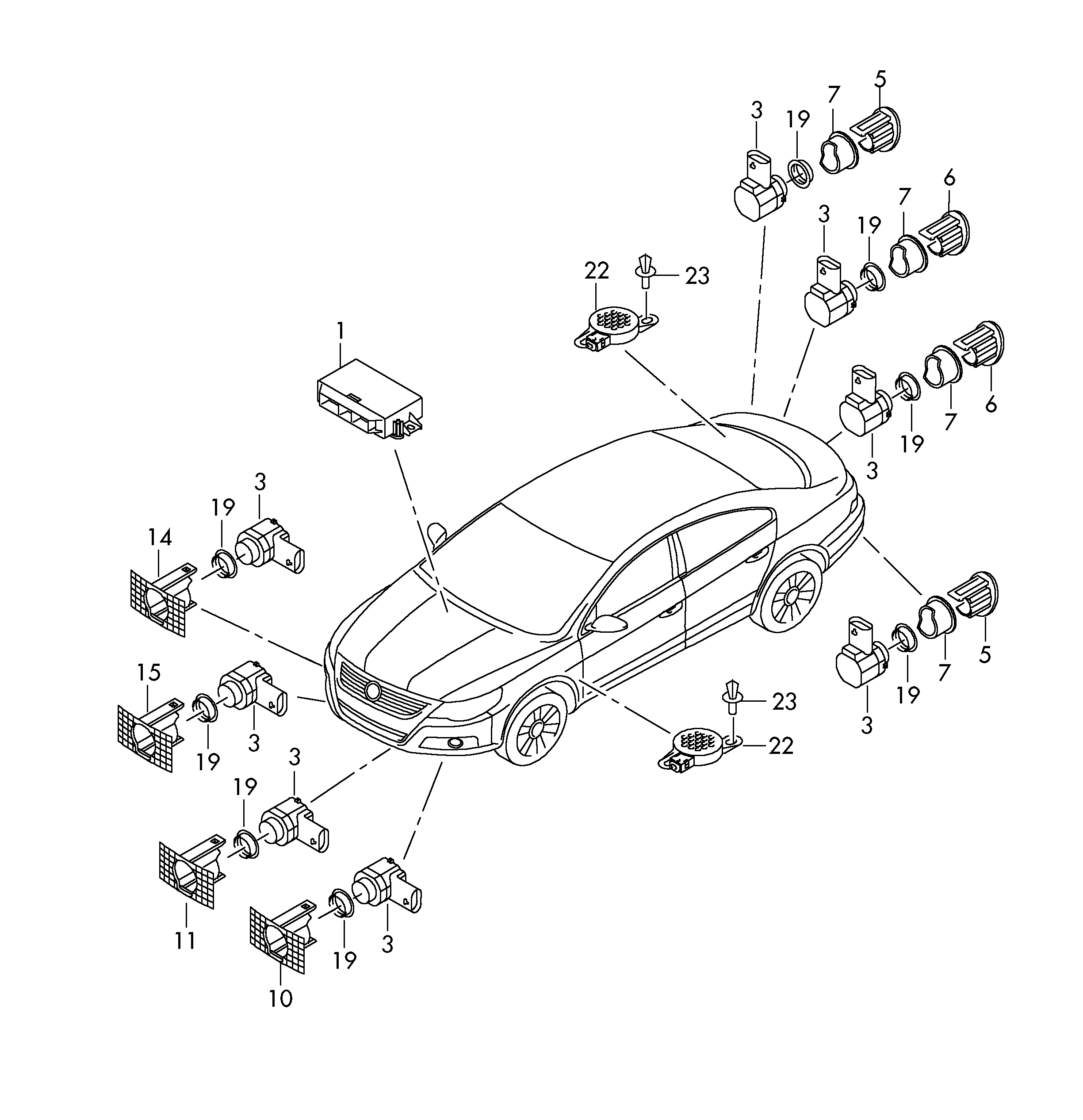

Scheme Parking aid Volkswagen Passat CC Coupe 2009-2012 EUR
