Parking aid, park steer assist Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	000915105DB	Battery with charge state indicator, filled and charged 44AH/220A	999	Next
1	JZW915105C	Battery with state of charge display, full and charged 'eco' economy 44AH/200A	999	Next
1	000915105DC	Battery with charge state indicator, filled and charged 51AH/280A	999	Next
1	000915105DE	Battery with charge state indicator, filled and charged 61AH/330A	999	Next
1	JZW915105	Battery with state of charge display, full and charged 'eco' economy 61AH/300A	999	Next
1	000915105DG	Battery with charge state indicator, filled and charged 72AH/380A	999	Next
1	JZW915105A	Battery with state of charge display, full and charged 'eco' economy 72AH/350A	999	Next
1	000915105CC	Battery, filled and charged (ABSORBENT GLASS MAT BATTERY)	999	Next
1	000915105EC	Battery, filled and charged (ENHANCED FLOODED BATTERY)	999	Next
2	7N0915429A	Cover cap	999	Next
3	915506	Bungs	999	Next
4	1K0915333H	Battery console	999	Next
4	1KD915333A	Battery console	999	Next
6	N90577001	Clamping washer 12X25,5	999	Next
7	N10482701	Hex collared bolt M6X35	999	Next
7A	N90009504	Washer for vehicles with liquid gas operation (lpg) 8,4X17X4	999	Next
8	N10109210	Hex collared bolt M8X30	999	Next
9	6X0959502A	Clamping strip for battery	999	Next
9	1J0803219	Clamping strip for battery	999	Next
9	5K0915447	Clamping strip for battery	999	Next
10		Corrugated pipe not for this model	999	Next
11	3C0915335	Trim for battery	999	Next
11	3C0915335	Trim for battery	999	Next
12	3C0915336A	Trim for battery	999	Next
12	1KD915336	Trim for battery	999	Next
13	3C0915443A	Cover for battery	999	Next
13	1KD915443	Cover for battery	999	Next
14	1K0915411	Protective battery casing with cover 44AH/220A 51AH/280A	999	Next
14	1K0915411A	Protective battery casing with cover 60AH/280A 61AH/330A	999	Next
14	1K0915411B	Protective battery casing with cover 72AH/380A	999	Next
15	1K0915418E	Battery protection cover 44AH/220A 51AH/280A	999	Next
15	1K0915418H	Battery protection cover 44AH/220A 51AH/280A	999	Next
15	1K0915418F	Battery protection cover 60AH/280A 61AH/330A	999	Next
15	1K0915418J	Battery protection cover 60AH/280A 61AH/330A	999	Next
15	1K0915418F	Battery protection cover 60AH/280A	999	Next
15	1K0915418J	Battery protection cover 60AH/280A	999	Next
15	1K0915418G	Battery protection cover 70AH/340A 72AH/380A	999	Next
5	1K0915325A	Heat insulation	999	Next
5	1K0915325B	Heat insulation	999	Next
11	3C0915335	Trim for battery	999	Next
12	3C0915336A	Trim for battery	999	Next
13	3C0915443A	Cover for battery	999	Next
15	1K0915418G	Battery protection cover	999	Next
16	5M0915411	Cover for battery	999	Next
17	1K0971813F	Cover cap	999	Next
17	1K0971813F9B9	Cover cap satin black	999	Next

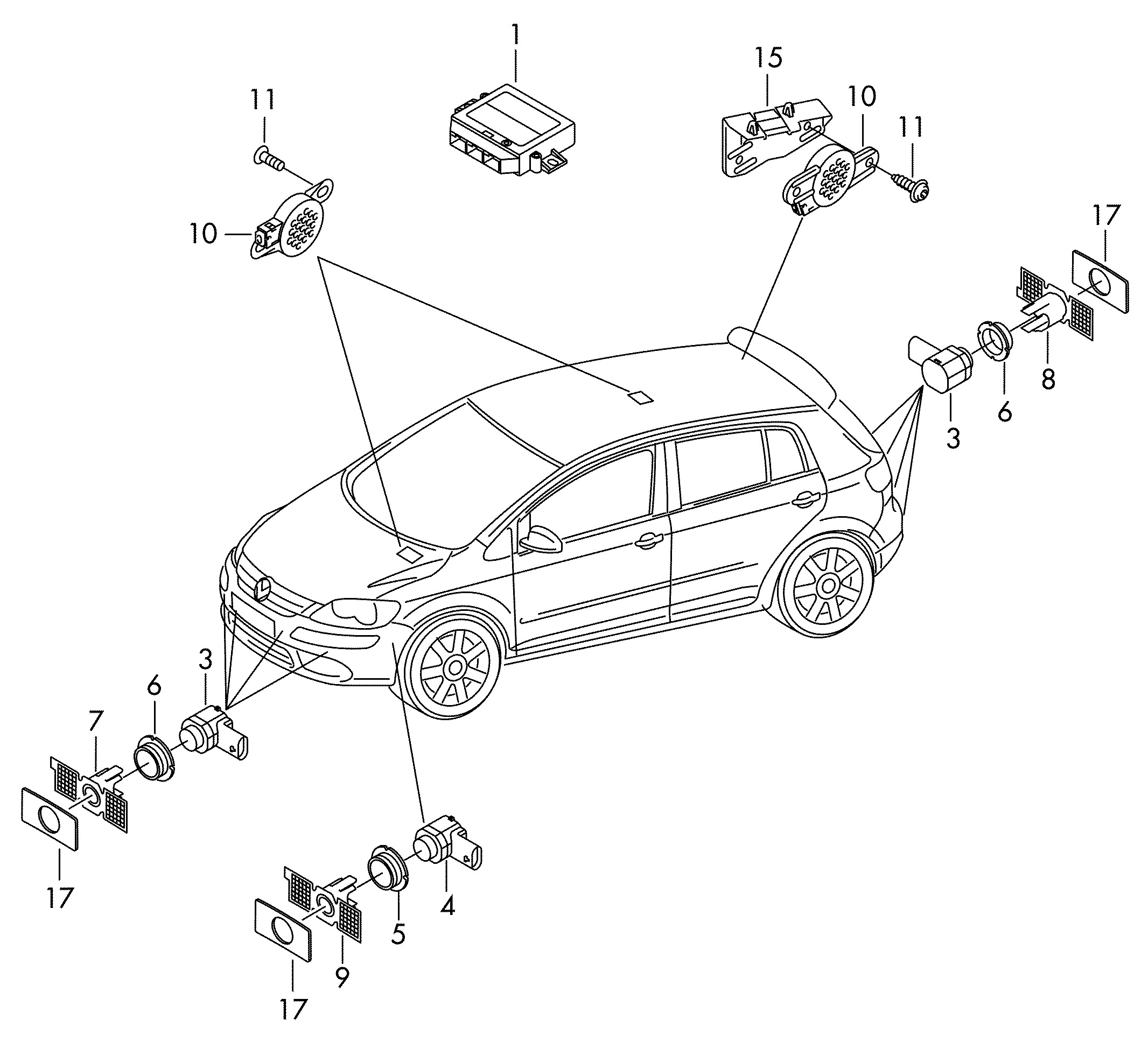

Scheme Parking aid, park steer assist Volkswagen Golf Plus 2012-2014 EUR
