Panorama sunroof Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C8877051	Glass cover with seal, before 21.06.2009	999	Next
1	3C8877051A	Glass cover with seal, D 22.06.2009 and after	999	Next
3		Seal included in position: 1	999	Next
4	3C8898056	1 set securing bolts M5X10	999	Next
5	D00920002	Primer for glass and paint 10ML	999	Next
6	3C8877789	Bellows, before 03.04.2011 521MM	999	Next
6	3C8877789A	Bellows, D 04.04.2011 and after 483MM	999	Next
7	D00940104	Cleaning solution 250ML	999	Next
8	3C8877781	Bellows	999	Next
8	3C8877782	Trim	999	Next
9	3C8877439	Seal	999	Next
10	3C8877423	Roof frame seal, before 02.10.2011	999	Next
10	3C8877423A	Roof frame seal, D 03.10.2011 and after	999	Next
12	3C8877209	Seal	999	Next
15	AMV195KD101	Adhesive 3G	999	Next

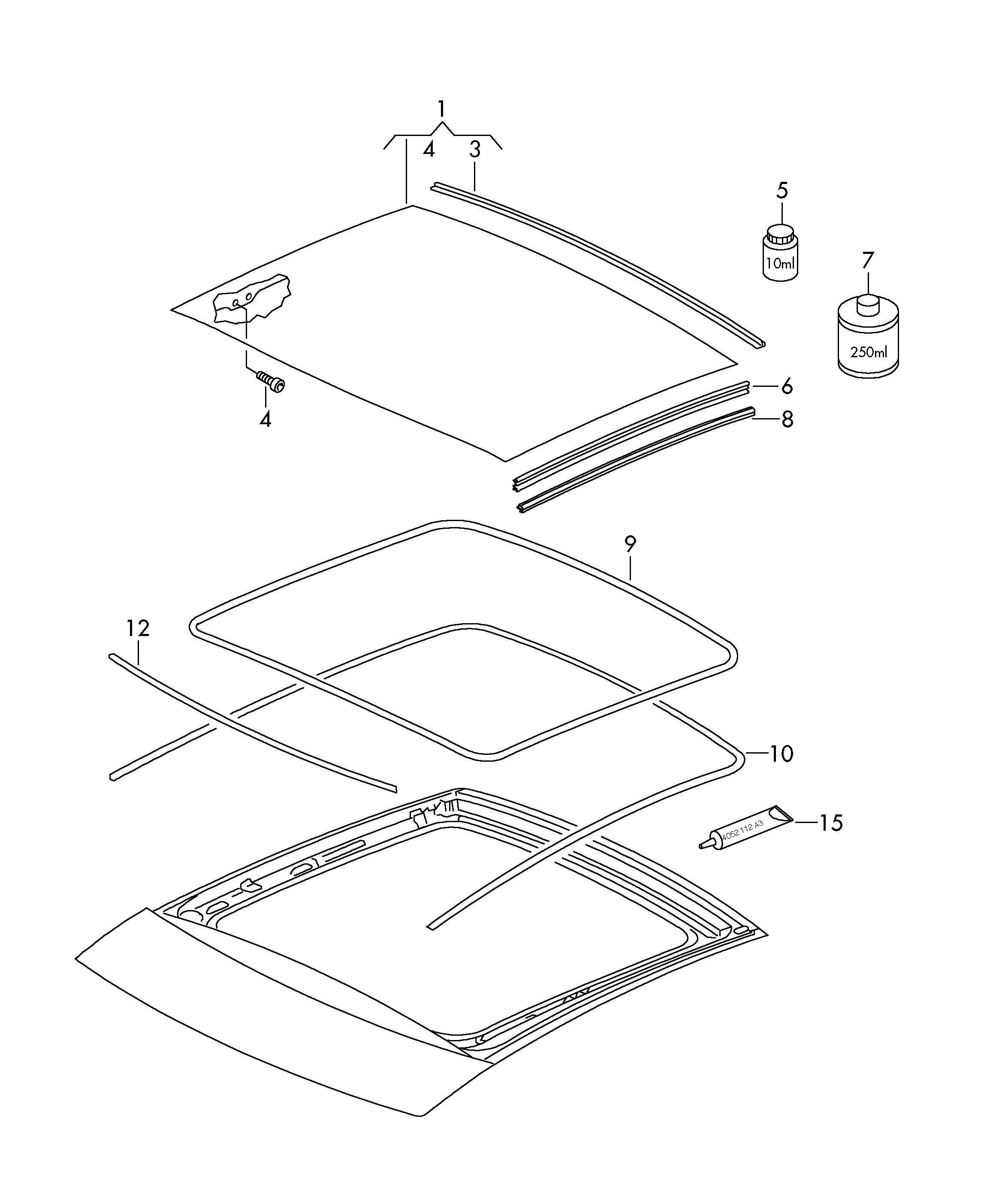

Scheme Panorama sunroof Volkswagen Passat CC Coupe 2009-2012 EUR
