Onboard supply control unit, diagnosis interface for data bus (gateway), central electrics, fuse box, relay carrier, relays Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1		Onboard supply control unit	999	Next
1A		Diagnosis interface for data bus (gateway)	999	Next
2	1K1937503	Relay plate	999	Next
2	1K2937503A	Relay plate	999	Next
3	1K0951253A	Relay relay location/code no.: KL15/460	999	Next
3	1K0951253A	Relay relay location/code no.: KL75/460	999	Next
4	1K0951253	Relay for horn relay location/code no.: HORN/449	999	Next
4	7M0951253C	Contact close relay windscreen washer system relay location/code no.: DWP-V/404	999	Next
4	3C8951253	Relay halogen fog lamp relay location/code no.: DWP-H/496	999	Next
4	1K0951253	Relay relay location/code no.: KL30/449	999	Next
5	8K0951253	Contact close relay for rear window, heated relay location/code no.: to be used for code no.: 40A HHZG/643 53	999	Next
6	8K0951253	Contact close relay auxiliary heater relay location/code no.: to be used for code no.: 40A 1/643 53	999	Next
6	7M0951253C	Contact close relay auxiliary heater relay location/code no.: 2.1/404	999	Next
6	7M0951253C	Contact close relay for fuel pump relay location/code no.: 3.1/404	999	Next
6	1K0951253	Relay for vehicles with auxiliary heater relay location/code no.: 3.2/449	999	Next
6	8K0951253	Contact close relay headlight washer system relay location/code no.: to be used for code no.: 40A 4/643 53	999	Next
6	8K0951253	Contact close relay relay location/code no.: to be used for code no.: KL.15 5/643 53	999	Next
6A	443937105B	Thermal fuse 15A	999	Next
6A	N01713112	Flat fuse 19/2x5	999	Next
7	3C1941397E	Bracket	999	Next
7	3C2941397C	Bracket RLKG	999	Next
8	N01028712	Hexagon bolt M6X16	999	Next
9	N90327504	Speed nut M6X23,4X14,2	999	Next
15	3C1941823	Fuse holder	999	Next
15	3C2941823	Fuse holder	999	Next
16	N01713111	Flat fuse 19/2x5	999	Next
16	N01713112	Flat fuse 19/2x5	999	Next
16	N01713123	Flat fuse 19/2x5	999	Next
16	N01713114	Flat fuse 19/2x5	999	Next
16	N01713124	Flat fuse 19/2x5	999	Next
16	N01713116	Flat fuse 19/2x5	999	Next
16	N01713117	Flat fuse 19/2x5	999	Next
16	N01713118	Flat fuse 19/2x5	999	Next
16	N01713119	Flat fuse 19/2x5	999	Next
16	N01713120	Flat fuse 19/2x5	999	Next
16	8L0998131	1 set of flat fuses	999	Next
17	N10261506	Flat fuse 10/2x2,8	999	Next
17	N10261501	Flat fuse 10/2x2,8	999	Next
17	N10261502	Flat fuse 10/2x2,8	999	Next
17	N10261503	Flat fuse 10/2x2,8	999	Next
17	N10261507	Flat fuse 10/2x2,8	999	Next
17	N10261508	Flat fuse 10/2x2,8	999	Next
18	8D0941802	Assembly tool for blade fuse	999	Next
19	N90807407	Hex socket oval head collared M5X18	999	Next
25	3C0941379A	Additional relay plate	999	Next
26	3C0951253	Relay for 2nd battery relay location/code no.: 7/478	999	Next
26	3C0951253A	Relay control unit for distance regulation relay location/code no.: 5/479	999	Next
26	8K0951253	Contact close relay anti-theft alarm system relay location/code no.: to be used for code no.: 40A /643 53+373	999	Next
27	3A0937501A	Fuse holder	999	Next
28	N10251902	Flat fuse 29/2x8 60A HELLBLAU	999	Next

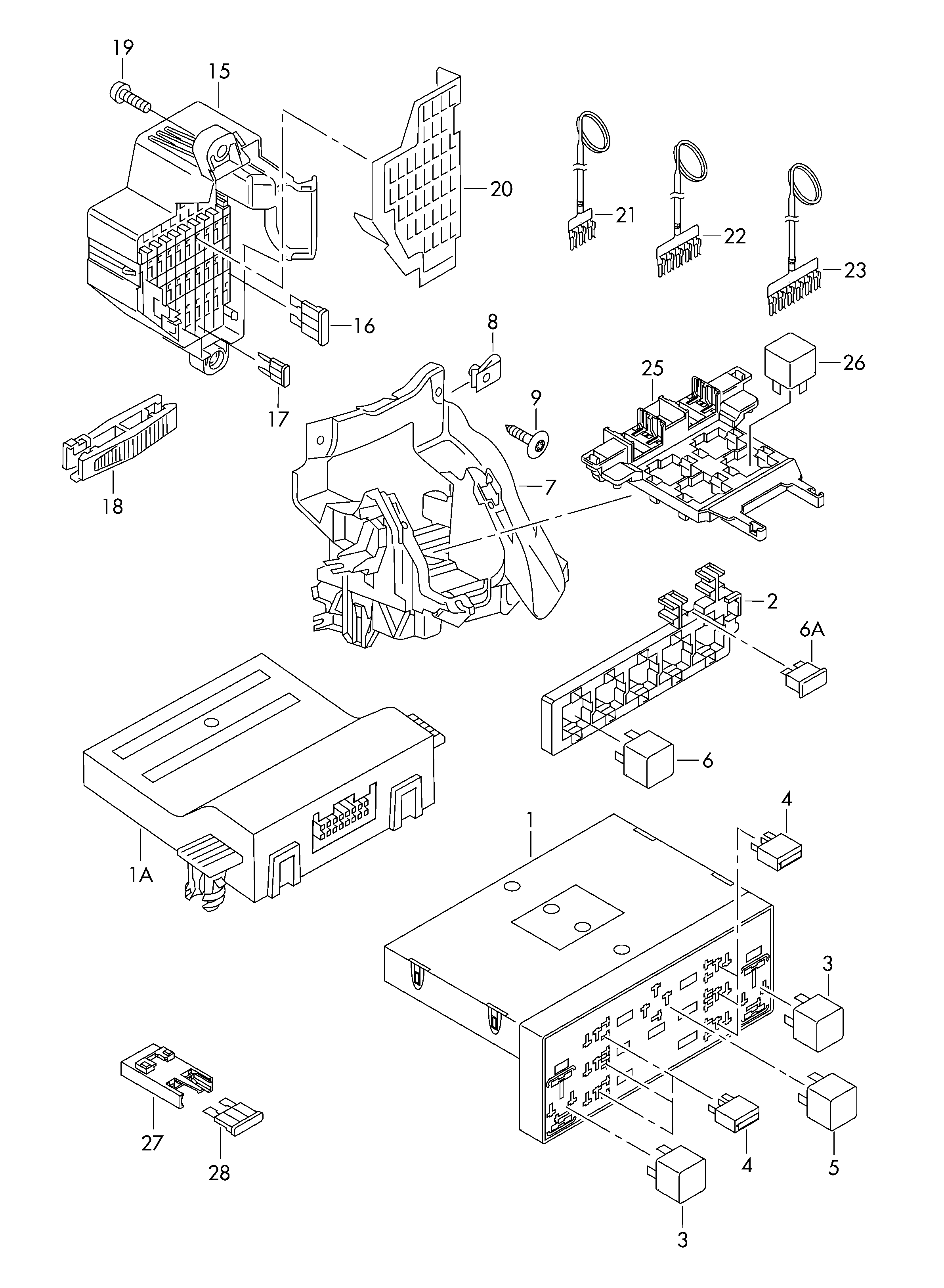

Scheme Onboard supply control unit, diagnosis interface for data bus (gateway), central electrics, fuse box, relay carrier, relays Volkswagen Passat CC Coupe 2009-2012 EUR
