Oil pump, oil filter, oil dipstick 1.6ltr. petrol engine+, CLSA Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C115105T	Oil pump	999	Next
2	03C115143	Centre sleeve 11,18X8,5	999	Next
3	03C115121N	Chain sprocket Z=30	999	Next
4	N90365901	Oval hexagon socket head bolt M8X22	999	Next
5	03C115251AE	Suction line	999	Next
6	N0282222	O-ring 20X3,15	999	Next
7	N10124408	Hexagon socket head bolt (combi) M6X20	999	Next
8		Chain sprocket	999	Next
9	03C115230C	Drive chain	999	Next
10	03C109507AE	Chain tensioner	999	Next
11	N90853903	Socket head bolt with inner multipoint head M7X50	999	Next
12	03C103669H	Cover	999	Next
13	03C103714B	Grub screw M6X12	999	Next
15	03C115561D	Oil filter	999	Next
15	03C115561H	Oil filter	999	Next
16	03C115721D	Threaded union	999	Next
16	03C115721A	Threaded union	999	Next
20	03C115611AA	Oil dipstick	999	Next
21	03C115331A	O-ring 4,65X1,78	999	Next
22		Cylinder head cover	999	Next

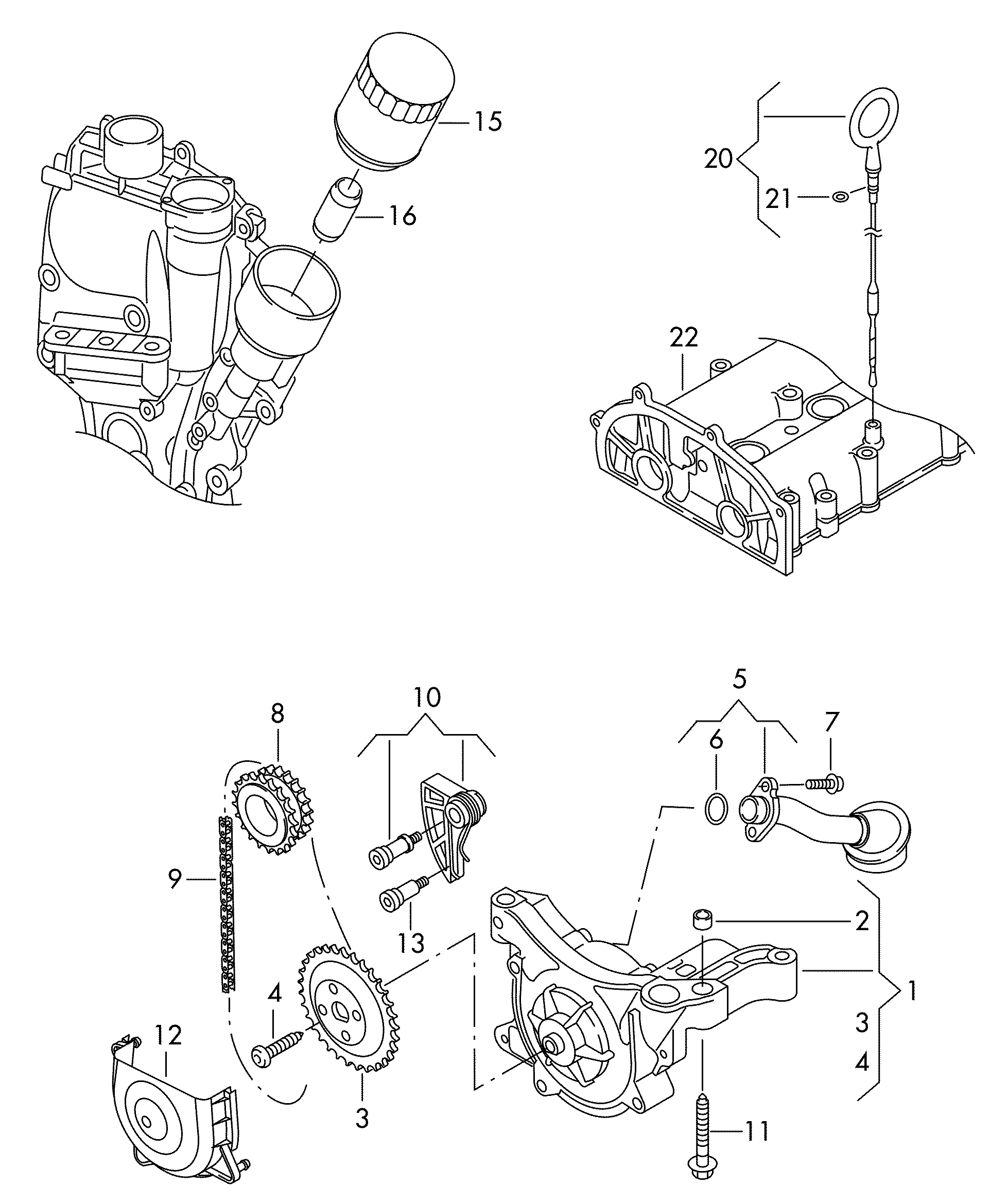

Scheme Oil pump, oil filter, oil dipstick 1.6ltr. petrol engine+, CLSA Volkswagen Polo 2013-2017 EUR
