Oil pump, oil filter, oil dipstick 1.4ltr. petrol eng.+, CGGA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	036115105D	Oil pump	999	Next
2	036103085H	Shaft oil seal 42X6	999	Next
3	N90842402	Hexagon head bolt (combi) M6X22	999	Next
4	032103161K	Seal	999	Next
5	036115251AJ	Suction line	999	Next
5	036115251AK	Suction line	999	Next
6	N0902619	Hexagon head bolt (combi) M6X20	999	Next
7	59115721	Threaded union	999	Next
8	030115561AN	Oil filter	999	Next
9	030115611R	Oil dipstick	999	Next
10	30115444	O-ring 6,16X2,35	999	Next
11	036115629BA	Tube for oil dipstick	999	Next
11	036115629BB	Tube for oil dipstick	999	Next
12	N90032204	O-ring 7,3X2,4	999	Next
13	N01471015	Socket head bolt with hex. socket head, self-locking M8X20	999	Next
14	030115636A	Guide	999	Next

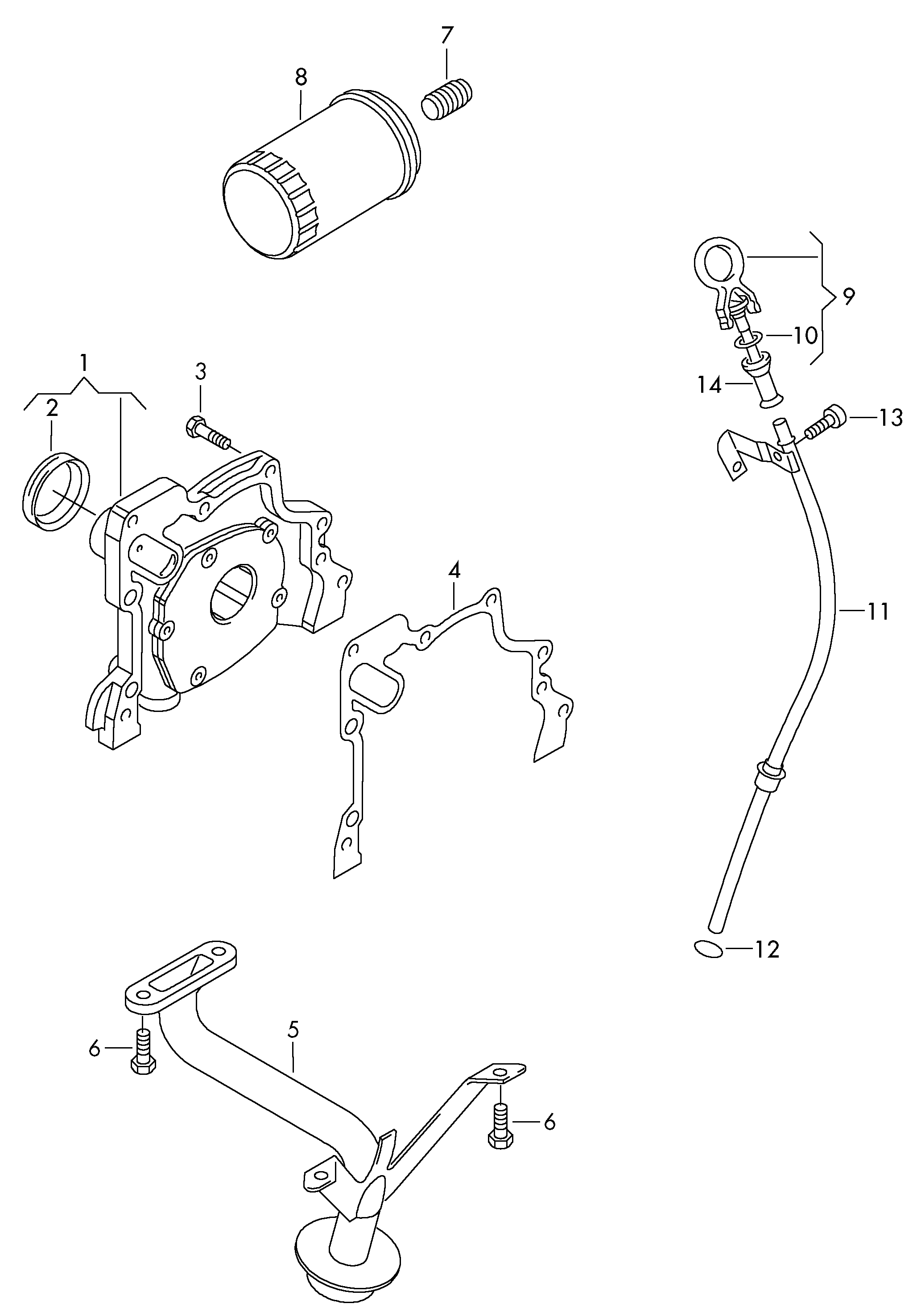

Scheme Oil pump, oil filter, oil dipstick 1.4ltr. petrol eng.+, CGGA Volkswagen Golf Plus 2012-2014 EUR
