Oil pump, oil dipstick, balancer shaft 2.0 ltr. diesel eng.+, CFFD, CFFA, CLJA, CFFB, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L103295F	Balancer shaft module with oil pump	999	Next
1	N 90951301	O-ring 21X2	999	Next
1	03G115169L	Suction line	999	Next
1	N 10613101	Socket head bolt M6X20	999	Next
1	03L198488	Intermediate gear with hub Z=32	999	Next
1	N 91154101	Hexagon socket head bolt (combi) M12X1,5X33	999	Next
1	N 90820801	Dowel sleeve 11X11	999	Next
1	03G103526C	Guide tube	999	Next
1	N 10613101	Socket head bolt M6X20	999	Next
1	03G103305C	Drive wheel Z=33	999	Next
1	N 91121301	Hexagon head bolt (combi) M7X18	999	Next
1	N 10601402	Socket head bolt with hexagon socket head M8X70	999	Next
1	N 91123401	Hex collared bolt M7X85X70	999	Next
1	N 90977502	Multi-point socket head bolt with collar M7X105X39	999	Next
1	N 91104601	Socket head bolt with inner multipoint head M8X35	999	Next
1	03L115105D	Oil pump	999	Next
1	03L115105F	Oil pump	999	Next
1	N 91051101	Round hd. screw M6X30	999	Next
1	03G115281E	Follower	999	Next
1	N 0122942	Securing ring 8X0,8	999	Next
1		Oil dipstick with pipe no replacement part use item: 23A	999	Next
1	03L103634J	Tube for oil dipstick	999	Next
1	03L103634M	Tube for oil dipstick	999	Next
1	N 90043201	O-ring 10X2	999	Next
1	4D0863788	Spreader rivet M6X16	999	Next
1		Shouldered bolt not for this model	999	Next
1	N 10338903	Hex collared bolt M6X16	999	Next
1	03L115611J	Oil dipstick	999	Next
1	03L115611T	Oil dipstick	999	Next
1	WHT001969	O-ring 9X2,2	999	Next

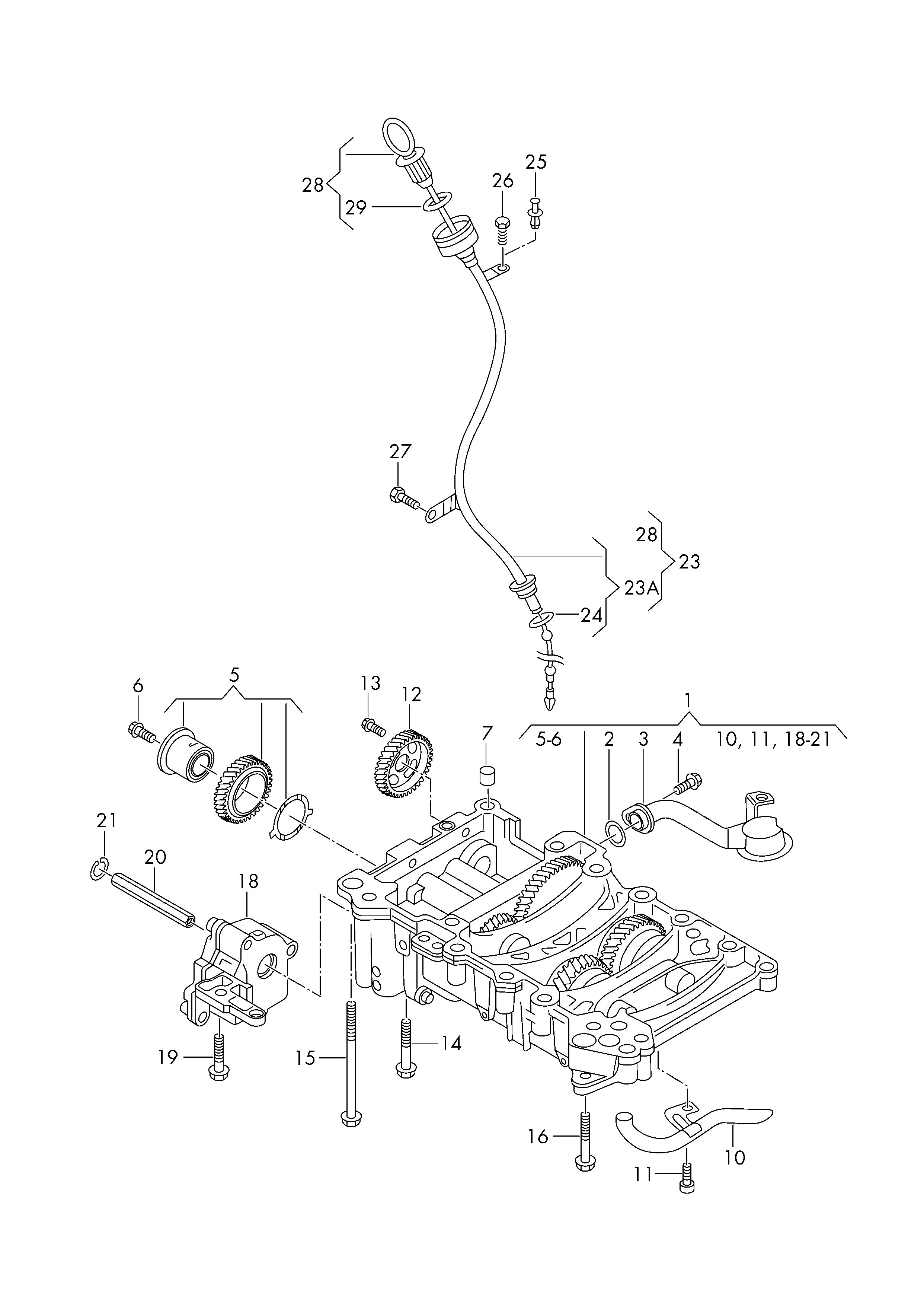

Scheme Oil pump, oil dipstick, balancer shaft 2.0 ltr. diesel eng.+, CFFD, CFFA, CLJA, CFFB, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR
