Oil pump, oil dipstick, balancer shaft 2.0 ltr. diesel eng.+, CFFA, CFFB, CFGB, CLLA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L103295F	Balancer shaft module with oil pump	999	Next
2	N90951301	O-ring 21X2	999	Next
3	03G115169L	Suction line	999	Next
4	N10613101	Socket head bolt M6X20	999	Next
5	03L198488	Intermediate gear with hub Z=32	999	Next
6	N91154101	Hexagon socket head bolt (combi) M12X1,5X33	999	Next
7	N90820801	Dowel sleeve 11X11	999	Next
10	03G103526C	Guide tube	999	Next
11	N10613101	Socket head bolt M6X20	999	Next
12	03G103305C	Drive wheel Z=33	999	Next
13	N91121301	Hexagon head bolt (combi) M7X18	999	Next
14	N10601402	Socket head bolt with hexagon socket head M8X70	999	Next
15	N91123401	Hex collared bolt M7X85X70	999	Next
15	N90977502	Multi-point socket head bolt with collar M7X105X39	999	Next
16	N91104601	Socket head bolt with inner multipoint head M8X35	999	Next
18	03L115105D	Oil pump	999	Next
19	N91051101	Round hd. screw M6X30	999	Next
20	03G115281E	Follower	999	Next
21	N0122942	Securing ring 8X0,8	999	Next
23		Oil dipstick with pipe no replacement part use item: 23A	999	Next
23A	03L103634J	Tube for oil dipstick	999	Next
23A	03L103634M	Tube for oil dipstick	999	Next
24	N90043201	O-ring 10X2	999	Next
25	4D0863788	Spreader rivet M6X16	999	Next
27	N10338903	Hex collared bolt M6X16	999	Next
28	03L115611J	Oil dipstick	999	Next
28	03L115611T	Oil dipstick	999	Next
29	WHT001969	O-ring 9X2,2	999	Next

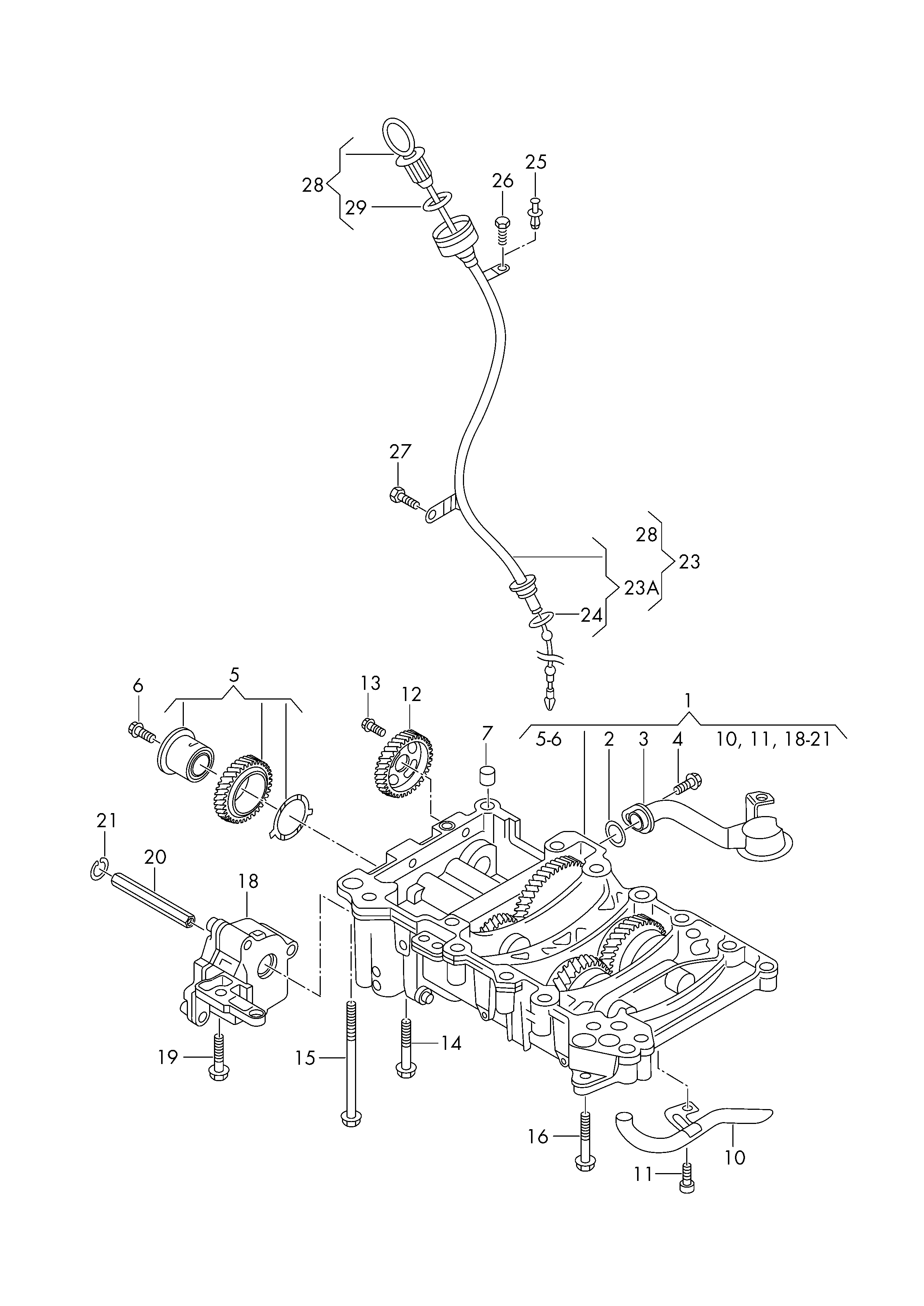

Scheme Oil pump, oil dipstick, balancer shaft 2.0 ltr. diesel eng.+, CFFA, CFFB, CFGB, CLLA Volkswagen Passat CC Coupe 2009-2012 EUR
