Oil pump, oil cooler, oil filter, oil dipstick 2.0 ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J115105AB	Oil pump	999	Next
1	06H115105BF	Oil pump	999	Next
1	06H115105AQ	Oil pump	999	Next
1	58103139	Dowel sleeve 8,2X6,5	999	Next
1	06H115175A	Oil strainer	999	Next
1	06H115175B	Oil strainer	999	Next
1		Oil strainer not for this model	999	Next
1	N 10156206	Oval hexagon socket head bolt M6X30	999	Next
1	N 91124501	Hexagon socket head bolt M8X40	999	Next
1	N 91045502	Socket head bolt with inner multipoint head M8X65	999	Next
1	06J115251M	Suction line	999	Next
1	06J115251S	Suction line	999	Next
1	N 0282222	O-ring 20X3,15	999	Next
1	N 10124304	Oval hexagon socket head bolt M6X20	999	Next
1		Chain sprocket	999	Next
1	06H115225L	Drive chain	999	Next
1	06K115225C	Drive chain	999	Next
1	06H115225N	Drive chain	999	Next
1	06K115225C	Drive chain	999	Next
1	06H109507M	Chain tensioner	999	Next
1	06K109507F	Chain tensioner	999	Next
1	WHT001392	Hexagon socket head bolt M6	999	Next
1		Bracket	999	Next
1	06J115441A	Seal	999	Next
1	06J117070C	Seal	999	Next
1	06J117021J	Oil cooler	999	Next
1	06J117021P	Oil cooler	999	Next
1	N 91048802	Screw with int. serrations M8X20	999	Next
1	06J115679E	Pipe	999	Next
1	06J115403J	Oil filter	999	Next
1	06J115403Q	Oil filter	999	Next
1	06J115403C	Oil filter	999	Next
1	06J115610H	Tube for oil dipstick	999	Next
1	06J115610L	Tube for oil dipstick	999	Next
1	WHT003463	O-ring 11,8X2,5	999	Next
1	N 10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
1	06J115611E	Oil dipstick	999	Next
1	WHT002784	O-ring 9,5X2	999	Next
1		Bungs	999	Next
1		Bungs	999	Next
1		O-ring	999	Next
1		Ball pin	999	Next

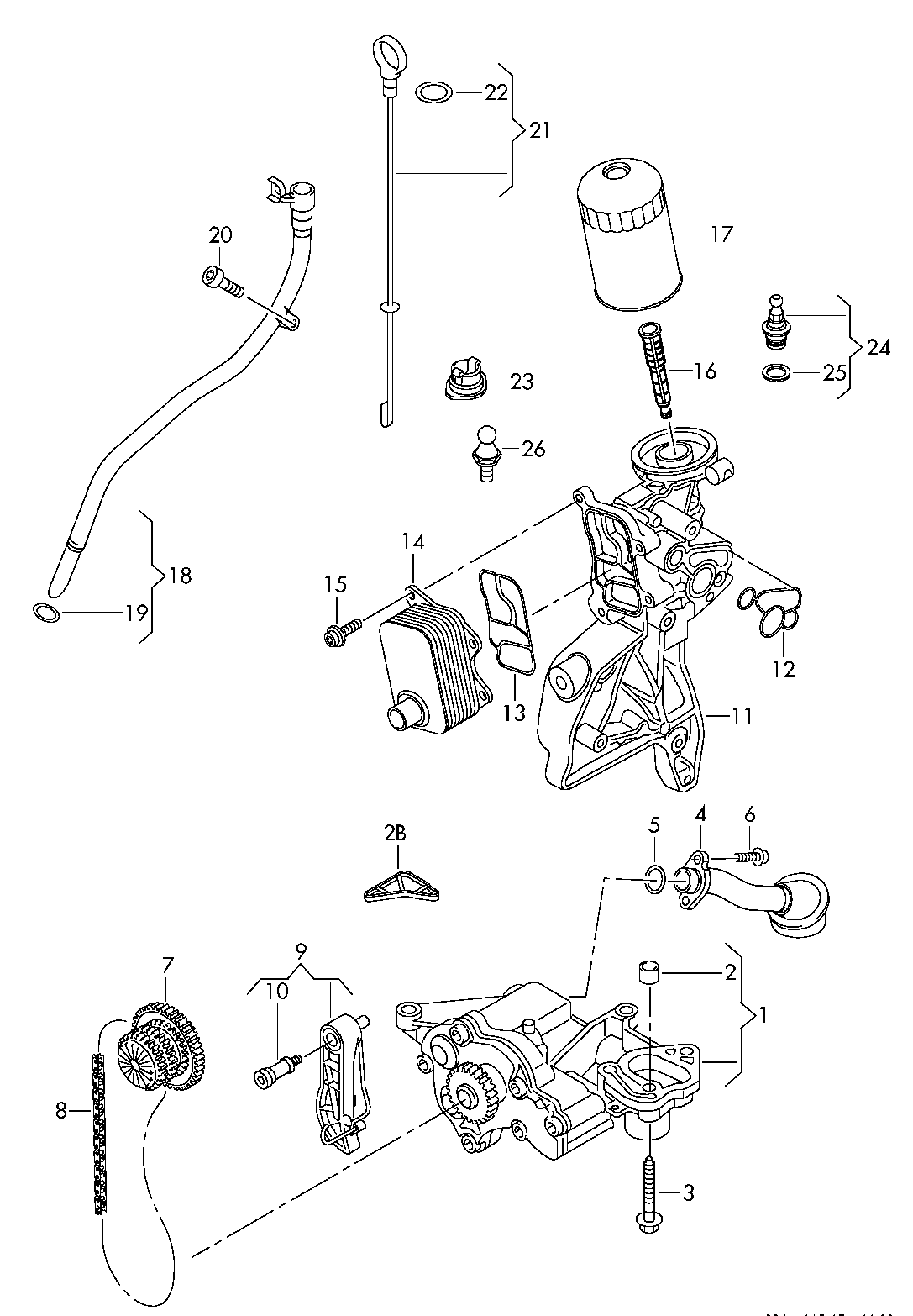

Scheme Oil pump, oil cooler, oil filter, oil dipstick 2.0 ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR
