Oil pump, oil cooler, oil filter, oil dipstick 2.0 ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J115105AB	Oil pump	999	Next
1	06H115105AF	Oil pump, before 31.10.2010	999	Next
1	06H115105AQ	Oil pump	999	Next
2	58103139	Dowel sleeve 8,2X6,5	999	Next
2B	06H115175A	Oil strainer	999	Next
2B	06H115175B	Oil strainer	999	Next
3	N10156206	Oval hexagon socket head bolt M6X30	999	Next
3	N91124501	Hexagon socket head bolt M8X40	999	Next
3	N91045502	Socket head bolt with inner multipoint head M8X65	999	Next
4	06J115251M	Suction line	999	Next
4	06J115251S	Suction line	999	Next
5	N0282222	O-ring 20X3,15	999	Next
6	N10124304	Oval hexagon socket head bolt M6X20	999	Next
7		Chain sprocket	999	Next
8	06H115225L	Drive chain	999	Next
8	06H115225N	Drive chain	999	Next
9	06H109507M	Chain tensioner, before 12.12.2011	999	Next
9	06K109507F	Chain tensioner, D 13.12.2011 and after	999	Next
10	WHT001392	Hexagon socket head bolt M6	999	Next
11		Bracket	999	Next
12	06J115441A	Seal	999	Next
13	06J117070C	Seal	999	Next
14	06J117021J	Oil cooler	999	Next
14	06J117021D	Oil cooler	999	Next
15	N91048802	Screw with int. serrations M8X20	999	Next
16	06J115679E	Pipe	999	Next
17	06J115403C	Oil filter	999	Next
18	06J115610H	Tube for oil dipstick	999	Next
19	WHT003463	O-ring 11,8X2,5	999	Next
20	N10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
21	06J115611E	Oil dipstick	999	Next
22	WHT002784	O-ring 9,5X2	999	Next
23, 24		Bungs	999	Next
25		O-ring	999	Next
26		Ball pin	999	Next

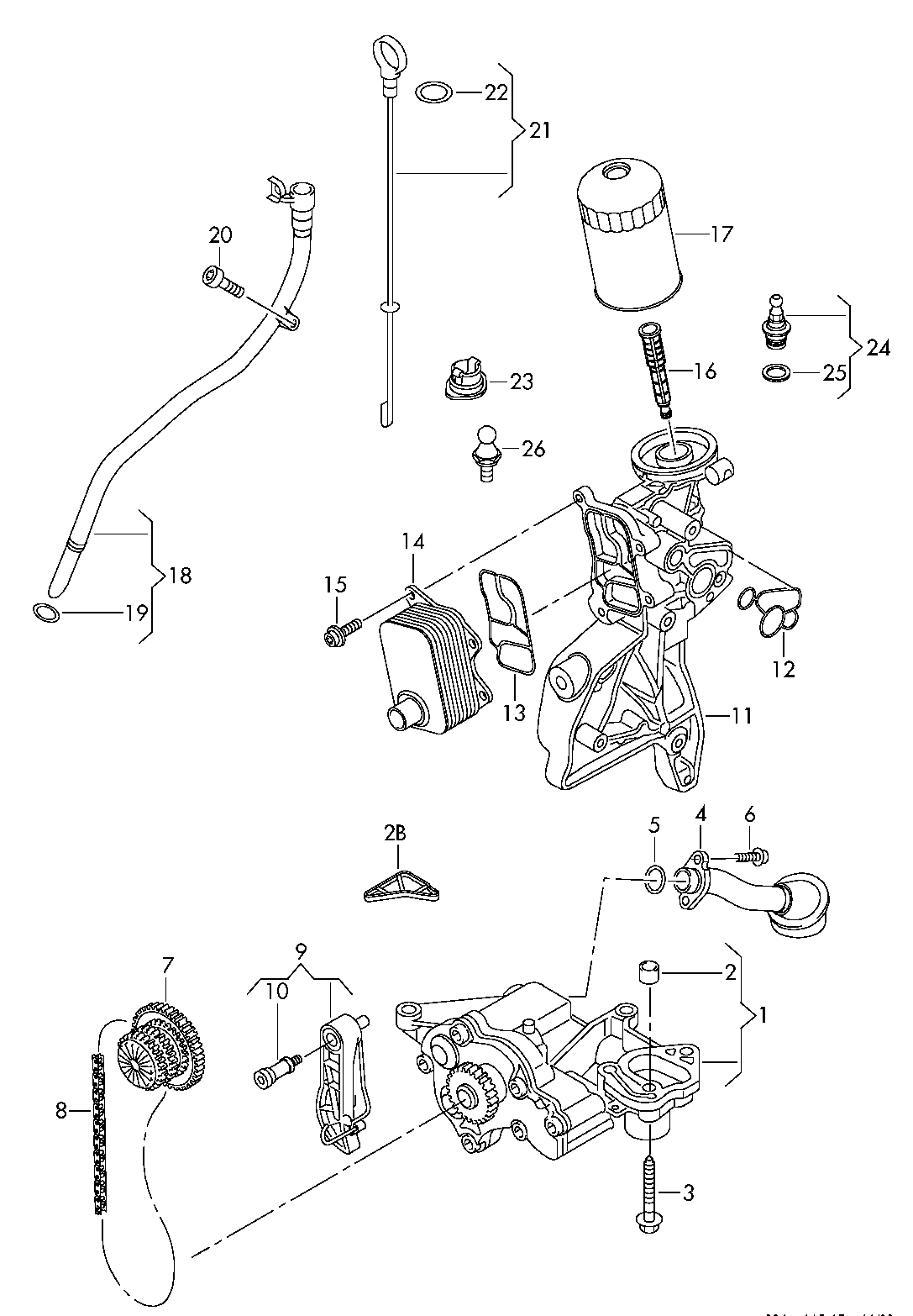

Scheme Oil pump, oil cooler, oil filter, oil dipstick 2.0 ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR
