Oil pressure line for, gearbox oil cooling, 6-speed automatic gearbox JVZ, MKD, MYY, MYZ, QNR, QNS, QNT, QNU Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0317019C	Gear oil cooler	999	Next
1	5N0317019C	Gear oil cooler	999	Next
1	5N0317019D	Gear oil cooler	999	Next
1	N 90817003	Hexagon socket head panel bolt 6X17	999	Next
1	WHT004639	Clip 12X7X8	999	Next
1	5N0317229	Seal set for quick acting coupling	999	Next
1	5N0317820B	Oil pressure line	999	Next
1	5N0317825B	Oil pressure line	999	Next
1	5N0317825B	Oil pressure line	999	Next
1	5N0317825C	Oil pressure line	999	Next
1	N 90666003	O-ring 11,5X3	999	Next
1	N 91032702	Round-head screw with inner hexagon socket head M6X20	999	Next
1	5N0317027B	Oil temperature controller	999	Next
1		Retaining bar not for this model	999	Next
1	N 91026802	Socket head bolt with inner multipoint head M8X20	999	Next

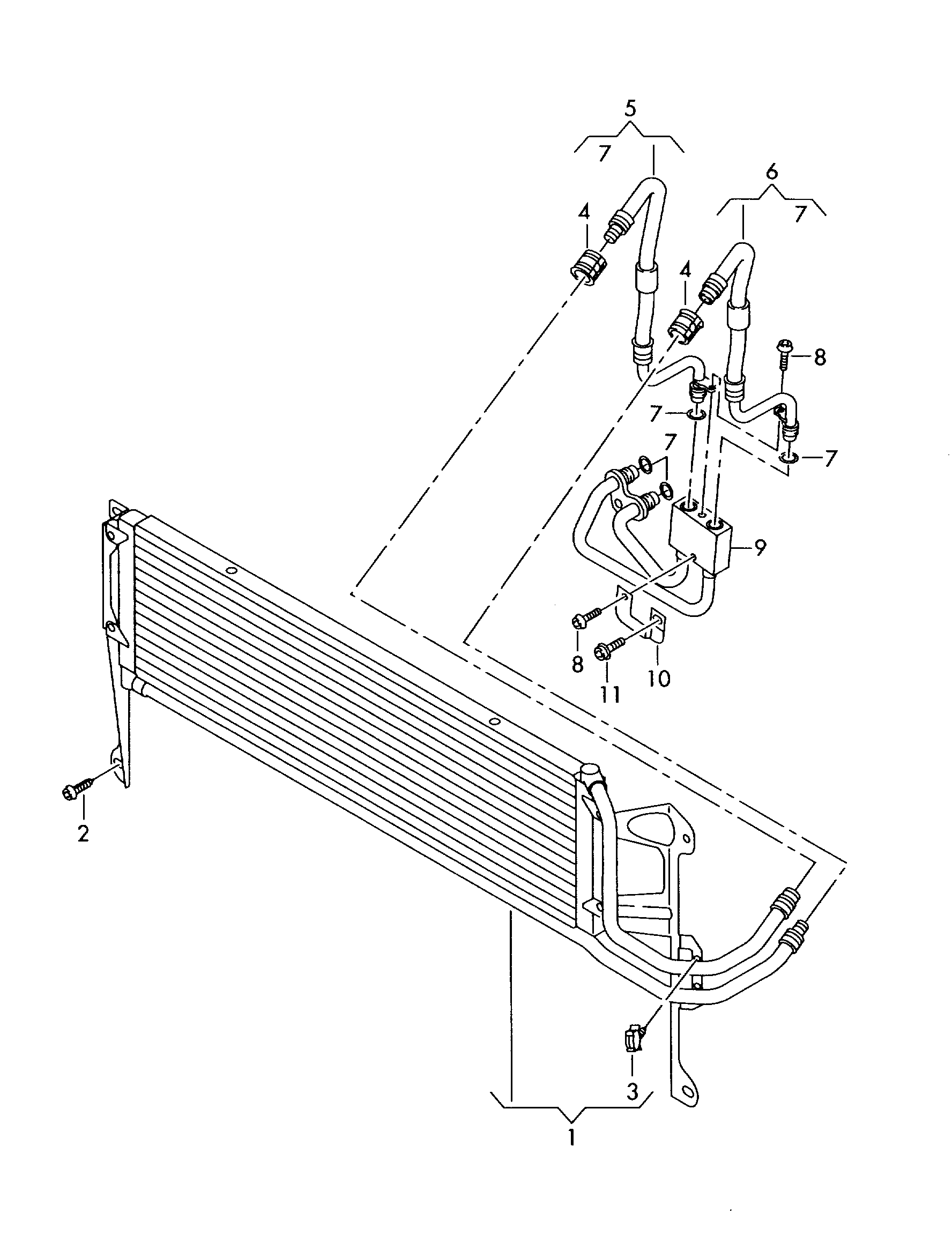

Scheme Oil pressure line for, gearbox oil cooling, 6-speed automatic gearbox JVZ, MKD, MYY, MYZ, QNR, QNS, QNT, QNU Volkswagen Tiguan 2010-2017 EUR
