Mounting parts for engine and, transmission petrol engine Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RF199315D	Assembly carrier	999	Next
2		Wishbone	999	Next
3	6R0199517	Support	999	Next
3	6R0199518	Support	999	Next
4	N10653102	Hexagon bolt M8X20	999	Next
5	N10528602	Hex collared bolt M12X1,5X75	999	Next
6	N10528602	Hex collared bolt M12X1,5X75	999	Next
7	N90484004	Hexagon bolt M12X1,5X82	999	Next
8	N10262202	Hex collared bolt M12X1,5X70	999	Next
8A	N0150816	Hexagon collar nut M12X1,5	999	Next
9	6RF199555E	Gearbox mounting	999	Next
9	6RF199555J	Gearbox mounting	999	Next
10	N10246611	Hex collared bolt M10X30	999	Next
10A	WHT001835	Shouldered bolt M10X13,6X45	999	Next
11A	6R0199111B	Console	999	Next
11A	6Q0199111AB	Console	999	Next
13	N10204807	Hexagon head bolt (combi) M10X35	999	Next
13A	N91108901	Double stud with hexagon drive M10X35	999	Next
14	6R0199167Q	Engine mounting	999	Next
14	6RF199262L	Engine mounting	999	Next
18	N0195339	Hex collared bolt M8X20	999	Next
19	N10286205	Hex collared bolt M10X60	999	Next
19A	N91136301	Double stud with hexagon drive M10X60/M8X12	999	Next
20		Console	999	Next
20		Timing case	999	Next
22	6RF199851C	Pendulum support	999	Next
23	N90983002	Fitted bolt, hexagon head M10X61	999	Next
24	N10204808	Hexagon head bolt (combi) M10X35	999	Next
25		Bracket	999	Next

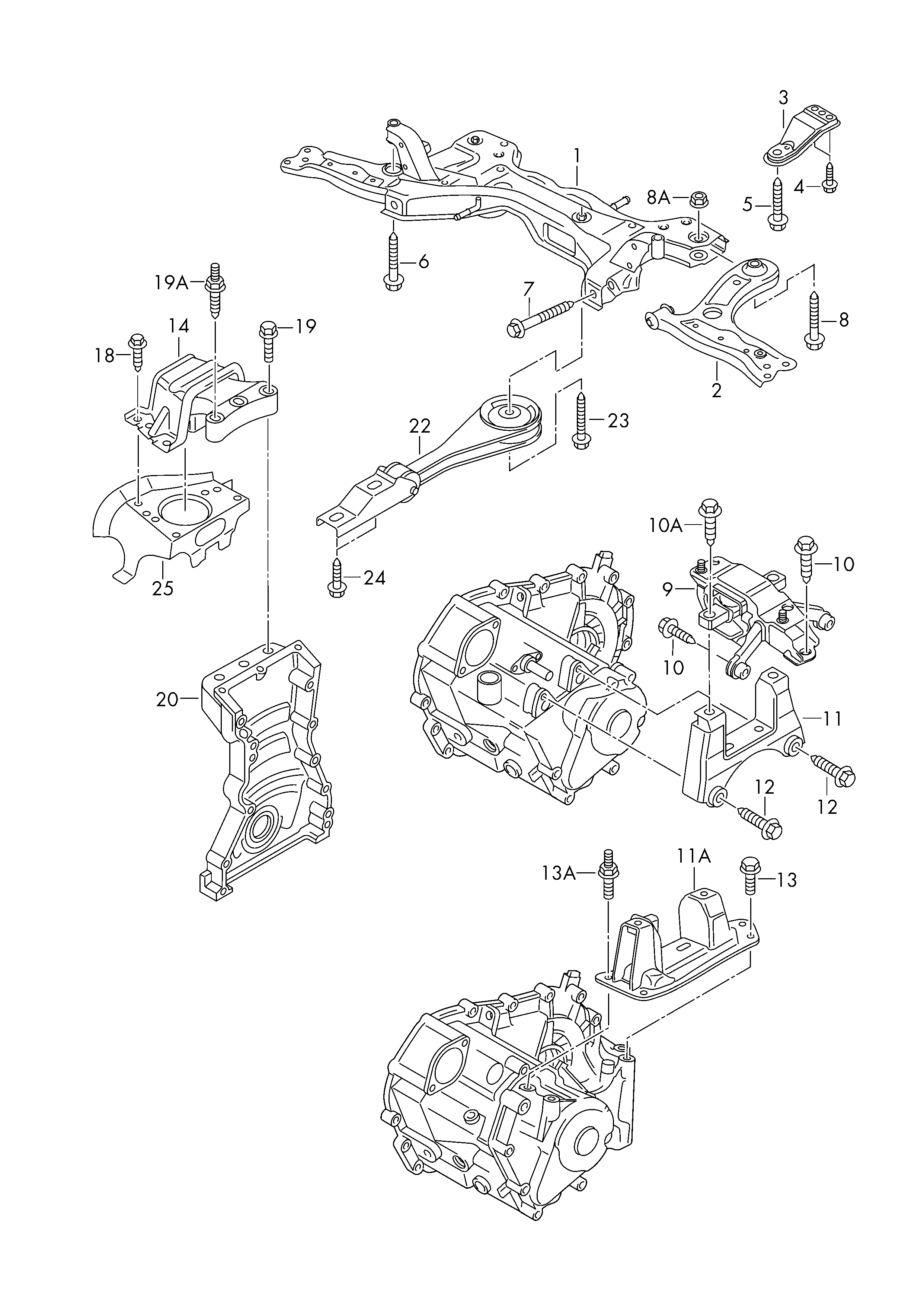

Scheme Mounting parts for engine and, transmission petrol engine Volkswagen Polo 2013-2017 EUR
