Mounting parts for engine and, transmission petrol eng.+, CAVA, CAVD, CAWA, CAWB, CAXA, CCTA, CCZB, CCZC, CCZD, CTHA, CTHD, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR

Category content

  1. Spare parts table
  2. An illustrated scheme of this category is below the list of spare parts

№ Part number Part name Наличие Go to the spare parts page
1 3C0199313AR Assembly carrier 999 Next
1 3C0199313BB Assembly carrier 999 Next
1 1K0199868Q Bonded rubber bush 999 Next
1 1K0199867Q Bonded rubber bush 999 Next
1 5N0199262F Engine mounting 999 Next
1 5N0199262K Engine mounting 999 Next
1 5N0199262J Engine mounting 999 Next
1 5N0199262M Engine mounting 999 Next
1 5N0199262H Engine mounting 999 Next
1 5N0199262N Engine mounting 999 Next
1 5N0199262Q Engine mounting 999 Next
1 5N0199262R Engine mounting 999 Next
1 5N0199262R Engine mounting 999 Next
1 N 90596906 Bolt, hex. hd. with shoulder, self-locking M10X55X32 999 Next
1 N 91029602 Double stud with hexagon drive M10X55/M6X12 999 Next
1 N 10640801 Hexagon bolt M8X50 999 Next
1 N 10552402 Hex collared bolt M12X1,5X70 999 Next
1 06J199207P Engine support 999 Next
1 04E199275 Engine support 999 Next
1 Timing case 999 Next
1 N 10701501 Socket head bolt with inner multipoint head M10X65 999 Next
1 N 10655801 Hex collared bolt M10X85 999 Next
1 N 10655802 Hex collared bolt M10X85 999 Next
1 N 10706901 Hex collared bolt M10X55 999 Next
1 Not for this model 999 Next
1 3C0199555R Gearbox mounting 999 Next
1 3C0199555AE Gearbox mounting 999 Next
1 5N0199555K Gearbox mounting 999 Next
1 3C0199555AF Gearbox mounting 999 Next
1 5N0199555L Gearbox mounting 999 Next
1 3C0199555S Gearbox mounting 999 Next
1 N 90596906 Bolt, hex. hd. with shoulder, self-locking M10X55X32 999 Next
1 3C0199117J Console 999 Next
1 5N0199117 Console 999 Next
1 5N0199117A Console 999 Next
1 1K0199117AN Console 999 Next
1 1K0199117AM Console 999 Next
1 N 10706901 Hex collared bolt M10X55 999 Next
1 N 10314505 Hex collared bolt M10X55 999 Next
1 N 10709001 Hex collared bolt M12X1,5X78 999 Next
1 N 10706901 Hex collared bolt M10X55 999 Next
1 N 91127001 Double stud with hexagon drive M10X55/M8X16 999 Next
1 N 91133202 Double stud with hexagon drive M12X78/M8X16 999 Next
1 N 10552402 Hex collared bolt M12X1,5X70 999 Next
1 N 10513102 Hex collared bolt M12X1,5X85 999 Next
1 N 10552402 Hex collared bolt M12X1,5X70 999 Next
1 N 10552402 Hex collared bolt M12X1,5X70 999 Next
1 N 10770701 Double stud with hexagon drive M12X105X70 M8X16 999 Next
1 5N0199855E Pendulum support 999 Next
1 5N0199855F Pendulum support 999 Next
1 7N0199855A Pendulum support 999 Next
1 3C0199855M Pendulum support 999 Next
1 7N0199855B Pendulum support 999 Next
1 N 10513102 Hex collared bolt M12X1,5X85 999 Next
1 N 10513102 Hex collared bolt M12X1,5X85 999 Next
1 N 91167101 Bolt, hex. hd. with shoul. (combi) M10X75 999 Next
1 N 91167101 Bolt, hex. hd. with shoul. (combi) M10X75 999 Next
1 N 91066101 Hexagon head bolt (combi) M10X35 999 Next
1 N 91066101 Hexagon head bolt (combi) M10X35 999 Next
1 N 91103802 Hex collared bolt M12X1,5X50 999 Next
1 N 10558002 Hexagon head bolt (combi) M14X1,5X70 999 Next
1 3C0199231E Bracket 999 Next
1 N 10560702 Hex collared bolt M10X70 999 Next
1 N 10640301 Hex collared bolt M12X1,5X100 999 Next
1 N 91039802 Hex collared bolt M12X1,5X90 999 Next
1 N 10640301 Hex collared bolt M12X1,5X100 999 Next
1 WHT000431A Hexagon head bolt (combi) M12X1,5X110 999 Next

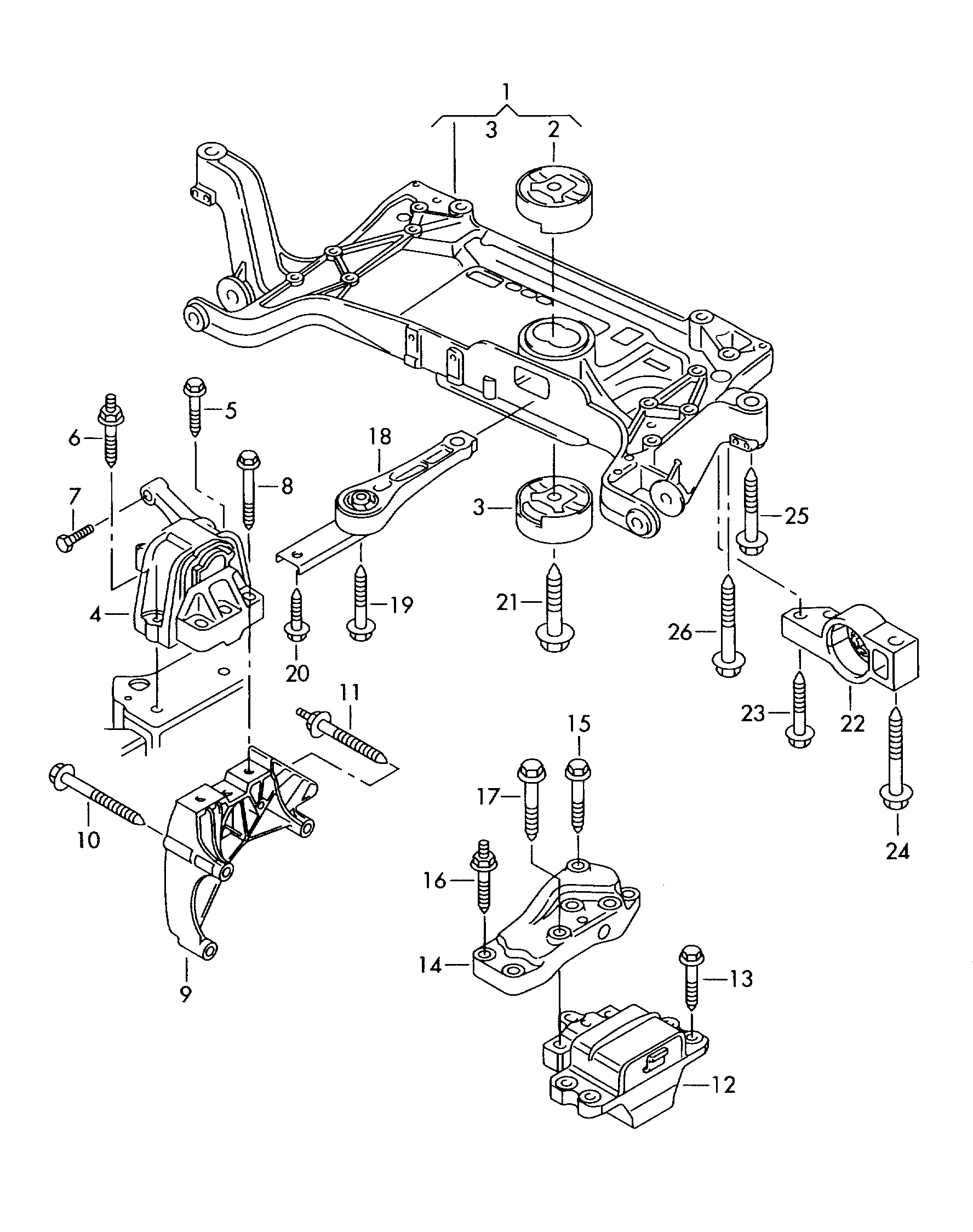

Scheme Mounting parts for engine and, transmission petrol eng.+, CAVA, CAVD, CAWA, CAWB, CAXA, CCTA, CCZB, CCZC, CCZD, CTHA, CTHD, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR


Mounting parts for engine and, transmission petrol eng.+, CAVA, CAVD, CAWA, CAWB, CAXA, CCTA, CCZB, CCZC, CCZD, CTHA, CTHD, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR
