Mounting parts for engine and, transmission petr. engine Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0199313G	Assembly carrier	999	Next
1	1K0199313N	Assembly carrier	999	Next
1	1K0199313H	Assembly carrier	999	Next
1	1K0199313AL	Assembly carrier	999	Next
1	1K0199313AL	Assembly carrier with: 1K0199867Q, 1K0199868Q	999	Next
2	1K0199868	Bonded rubber bush	999	Next
2	1K0199868A	Bonded rubber bush	999	Next
2	1K0199868Q	Bonded rubber bush	999	Next
2	1K0199868Q	Bonded rubber bush	999	Next
3	1K0199867	Bonded rubber bush	999	Next
3	1K0199867A	Bonded rubber bush	999	Next
3	1K0199867B	Bonded rubber bush	999	Next
3	1K0199867Q	Bonded rubber bush	999	Next
3	1K0199867Q	Bonded rubber bush	999	Next
4	1K0199295F	Console	999	Next
4	1K0199296J	Console	999	Next
5	N10528602	Hex collared bolt M12X1,5X75	999	Next
6	N91073401	Hex collared bolt M8X75	999	Next
7	1K0199262CG	Engine mounting	999	Next
7	1K0199262L	Engine mounting	999	Next
7	1K0199262AJ	Engine mounting	999	Next
7	1K0199262CP	Engine mounting	999	Next
7	1K0199262K	Engine mounting	999	Next
8	N90596906	Bolt, hex. hd. with shoulder, self-locking M10X55X32	999	Next
9	N91029602	Double stud with hexagon drive M10X55/M6X12	999	Next
10	1K0199588	Support	999	Next
11	N01950213	Hex collared bolt M8X25	999	Next
12	06F199207Q	Support	999	Next
12	036199275AH	Console	999	Next
12A	03F199275D	Console	999	Next
12B	03F199207	Support	999	Next
12C	N91026802	Socket head bolt with inner multipoint head M8X20	999	Next
12D	N10672701	Hex collared bolt M10X100X90	999	Next
13	N10643801	Hex collared bolt M10X90	999	Next
13	N90628303	Hexagon bolt M10X95	999	Next
14	N10691501	Hex collared bolt M10X118	999	Next
14	N90628303	Hexagon bolt M10X95	999	Next
15	N10552402	Hex collared bolt M12X1,5X70	999	Next
16	1K0199555L	Gearbox mounting	999	Next
16	1K0199555CA	Gearbox mounting	999	Next
16	1K0199555CB	Gearbox mounting	999	Next
16	1K0199555N	Gearbox mounting	999	Next
16	1K0199555AC	Gearbox mounting	999	Next
16	1K0199555AC	Gearbox mounting	999	Next
17		Not for this model	999	Next
18	N90596906	Bolt, hex. hd. with shoulder, self-locking M10X55X32	999	Next
19	1K0199111E	Console	999	Next
19	1K0199111D	Console	999	Next
19	1K0199117AQ	Console	999	Next
20	1K0199117AH	Console	999	Next
20	1K0199117BQ	Console	999	Next
20	1K0199117BB	Console	999	Next
21	N10703401	Hexagon head bolt (combi) M10X75	999	Next
21	N10241507	Hex collared bolt M10X70	999	Next
22	N10241507	Hex collared bolt M10X70	999	Next
22	N91127001	Double stud with hexagon drive M10X55/M8X16	999	Next
22	N10706901	Hex collared bolt M10X55	999	Next
23	N10552402	Hex collared bolt M12X1,5X70	999	Next
24		Not for this model	999	Next
25	1K0199359F	Gearbox support	999	Next
26	N10142404	Hex collared bolt M8X45	999	Next
27	1K0199855BA	Pendulum support	999	Next
27	1K0199855BB	Pendulum support	999	Next
27	1K0199855BD	Pendulum support	999	Next
27	1K0199855BD	Pendulum support	999	Next
28	N91167101	Bolt,hex.hd.with shoul.(combi) M10X75	999	Next
29	N91066101	Hexagon head bolt (combi) M10X35	999	Next
30	N10558002	Hexagon head bolt (combi) M14X1,5X70	999	Next
31	N10579702	Hex collared bolt M10X76	999	Next
32	1K0199231J	Bracket	999	Next
32	1K0199231K	Bracket	999	Next
32	1K0199232J	Bracket	999	Next
32	1K0199232K	Bracket	999	Next
33	N91039802	Hex collared bolt M12X1,5X90	999	Next
34	N91039802	Hex collared bolt M12X1,5X90	999	Next
35	N10640301	Hex collared bolt M12X1,5X100	999	Next
35	WHT000431A	Hexagon head bolt (combi) M12X1,5X110	999	Next

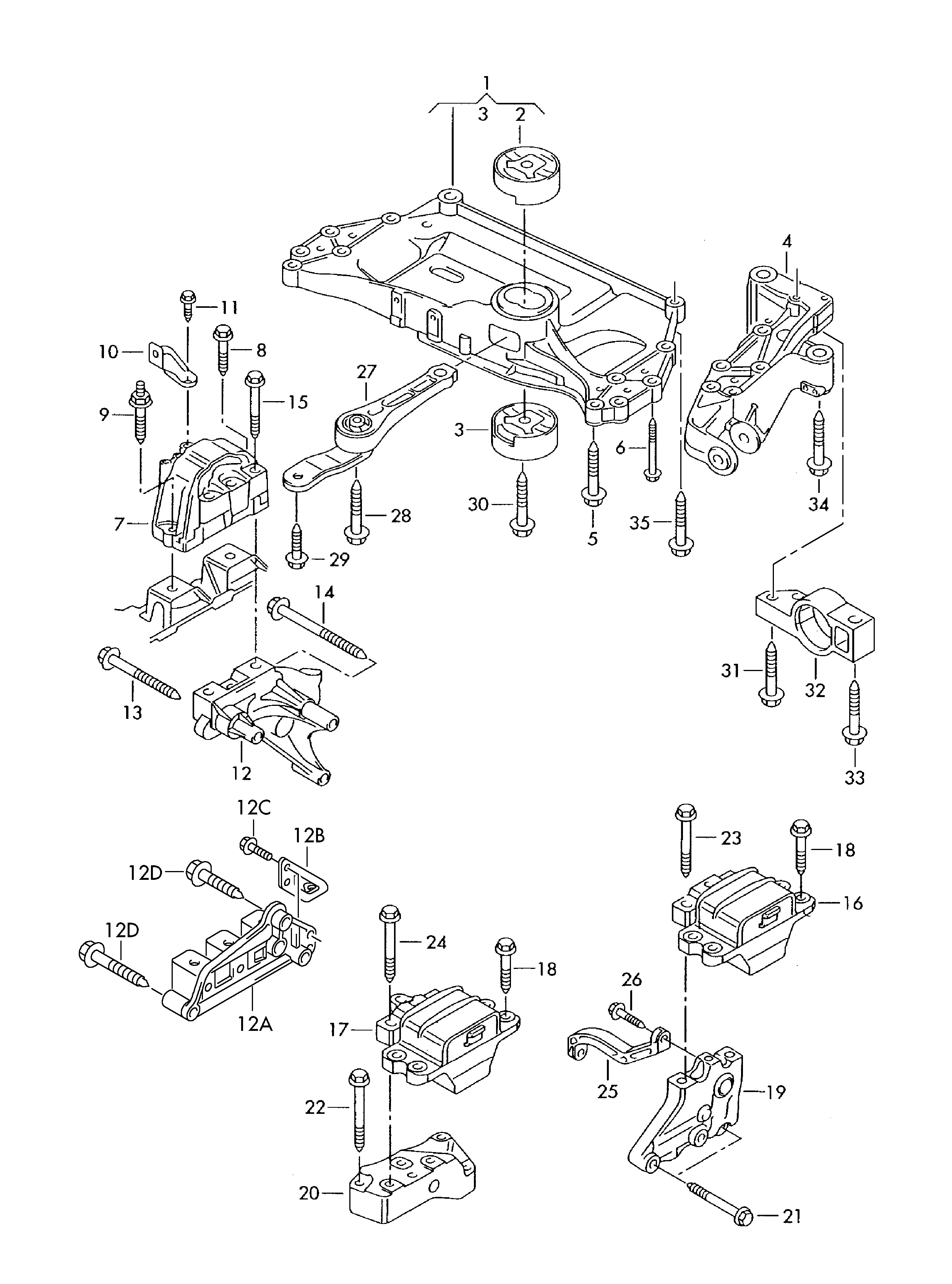

Scheme Mounting parts for engine and, transmission petr. engine Volkswagen Golf Plus 2012-2014 EUR
