Mounting parts for engine and, transmission, for 6-speed dual clutch gearbox Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	N91030402	Multi-point socket head bolt with collar M12X55	999	Next
2	N90956402	Hexagon socket head bolt with shoulder for starter M10X45	999	Next
3	N91031702	Hexagon socket head bolt with shoulder M10X50	999	Next
4	N91191701	Double stud with hexagon drive for starter M10X40/M8X16	999	Next
5	N91030402	Multi-point socket head bolt with collar M12X55	999	Next
6	N91031702	Hexagon socket head bolt with shoulder M10X50	999	Next
7	N91060202	Hex collared bolt M12X65	999	Next
8	N91031702	Hexagon socket head bolt with shoulder M10X50	999	Next
9	N91030102	Multi-point socket head bolt with collar M12X70	999	Next
10	N91030402	Multi-point socket head bolt with collar M12X55	999	Next

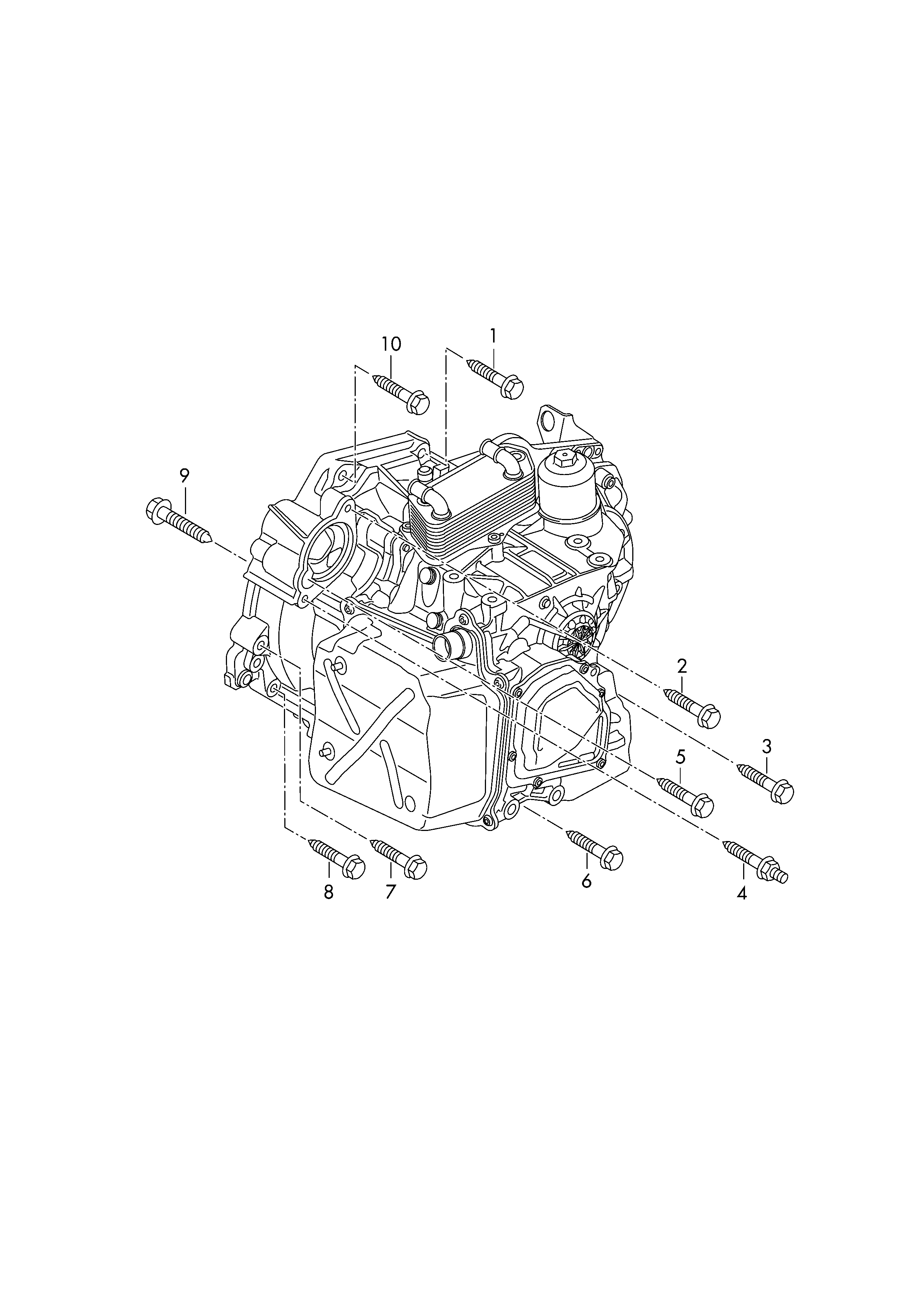

Scheme Mounting parts for engine and, transmission, for 6-speed dual clutch gearbox Volkswagen Golf Plus 2012-2014 EUR
