Mounting parts for engine and, transmission, for 6-speed dual clutch, gearbox petrol eng.+, CZDA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	N 91060202	Hex collared bolt M12X65	999	Next
1	N 91030402	Multi-point socket head bolt with collar M12X55	999	Next
1	N 90956402	Hexagon socket head bolt with shoulder M10X45	999	Next
1	N 90956402	Hexagon socket head bolt with shoulder M10X45	999	Next
1	N 91030402	Multi-point socket head bolt with collar M12X55	999	Next
1	N 91031702	Hexagon socket head bolt with shoulder M10X50	999	Next
1	N 91031702	Hexagon socket head bolt with shoulder M10X50	999	Next
1	N 91030102	Multi-point socket head bolt with collar M12X70	999	Next
1	N 91031702	Hexagon socket head bolt with shoulder M10X50	999	Next
1	N 91030102	Multi-point socket head bolt with collar M12X70	999	Next
1	N 91030102	Multi-point socket head bolt with collar M12X70	999	Next

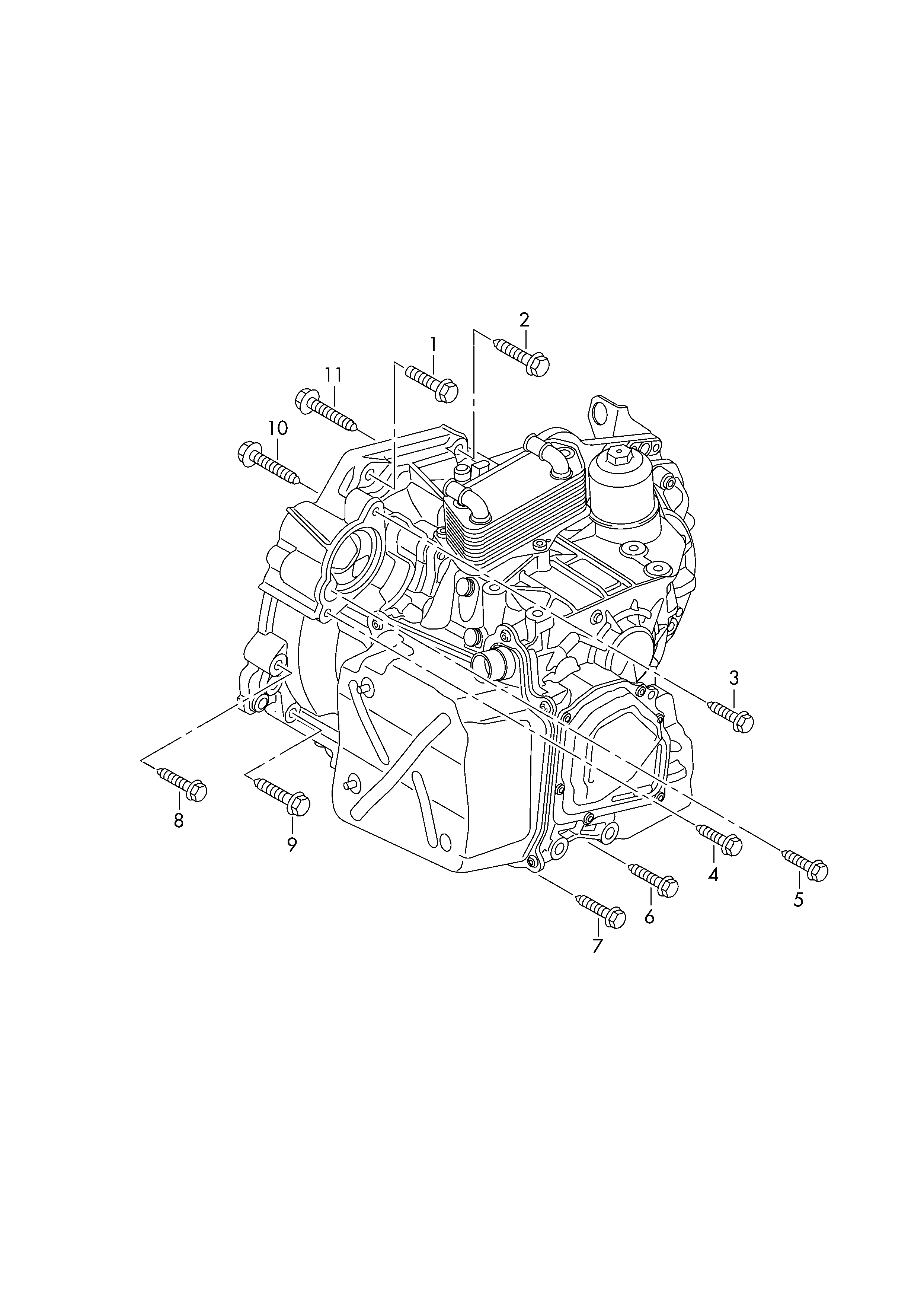

Scheme Mounting parts for engine and, transmission, for 6-speed dual clutch, gearbox petrol eng.+, CZDA Volkswagen Tiguan 2010-2017 EUR
