Mounting parts for engine and, transmission, for 6-speed automatic gearbox MFZ, QAW Volkswagen Polo 2013-2017 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | N10687801 | Round hd. screw M12X42 | Next |
| 2 | N10687801 | Round hd. screw M12X42 | Next |
| 3 | N90967801 | Double stud with hexagon drive M12X55/M8X16 | Next |
| 4 | 022103139B | Dowel sleeve 16X13,5 | Next |
| 5 | N91042601 | Double stud with hexagon drive M12X150/M8X16 | Next |
| 6 | N10409104 | Hexagon bolt M12X70 | Next |
| 7 | N10314505 | Hex collared bolt M10X50 | Next |
| 8 | N10314505 | Hex collared bolt M10X50 | Next |
| 9 | N10409104 | Hexagon bolt M12X70 | Next |
| 10 | N10687801 | Round hd. screw M12X42 | Next |
| 11 | 09G301159 | Cover plate | Next |

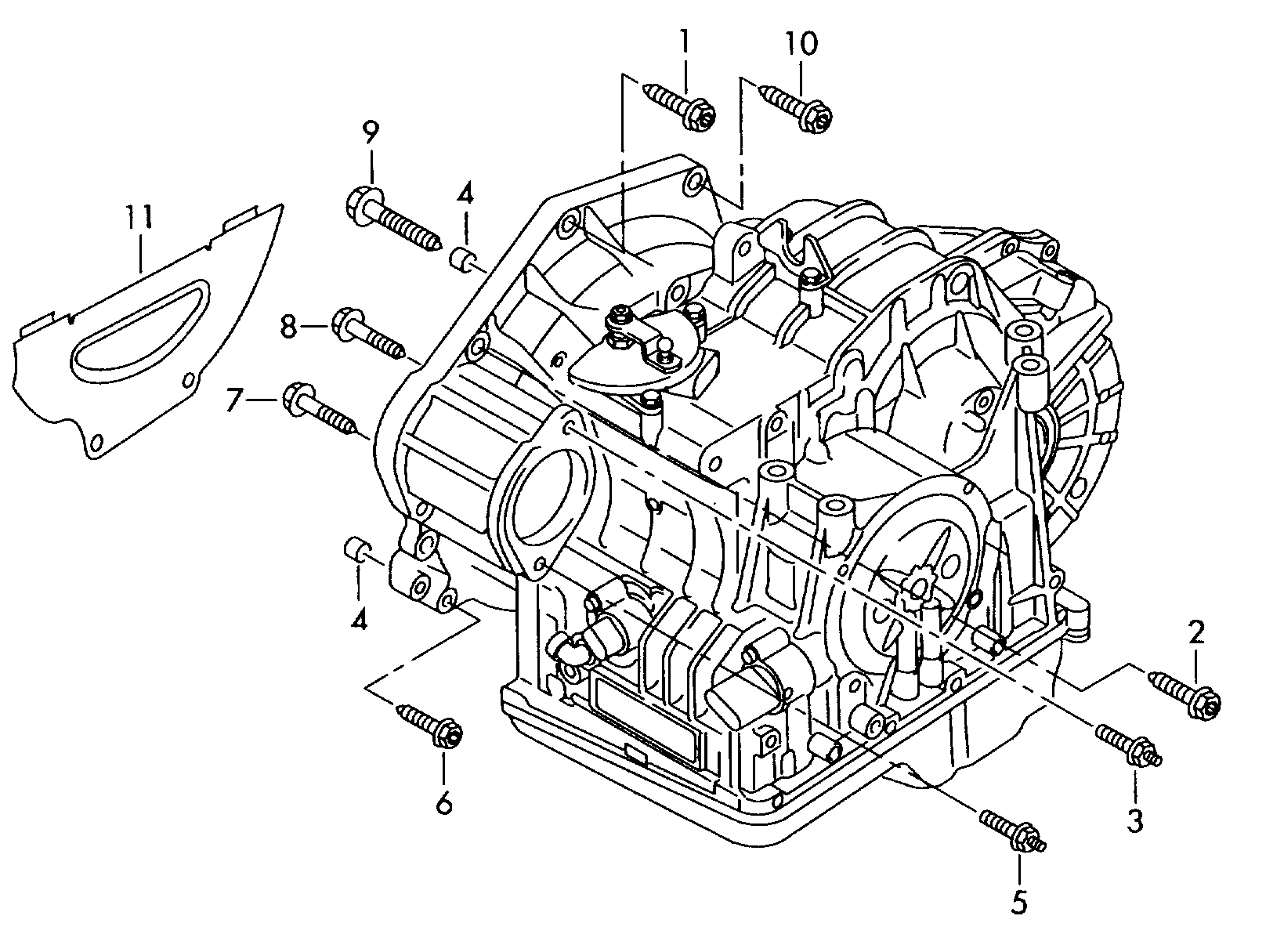

Scheme Mounting parts for engine and, transmission, for 6-speed automatic gearbox MFZ, QAW Volkswagen Polo 2013-2017 EUR
