Mounting parts for engine and, transmission, for 6-speed automatic gearbox JVZ, MKD, MYY, MYZ, QNR, QNS, QNT, QNU Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	N 10721501	Multi-point socket head bolt with collar M12X50	999	Next
1	N 10721501	Multi-point socket head bolt with collar M12X50	999	Next
1	N 90967801	Double stud with hexagon drive for starter M12X55/M8X16	999	Next
1	N 10711401	Socket head bolt with hexagon socket head (combination) M10X50	999	Next
1	N 90967801	Double stud with hexagon drive for starter M12X55/M8X16	999	Next
1	N 10711401	Socket head bolt with hexagon socket head (combination) M10X50	999	Next
1	N 91155401	Multi-point socket head bolt with collar M12X65	999	Next
1	N 10623701	Hex collared bolt M10X65	999	Next
1	N 10721501	Multi-point socket head bolt with collar M12X50 M8X16	999	Next
1	N 10721501	Multi-point socket head bolt with collar M12X50	999	Next
1		Dowel sleeve	999	Next
1	N 91060202	Hex collared bolt M12X65	999	Next
1		Dowel sleeve	999	Next

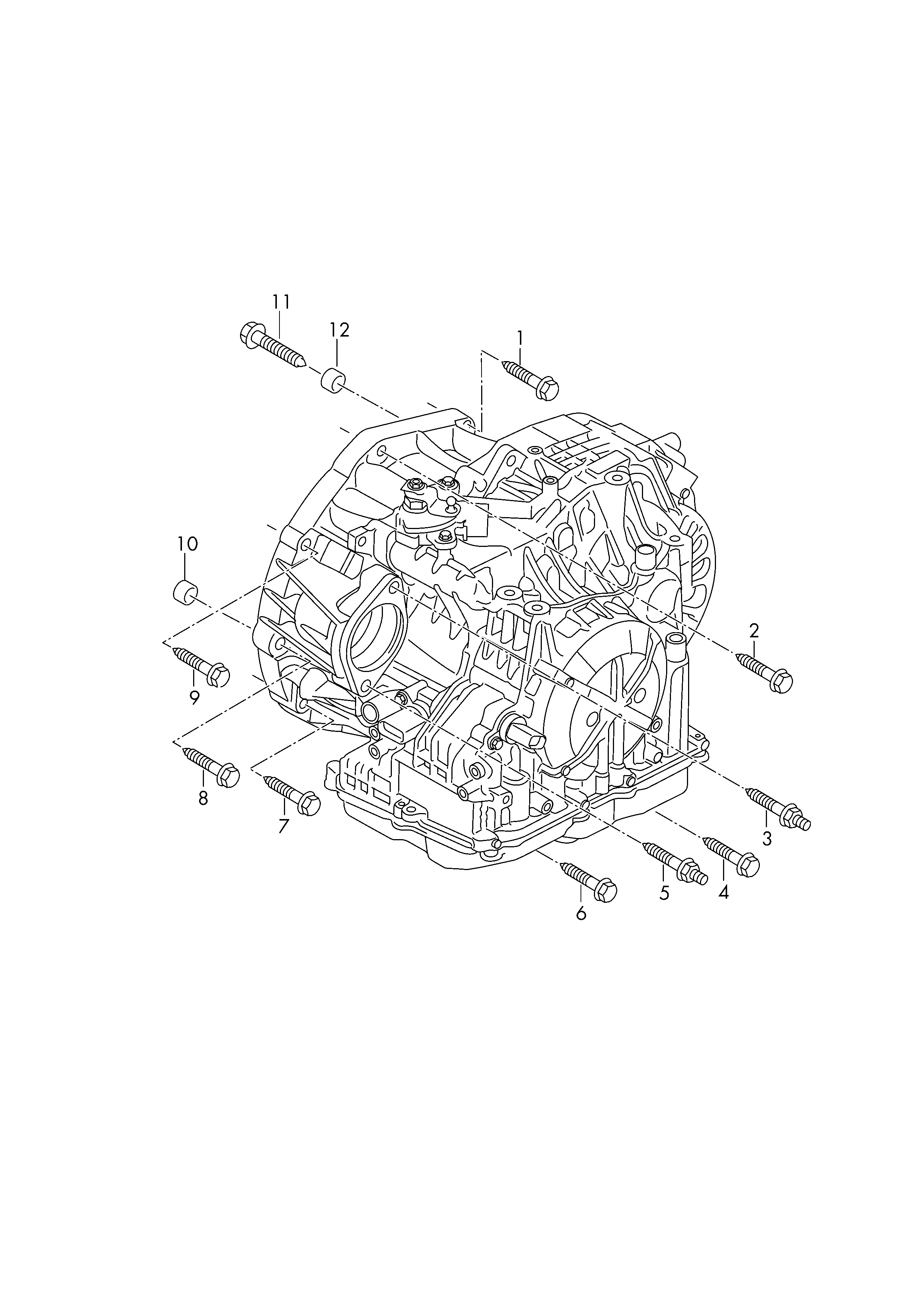

Scheme Mounting parts for engine and, transmission, for 6-speed automatic gearbox JVZ, MKD, MYY, MYZ, QNR, QNS, QNT, QNU Volkswagen Tiguan 2010-2017 EUR
