Mounting parts for engine and, transmission, for 6 speed manual gearbox LHY, LNY, NBW, NBX, PRG, PRJ Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	N10690801	Hex collared bolt M12X60	999	Next
2	N10690801	Hex collared bolt M12X60	999	Next
3	N10690801	Hex collared bolt M12X60	999	Next
4	N90967801	Double stud with hexagon drive M12X55/M8X16	999	Next
5	N91042601	Double stud with hexagon drive M12X150/M8X16	999	Next
6	N10409104	Hexagon bolt M12X70	999	Next
7	N10697801	Hex collared bolt M10X30	999	Next
8	N10697801	Hex collared bolt M10X30	999	Next
9	N91106301	Hexagon collared bolt with hexagon socket head (duo) M12X80	999	Next
10	02T301159C	Cover plate	999	Next

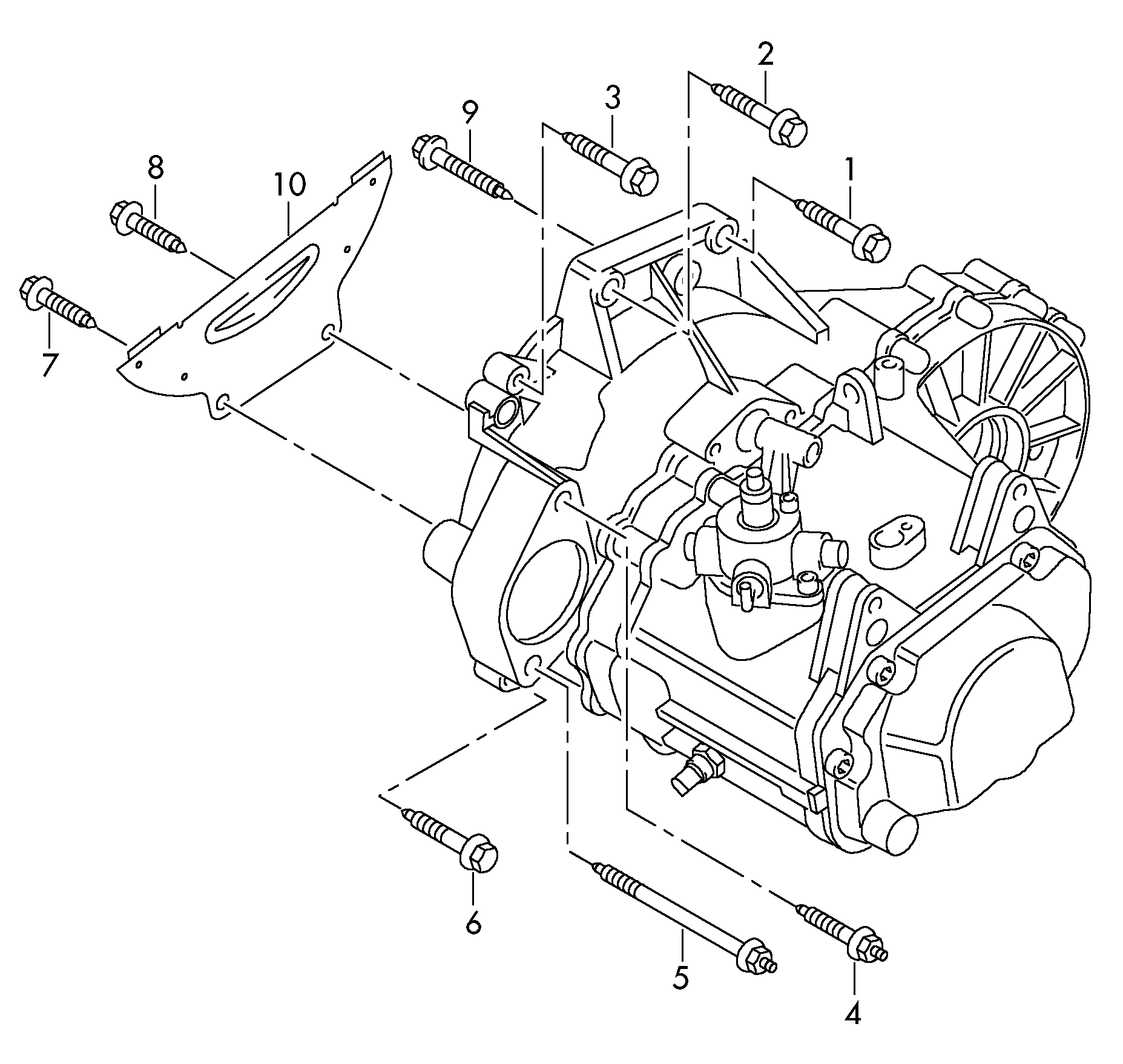

Scheme Mounting parts for engine and, transmission, for 6 speed manual gearbox LHY, LNY, NBW, NBX, PRG, PRJ Volkswagen Golf Plus 2012-2014 EUR
