Mounting parts for engine and, transmission 1.4-2.0 ltr., 3.6ltr. petr. engine Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0199313AT	Assembly carrier	999	Next
1	3C0199313AR	Assembly carrier	999	Next
2	1K0199868T	Bonded rubber bush	999	Next
2	1K0199868Q	Bonded rubber bush	999	Next
3	1K0199867T	Bonded rubber bush	999	Next
3	1K0199867Q	Bonded rubber bush	999	Next
5	N10560702	Hex collared bolt M10X70	999	Next
6	N10706301	Hexagon bolt M8X55	999	Next
7	1K0199262CL	Engine mounting	999	Next
7	1K0199262M	Engine mounting	999	Next
7	1K0199262DA	Engine mounting	999	Next
8	N90596906	Bolt, hex. hd. with shoulder, self-locking M10X55X32	999	Next
9	N91029602	Double stud with hexagon drive M10X55/M6X12	999	Next
10	1K0199588	Support	999	Next
11	N01950213	Hex collared bolt M8X25	999	Next
12	06J199207K	Support	999	Next
12	06J199207P	Engine support	999	Next
12	022199354S	Engine support	999	Next
12	03H199354	Engine support	999	Next
12		Timing case	999	Next
13	N91021403	Socket head bolt with inner multipoint head M10X35	999	Next
13	N91021403	Socket head bolt with inner multipoint head M10X35	999	Next
13	N10701501	Socket head bolt with inner multipoint head M10X65	999	Next
15	N10552402	Hex collared bolt M12X1,5X70	999	Next
16	3C0199555P	Gearbox mounting	999	Next
16	1K0199555AC	Gearbox mounting	999	Next
17	3C0199555Q	Gearbox mounting	999	Next
17	3C0199555Q	Gearbox mounting	999	Next
17	3C0199555R	Gearbox mounting	999	Next
17	3C0199555AA	Gearbox mounting	999	Next
17	8J0199555D	Gearbox mounting	999	Next
18	N90596906	Bolt, hex. hd. with shoulder, self-locking M10X55X32	999	Next
19	1K0199117AP	Console	999	Next
19A	1K0199117AQ	Console	999	Next
19A	1K0199117BB	Console	999	Next
20	1K0199117AB	Console	999	Next
20	1K0199117AM	Console	999	Next
20	1K0199117BQ	Console	999	Next
20	1K0199117AC	Console	999	Next
20	1K0199117AN	Console	999	Next
20	3C0199117J	Console	999	Next
21	N10241507	Hex collared bolt M10X70	999	Next
21A	N10241507	Hex collared bolt M10X70	999	Next
21A	N10706901	Hex collared bolt M10X55	999	Next
21A	N91127001	Double stud with hexagon drive M10X55/M8X16	999	Next
22	N10709001	Hex collared bolt M12X1,5X78	999	Next
22	N10706901	Hex collared bolt M10X55	999	Next
22	N10706901	Hex collared bolt M10X55	999	Next
22	N91127001	Double stud with hexagon drive M10X55/M8X16	999	Next
22	N91127001	Double stud with hexagon drive M10X55/M8X16	999	Next
23	N10552402	Hex collared bolt M12X1,5X70	999	Next
24	N10552402	Hex collared bolt M12X1,5X70	999	Next
25	1K0199359E	Gearbox support	999	Next
26	N10142404	Hex collared bolt M8X45	999	Next
27	3C0199855J	Pendulum support	999	Next
27	3C0199855K	Pendulum support	999	Next
27	3C0199855M	Pendulum support	999	Next
27	3C0199855L	Pendulum support	999	Next
28	N91167101	Bolt,hex.hd.with shoul.(combi) M10X75	999	Next
28	N10513102	Hex collared bolt M12X1,5X85	999	Next
29	N91066101	Hexagon head bolt (combi) M10X35	999	Next
30	N10558002	Hexagon head bolt (combi) M14X1,5X70	999	Next
31	N10560702	Hex collared bolt M10X70	999	Next
32	3C0199231D	Bracket	999	Next
33	N10640301	Hex collared bolt M12X1,5X100	999	Next
34	N91039802	Hex collared bolt M12X1,5X90	999	Next
35	N10640301	Hex collared bolt M12X1,5X100	999	Next
35	WHT000431A	Hexagon head bolt (combi) M12X1,5X110	999	Next

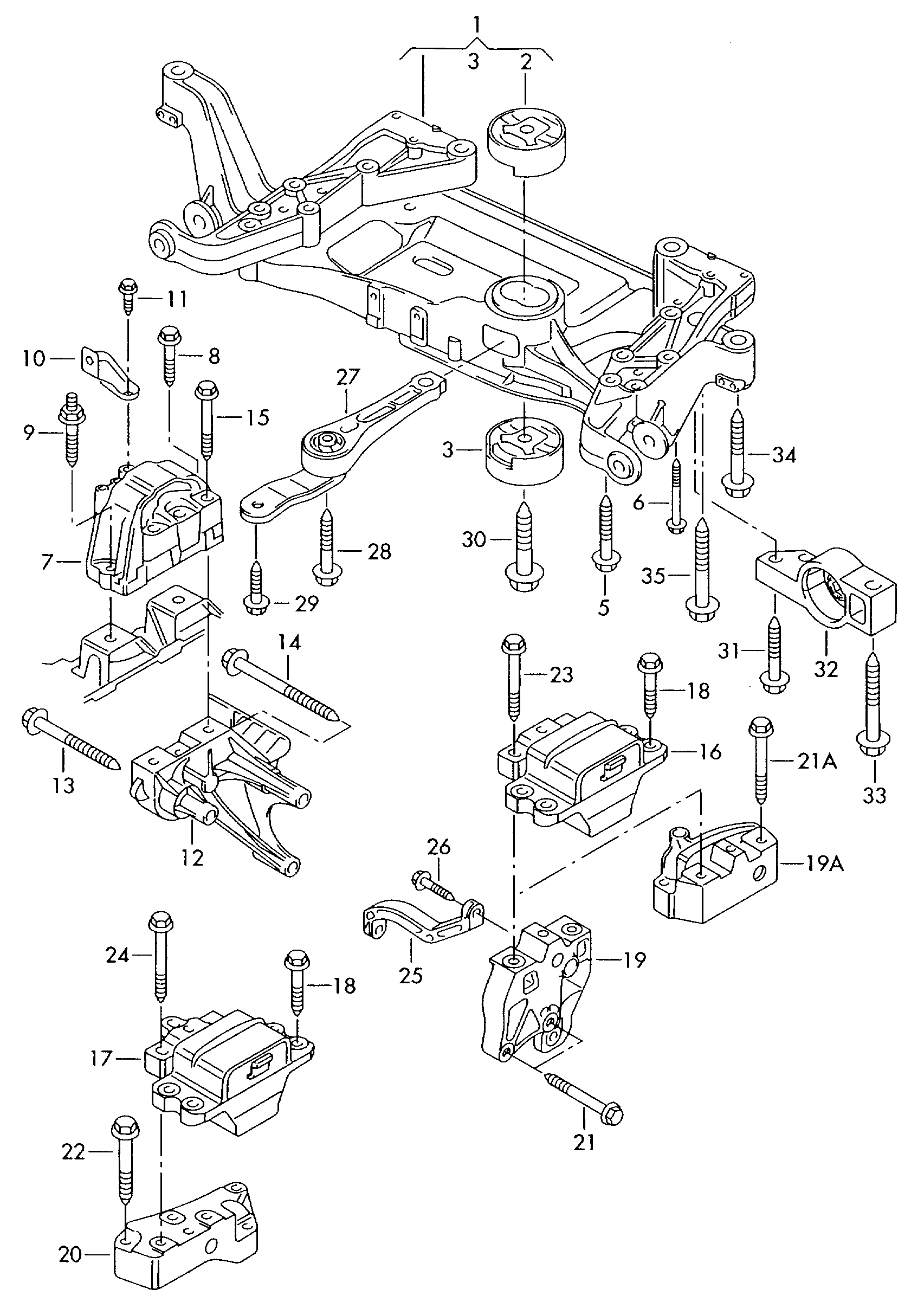

Scheme Mounting parts for engine and, transmission 1.4-2.0 ltr., 3.6ltr. petr. engine Volkswagen Passat CC Coupe 2009-2012 EUR
