Mechatronic with software, for 7-speed dual clutch gearbox petrol eng.+, BSE, BSF, CAXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0AM325025D	Mechatronic with software	999	Next
1	0AM325025DZHT	Mechatronic with software	999	Next
1	0AM325025DZJ4	Mechatronic with software	999	Next
1	0AM325025H	Mechatronic with software	999	Next
1	0AM325025HZEB	Mechatronic with software	999	Next
1	0AM325025HZE4	Mechatronic with software	999	Next
1	0AM325025HZCX	Mechatronic with software	999	Next
1	0AM325025HZNK	Mechatronic with software	999	Next
2	0AM927377	Seal	999	Next
-	0AM398091	Clutch piston repair kit	999	Next
-	0AM398091A	Clutch piston repair kit	999	Next
3	02M301153A	Dowel sleeve 12X9,5	999	Next
4	G004000M2	Central hydraulic oil and steering gear oil	999	Next
6	01X301127C	Round hd. screw M8X35X30	999	Next
7	WHT001922	Socket head bolt with inner multipoint head (kombi) M8X90	999	Next
8	N90564501	Snap ring 28,5	999	Next
9	02J409189E	Shaft oil seal 48X62X8	999	Next
10	0AM409344A	Flanged shaft	999	Next
10	0AM409344	Flanged shaft	999	Next
11	02E409359	Socket head bolt with hexagon socket head M8X45,9	999	Next
12	0AM301189E	Shaft oil seal coupling 40X56X8	999	Next
14	010409841A	Cap for venting the gearbox	999	Next
13	0AM301733L	Shaft oil seal hollow shaft 20,5X28X7	999	Next
15	0AM325120A	Protective cap	999	Next
16	0AM301472C	Breather line	999	Next
16	0AM301472F	Breather line	999	Next
17	0AM301160B	Cover plate	999	Next
18	N10124306	Oval hexagon socket head bolt M6X20	999	Next
19	0AM325423B	Cover	999	Next
20	0AM321219F	Actuator parking brake	999	Next
21	N91070001	Socket head bolt M8X30	999	Next
22	0AM321397	Abutment	999	Next
22	0AM321397B	Abutment	999	Next
23	0AM321171A	Lever	999	Next
23	0AM321171C	Lever	999	Next
24	N90441603	Hexagon bolt M6X32	999	Next
25	N10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
26	14301485	Cap for venting the gearbox	999	Next
27	N10660801	Socket head bolt with inner multipoint head (kombi) M6X25	999	Next
28	0AM321490B	Cover for parking brake	999	Next
29	N90564501	Snap ring 28,5	999	Next
30	02M301189G	O-ring 60X74,3X8	999	Next
31	0AM409343A	Flanged shaft	999	Next
31	0AM409343	Flanged shaft	999	Next
25	02J409189A	Shaft oil seal 48X62X8	999	Next
26	02M301189B	O-ring 60X74,3X8	999	Next
32	02E409359	Socket head bolt with hexagon socket head M8X45,9	999	Next
33	N10037105	Sealing plug M22X1,5	999	Next
33	0AM301189C	Shaft oil seal 40X56X16	999	Next
33A	0AM301733K	Shaft oil seal 20X28X8	999	Next

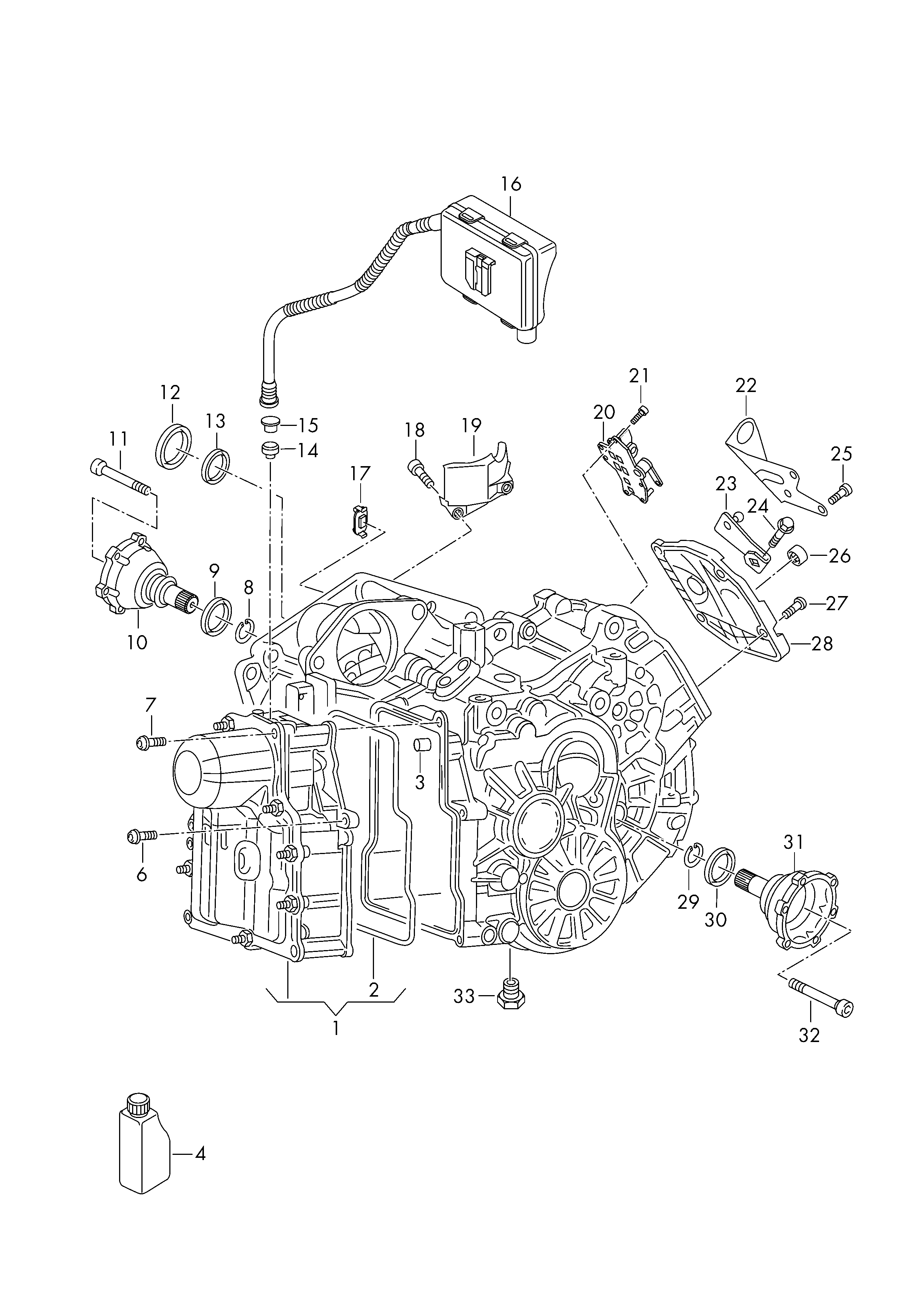

Scheme Mechatronic with software, for 7-speed dual clutch gearbox petrol eng.+, BSE, BSF, CAXA Volkswagen Golf Plus 2012-2014 EUR
