Mechatronic with software, coupling, oil pump, oil cooler, flanged shaft, for 6-speed dual clutch, gearbox petrol eng.+, CTHA, CTHD, CZDA Volkswagen Tiguan 2010-2017 EUR

Category content

  1. Spare parts table
  2. An illustrated scheme of this category is below the list of spare parts

№ Part number Part name Наличие Go to the spare parts page
1 02E325025AL Mechatronic with software 999 Next
1 02E325025ALZ35 Mechatronic with software 999 Next
1 02E325025ALZ6R Mechatronic with software 999 Next
1 02E325025ALZ7T Mechatronic with software 999 Next
1 N 10554002 Round hd. screw M6X35 999 Next
1 02E321371E Seal 999 Next
1 WHT001403 O-ring included in position: 27X3,2 1 999 Next
1 02E325201D Cover 999 Next
1 1K0971858AS Retaining bracket 999 Next
1 N 01508210 Hexagon collar nut M6 999 Next
1 N 91032702 Round-head screw with inner hexagon socket head M6X20 999 Next
1 02E315105B Oil pump 999 Next
1 02E321385A Seal 999 Next
1 02E323561C Shaft - oil pump 999 Next
1 N 10562602 Round hd. screw M6X60 999 Next
1 N 91109001 Hex socket countersunk bolt M6X60 999 Next
1 02E315141A Oil pump cover 999 Next
1 N 10451405 Oval hexagon socket head bolt M6X16 999 Next
1 N 91027901 O-ring 15X2,5 999 Next
1 02E409061B Oil cooler 999 Next
1 N 90986102 Socket head bolt with inner multipoint head M8X20 999 Next
1 02E398051 Filter element with gasket 999 Next
1 02E305051C Filter element also use: N 910 845 01 999 Next
1 02E305045 Filter housing 999 Next
1 N 91084501 O-ring 63,09X3,53 999 Next
1 N 90215404 Sealing plug M24X1,5 999 Next
1 N 0438092 O-ring 24X29 999 Next
1 02E321363C Oil pipe 96 999 Next
1 02A301227M Shaft oil seal 24,3X6,4 999 Next
1 02E321171D Lever for parking lock 999 Next
1 N 90761102 Hexagon collar nut M8 999 Next
1 02E321397D Abutment 999 Next
1 N 90986102 Socket head bolt with inner multipoint head M8X20 999 Next
1 95409841 Cap for venting the gearbox 999 Next
1 02E301472F Breather line 335,2 999 Next
1 0AM409847 Breather line 9,1X23X8,6 999 Next
1 02M301189B O-ring 60X74,3X8 999 Next
1 02M301189G O-ring 60X74,3X8 999 Next
1 02E409343D Flanged shaft 999 Next
1 02E409375B Protective ring 999 Next
1 02E409359 Socket head bolt with hexagon socket head M8X45,9 999 Next
1 02T409189K Shaft oil seal 50X65X8 999 Next
1 02E409375A Protective ring 999 Next
1 02E409344C Flanged shaft 999 Next
1 02E927321A Speed sender with temperature sender 999 Next
1 02E927321C Speed sender 999 Next
1 N 10124304 Oval hexagon socket head bolt M6X20 999 Next
1 02E398321 1 set circlips 999 Next
1 02E311321F Securing ring 26X1,8 999 Next
1 02E311321G Securing ring 26X1,9 999 Next
1 02E311321H Securing ring 26X2,0 999 Next
1 02E311321J Securing ring 26X2,1 999 Next
1 02E311321K Securing ring 26X2,2 999 Next
1 02E311321L Securing ring 26X2,3 999 Next
1 02E311321M Securing ring 26X2,4 999 Next
1 02E311321N Securing ring 26X2,5 999 Next
1 02E311321P Securing ring 26X2,6 999 Next
1 02E311321Q Securing ring 26X2,7 999 Next
1 02E301205C Cover 999 Next
1 02E301859A Securing ring 999 Next
1 Coupling included in position: 41 999 Next
1 02E398029C Repair set for multi-coupling 999 Next
1 02E323557B O-ring 55X60 999 Next
1 G 052128A1 Sealing grease for radial shaft oil seal 50G 999 Next
1 02E971800 Clip anti-twist device mating connector use if required: 999 Next

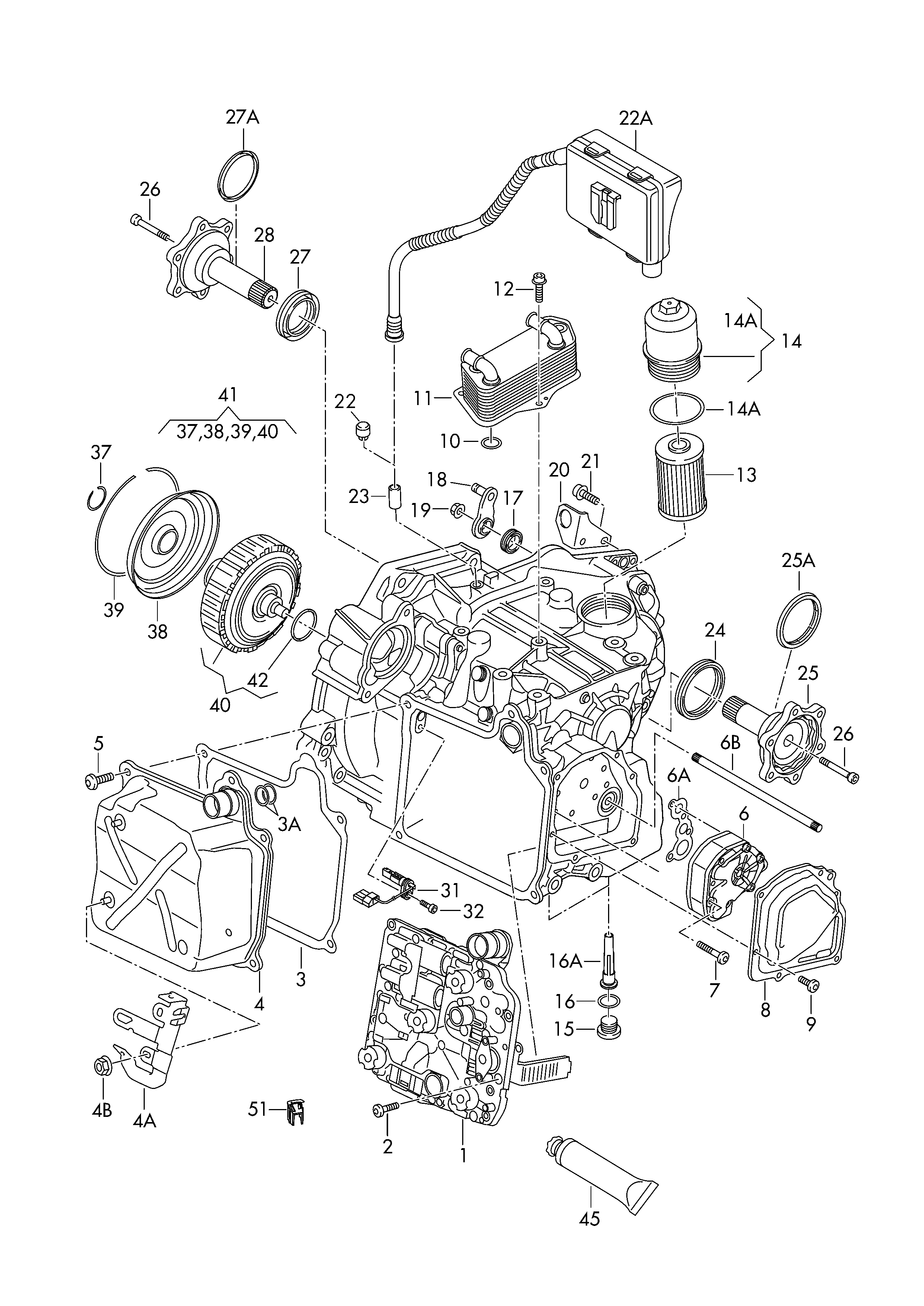

Scheme Mechatronic with software, coupling, oil pump, oil cooler, flanged shaft, for 6-speed dual clutch, gearbox petrol eng.+, CTHA, CTHD, CZDA Volkswagen Tiguan 2010-2017 EUR


Mechatronic with software, coupling, oil pump, oil cooler, flanged shaft, for 6-speed dual clutch, gearbox petrol eng.+, CTHA, CTHD, CZDA Volkswagen Tiguan 2010-2017 EUR
