Interior and reading light, vanity light, footwell light, glove compartment lid light, entry light, luggage compartment light, rear light reflector Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0907383F	Control unit for trailer detection	999	Next
2	1K0945505	Housing for trailer towing socket	999	Next
3	1C0945527	Cover with grommet	999	Next
4	1K0971501A	Retainer for control unit	999	Next
5	1K0971978	Rd. connector sleeve housing annular contact w/ solder pin 1K0 972 217 D	999	Next
8	N10680601	Hexagon socket flat head bolt use if required: M5X30 N 011 182 7	999	Next
8	N0111827	Hexagon nut, self-locking to be used for item: M5 8	999	Next
9	N0147804	Socket head bolt M6X15	999	Next
10	N90786102	Hex.hd. thread cutting bolt 6X17	999	Next
11	N90946001	Expanding nut 6X10,2	999	Next

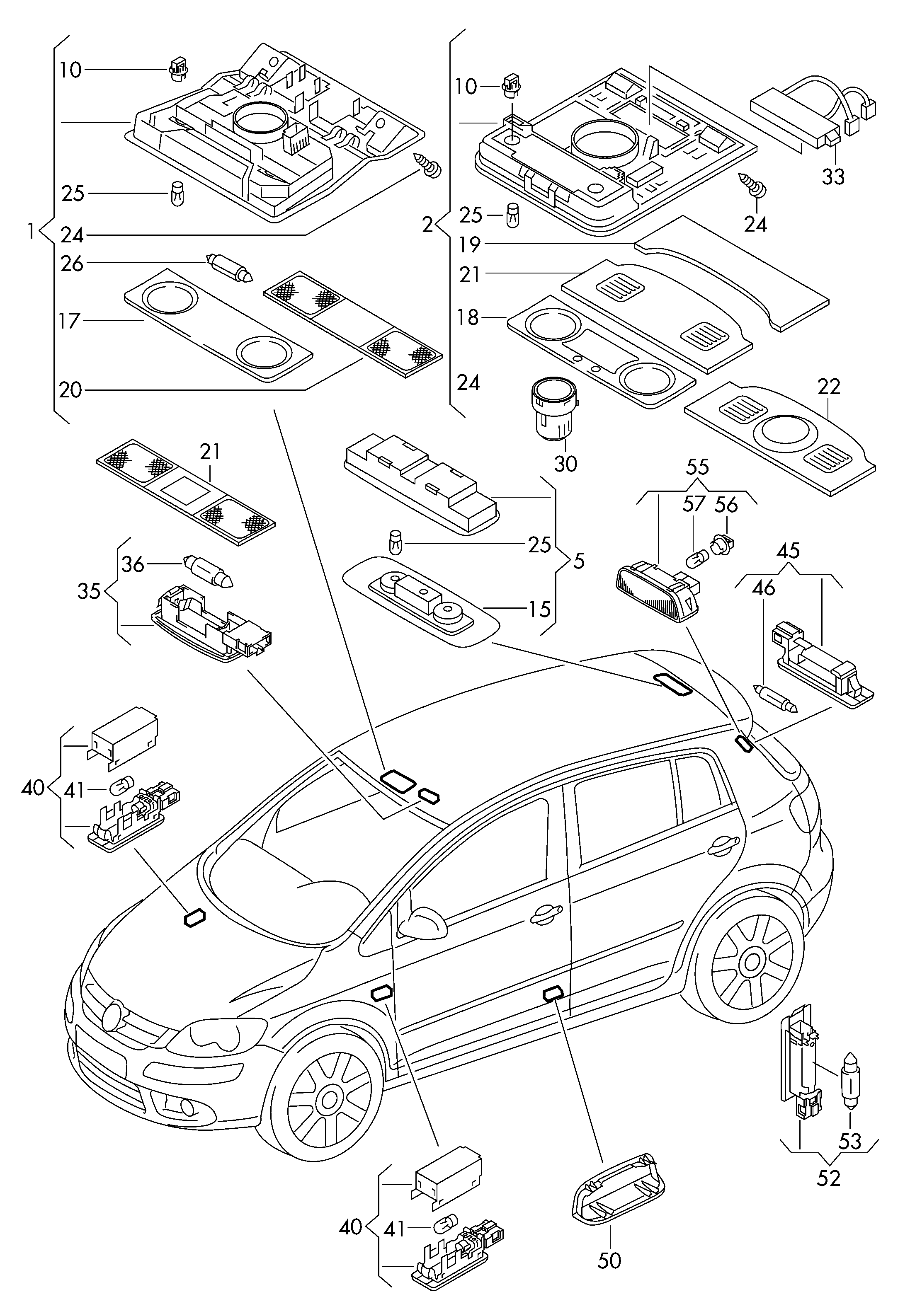

Scheme Interior and reading light, vanity light, footwell light, glove compartment lid light, entry light, luggage compartment light, rear light reflector Volkswagen Golf Plus 2012-2014 EUR
