Intake system, vacuum system, activated carbon filter system, suction jet pump 1.4ltr. petrol eng.+, PR-TF0 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C129709BA	Intake manifold - upper part	999	Next
1	03G906051E	Pressure sensor G71	999	Next
1	N 90739704	Panel screw 5X22	999	Next
1	03C129717A	Seal	999	Next
1	03C133202AQ	Intake manifold - lower part	999	Next
1	WHT002620	Sealing plug M20X1,5	999	Next
1	03C129717C	Seal	999	Next
1	N 10476002	Socket head bolt with inner multipoint head M8X58	999	Next
1	N 10666401	Socket head bolt with inner multipoint head M8X75	999	Next
1	N 91026602	Oval head locating bolt with multi-point socket head M8X35	999	Next
1	06J906051D	Pressure sensor G247	999	Next
1	03C129721D	Intake manifold	999	Next
1	03C129717B	Seal	999	Next
1	03C133073A	Seal 65,3X2,15X5,5	999	Next
1	N 10666701	Oval hexagon socket head bolt 6X25	999	Next
1	03C133062D	Throttle valve control element	999	Next
1	03C133062AA	Throttle valve control element	999	Next
1	N 10626101	Hexagon socket flat head bolt 6X45	999	Next
1	03C133518AF	Connecting hose	999	Next
1	03C201542B	Non-return valve	999	Next
1	03C201542	Non-return valve	999	Next
1	03C133518AS	Connecting hose	999	Next
1	03C133518AG	Connecting hose	999	Next
1	6QE906517A	Valve	999	Next
1	58133459	Thrust ring	999	Next
1	03C133518BA	Connecting hose	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1		Pressure pipe	999	Next
1	3D0971838N	Cable ties 4,5X200	999	Next
1	3W0971838	Cable ties 4,5X200	999	Next
1	4A0820199	Double cable tie 7X213/140MM	999	Next
1	03C133751F	Suction jet pump	999	Next
1	N 90926401	Spring band clamp 19X12	999	Next
1		Intake manifold	999	Next

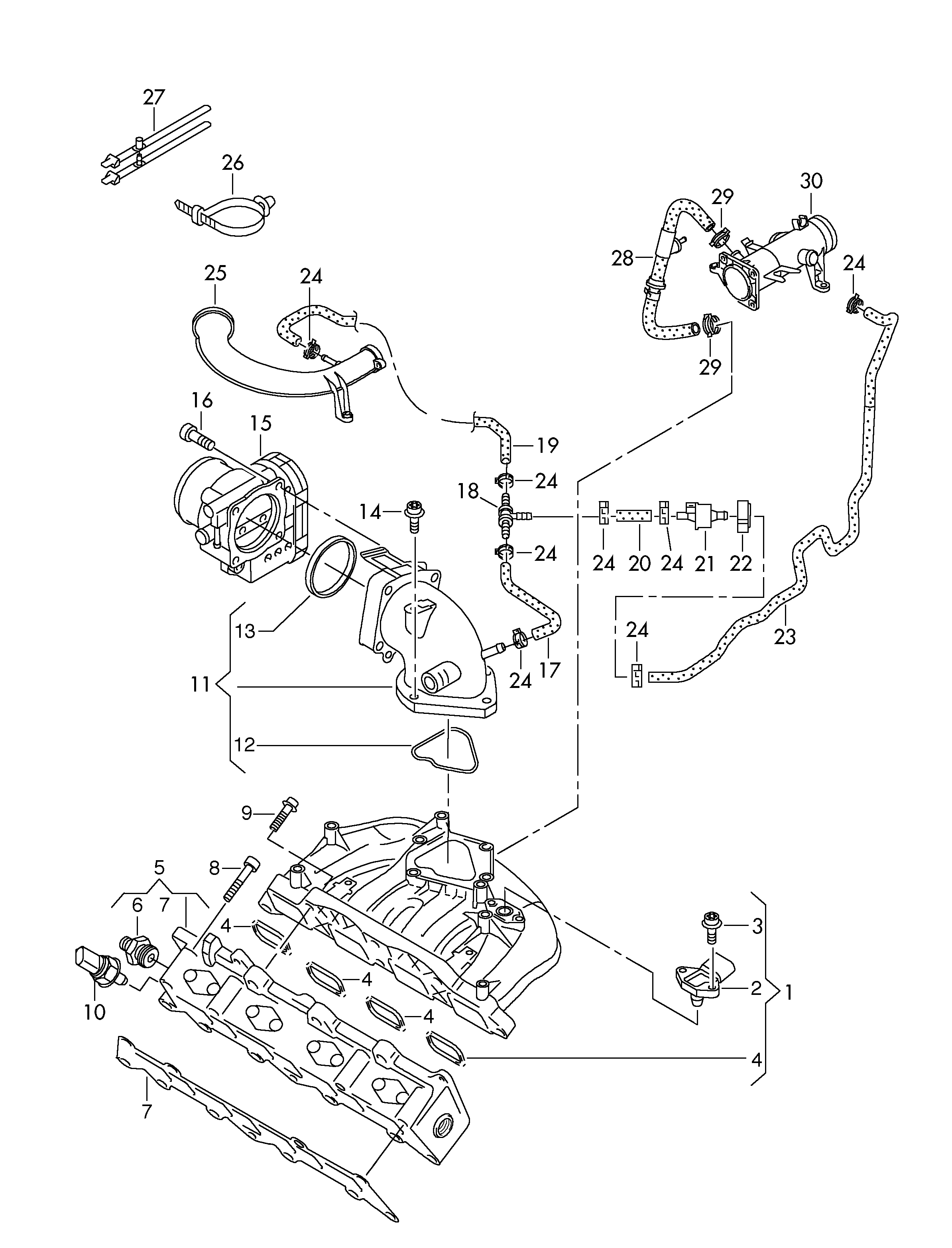

Scheme Intake system, vacuum system, activated carbon filter system, suction jet pump 1.4ltr. petrol eng.+, PR-TF0 Volkswagen Tiguan 2010-2017 EUR
