Intake system, vacuum system, activated carbon filter system, suction jet pump 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C129709BA	Intake manifold - upper part	999	Next
2	03G906051E	Pressure sensor G71	999	Next
3	N90739704	Panel screw 5X22	999	Next
4	03C129717A	Seal	999	Next
5	03C133202AQ	Intake manifold - lower part	999	Next
6	WHT002620	Sealing plug M20X1,5	999	Next
7	03C129717C	Seal	999	Next
8	N10476002	Socket head bolt with inner multipoint head M8X58	999	Next
-8	N10666401	Socket head bolt with inner multipoint head M8X75	999	Next
9	N91026602	Oval head locating bolt with multi-point socket head M8X35	999	Next
10	06J906051D	Pressure sensor G247	999	Next
11	03C129721D	Intake manifold	999	Next
12	03C129717B	Seal	999	Next
13	03C133073A	Seal 65,3X2,15X5,5	999	Next
14	N10666701	Oval hexagon socket head bolt 6X25	999	Next
15	03C133062D	Throttle valve control element	999	Next
15	03C133062AA	Throttle valve control element	999	Next
16	N10626101	Hexagon socket flat head bolt 6X45	999	Next
17	03C133518AF	Connecting hose	999	Next
18	03C201542B	Non-return valve	999	Next
18	03C201542	Non-return valve	999	Next
19	03C133518AS	Connecting hose	999	Next
20	03C133518AG	Connecting hose	999	Next
21	6QE906517A	Valve	999	Next
22	58133459	Thrust ring	999	Next
23	03C133518BA	Connecting hose	999	Next
24	N90686701	Spring band clamp 14X12	999	Next
25		Pressure pipe	999	Next
26	3D0971838N	Cable ties 4,5X200	999	Next
27	4A0820199	Double cable tie 7X213/140MM	999	Next
28	03C133751F	Suction jet pump	999	Next
29	N90926401	Spring band clamp 19X12	999	Next
30		Intake manifold	999	Next

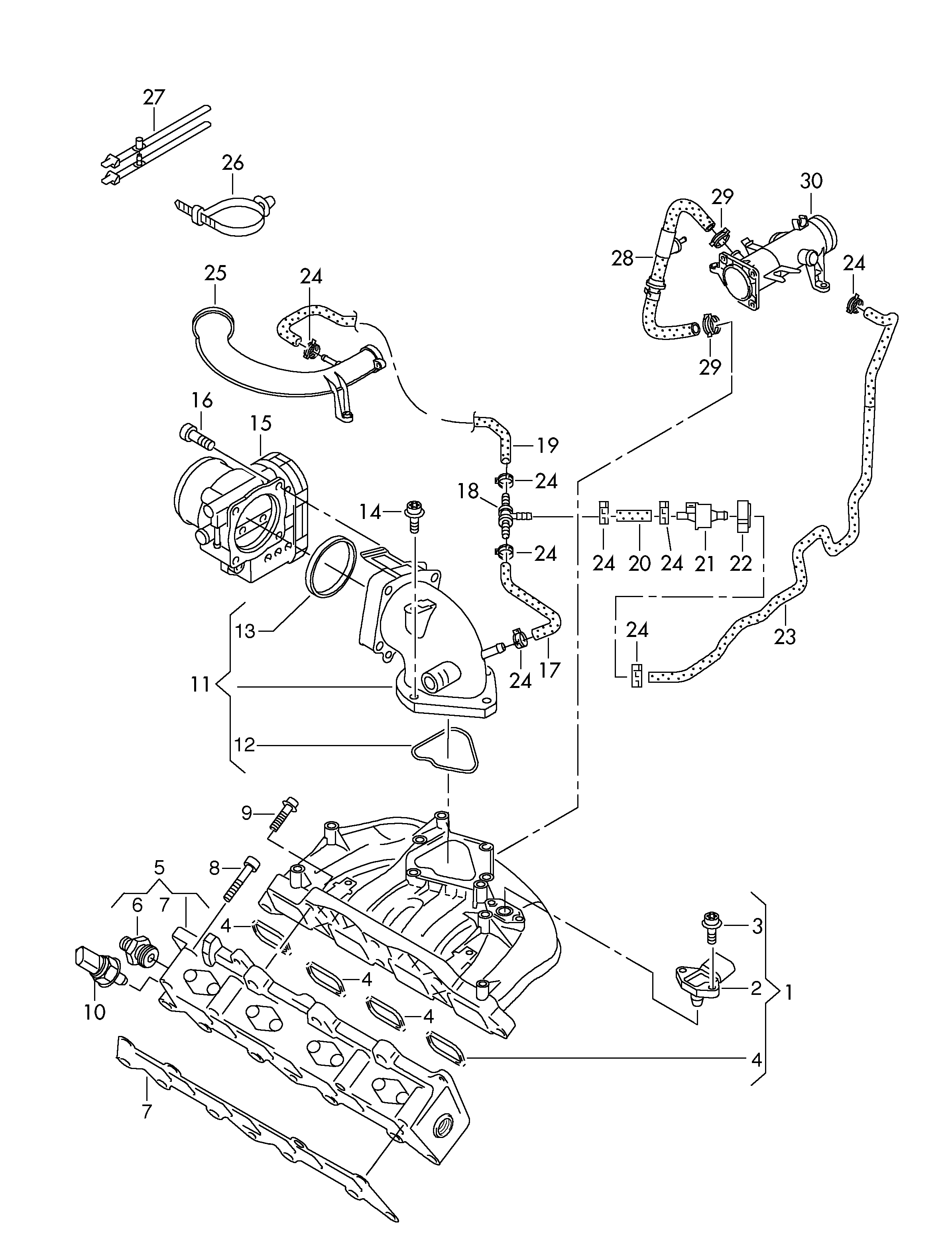

Scheme Intake system, vacuum system, activated carbon filter system, suction jet pump 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR
