Intake system, vacuum system, activated carbon filter system, charge air cooler 1.4ltr. petrol eng.+, PR-TU0 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C129709BD	Intake manifold - upper part	999	Next
1	03C129709BH	Intake manifold - upper part	999	Next
1	03C129717A	Seal	999	Next
1	03C133073A	Seal 65,3X2,15X5,5	999	Next
1	038906051B	Pressure sensor	999	Next
1	03G906051D	Pressure sensor	999	Next
1	036906149D	O-ring 7,59X2,62	999	Next
1	N 90739704	Panel screw 5X22	999	Next
1	03C129717H	Seal	999	Next
1	03F145749C	Charge air cooler	999	Next
1	WHT002603	Flat head bolt with hexagon socket head, thread forming TP6X22-Q	999	Next
1	03C133062S	Throttle valve control element	999	Next
1	03C133062T	Throttle valve control element	999	Next
1	N 10668001	Oval hexagon socket head bolt 6X65X30	999	Next
1	03C145853H	Adapter	999	Next
1	03C145853C	Adapter	999	Next
1	N 91026602	Oval head locating bolt with multi-point socket head M8X35	999	Next
1	03C133202AQ	Intake manifold - lower part	999	Next
1	03C129717C	Seal contained in: 03C 133 202 AQ	999	Next
1	WHT002620	Sealing plug M20X1,5	999	Next
1	N 10665101	Socket head bolt with inner multipoint head M8X60	999	Next
1	N 10666401	Socket head bolt with inner multipoint head M8X75	999	Next
1	06J906051D	Pressure sensor	999	Next
1	03C906051H	Pressure sensor	999	Next
1	03C133514BD	Connecting hose	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	03C133514BF	Connecting hose	999	Next
1	03F129717C	Seal L=180MM	999	Next
1	04E145757	Seal shorten to: L=280MM 180MM	999	Next

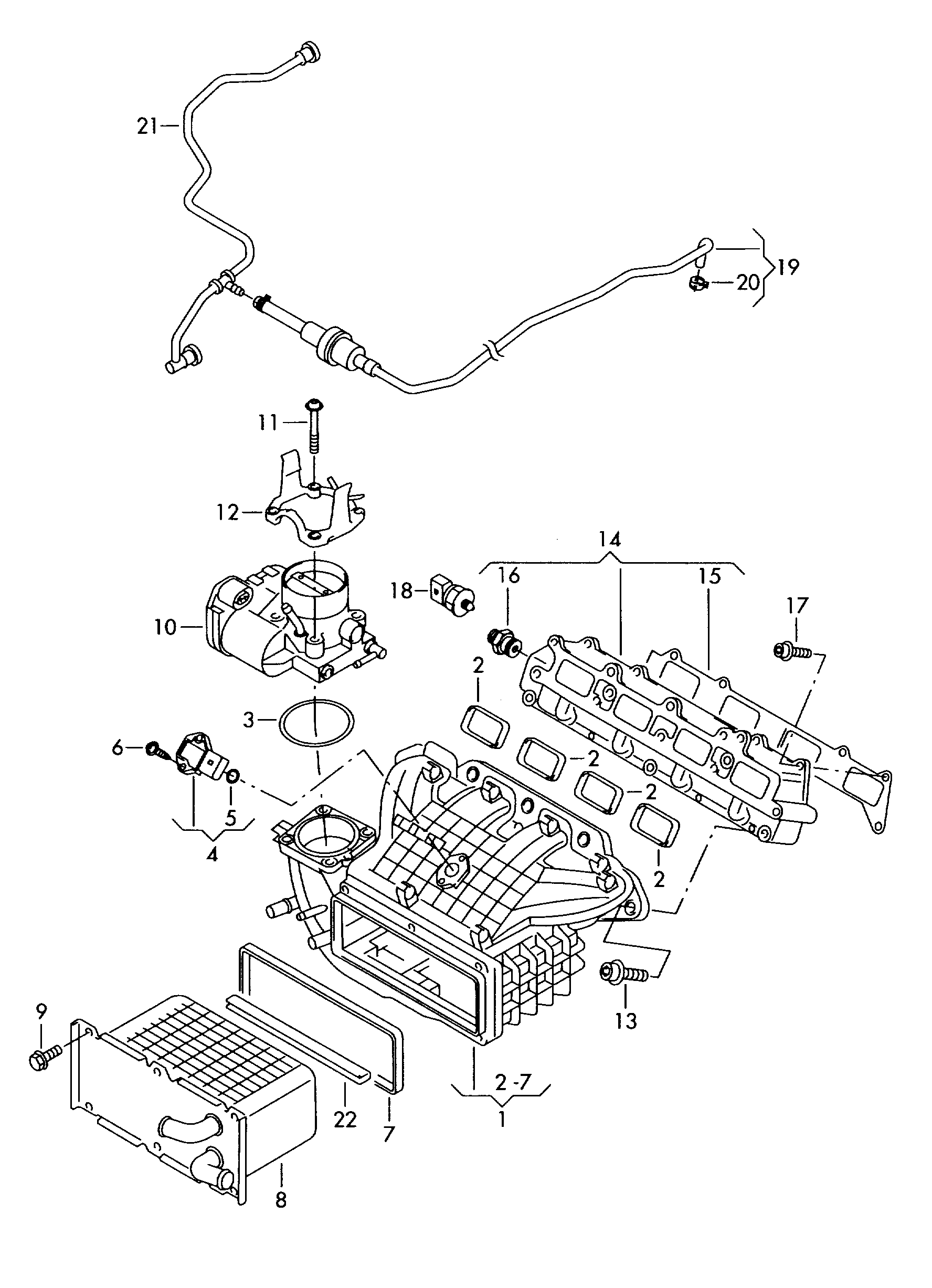

Scheme Intake system, vacuum system, activated carbon filter system, charge air cooler 1.4ltr. petrol eng.+, PR-TU0 Volkswagen Tiguan 2010-2017 EUR
