Intake system, vacuum system, activated carbon filter system, charge air cooler 1.2 ltr. petrol eng.+, CBZB, CBZA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03F129709H	Intake connection	999	Next
1	03F129709J	Intake connection	999	Next
2	03F129717	Seal	999	Next
3	03C133073A	Seal 65,3X2,15X5,5	999	Next
4	03G906051D	Pressure sensor	999	Next
5	036906149D	O-ring 7,59X2,62	999	Next
6	N90739704	Panel screw 5X22	999	Next
7	03C129717H	Seal only for: 03F 129 709 H	999	Next
7	03C129717N	Seal only for: 03F 129 709 J	999	Next
8	03F145749B	Charge air cooler	999	Next
9	WHT005551	Flat head bolt with hexagon socket head, thread forming TP6X22-Q	999	Next
10	03F133062	Throttle valve adapter	999	Next
11	N10668001	Oval hexagon socket head bolt 6X65X30	999	Next
12	03F145853A	Retaining bar	999	Next
13	N91097201	Round hd. screw M6X35	999	Next
14	03F133518E	Connecting hose	999	Next
15	N90686701	Spring band clamp 14X12	999	Next
16	03F133366B	Connecting hose	999	Next
17	03F129717C	Seal L=180MM	999	Next
17	04E145757	Seal shorten to: L=280MM 180MM	999	Next
18	03F129717A	Seal	999	Next
19	03F133751B	Suction jet pump	999	Next
20		Vent hose	999	Next
20		Vent hose	999	Next
21	4A0820199	Double cable tie 7X213/140MM	999	Next
22	3D0971838N	Cable ties 4,5X200	999	Next

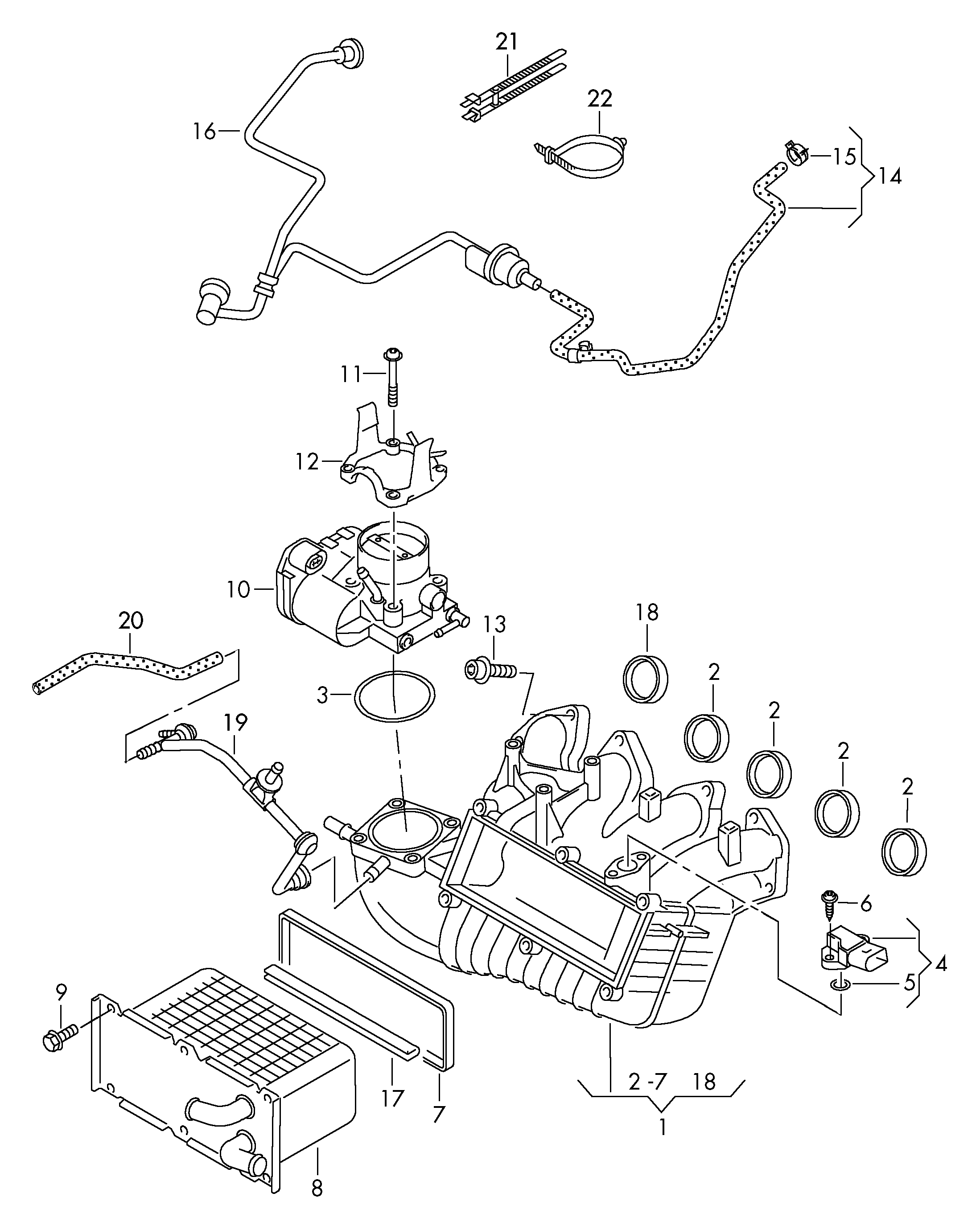

Scheme Intake system, vacuum system, activated carbon filter system, charge air cooler 1.2 ltr. petrol eng.+, CBZB, CBZA Volkswagen Golf Plus 2012-2014 EUR
