Intake system, vacuum system 2.0 ltr. petrol eng.+, PR-TD6, TQ2 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J133201AS	Variable intake manifold contains additional positions: 2, 8	999	Next
1	06J133201BD	Variable intake manifold contains additional positions: 2, 8	999	Next
1	037906283C	Solenoid valve	999	Next
1	06F133062Q	Throttle valve adapter	999	Next
1	06F133062T	Throttle valve adapter	999	Next
1	06F133073D	Seal	999	Next
1	N 10626101	Hexagon socket flat head bolt 6X45	999	Next
1	06F121273A	Bonded rubber bush	999	Next
1	06F129717D	Seal	999	Next
1	N 02035327	Hose in coils of 5m 'order unit 5' 3,5X2	999	Next
1		Shorten to: 120MM	999	Next
1	06J133241F	Connecting hose	999	Next
1	06J133241T	Connecting hose	999	Next
1	06J133241M	Connecting hose	999	Next
1	06J133241AB	Connecting hose	999	Next
1	N 91089601	Hexagon socket flat head bolt M6X60	999	Next
1	N 10277103	Threaded pin M6X62	999	Next
1	N 01508210	Hexagon collar nut M6	999	Next
13	06B905379D	Temperature sensor	999	Next
1	06H129723K	Support	999	Next
1	N 10609203	Hexagon collar nut M8	999	Next
1	N 10649401	Socket head collared bolt with inner multipoint head M8X65	999	Next
1	06J133781CA	Hose set with clips non-return valve	999	Next
1	06J133781CE	Hose set with clips non-return valve	999	Next
1	N 0206096	Clamp 1-8X15	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	N 91085801	Oval head panel screw (combi) 3,5X16	999	Next
1	N 10721401	Hexagon socket flat head bolt 6X16-Q	999	Next
1	5N0133366D	Connecting hose	999	Next
1	5N0133366E	Connecting hose	999	Next
1	06J133781BE	Connecting hose	999	Next
1	N 10108301	Spring band clamp 15,3X7X0,60	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	5N0133778B	Vacuum hose	999	Next
1	07L907386	Swing angle sensor	999	Next
1	07L907386A	Swing angle sensor	999	Next
1	07L907386B	Swing angle sensor	999	Next
1	N 90936503	Hexagon socket head panel bolt 3X12	999	Next
1	06J133518F	Connecting hose	999	Next
1	1K0133778AH	Connecting hose	999	Next
1	058905291N	Non-return valve	999	Next
1	N 90986501	Spring band clamp 14,5X12	999	Next
1		Exhaust manifold with turbocharger	999	Next
1	4A0820199	Double cable tie 7X213/140MM	999	Next
1		Coolant pipe	999	Next

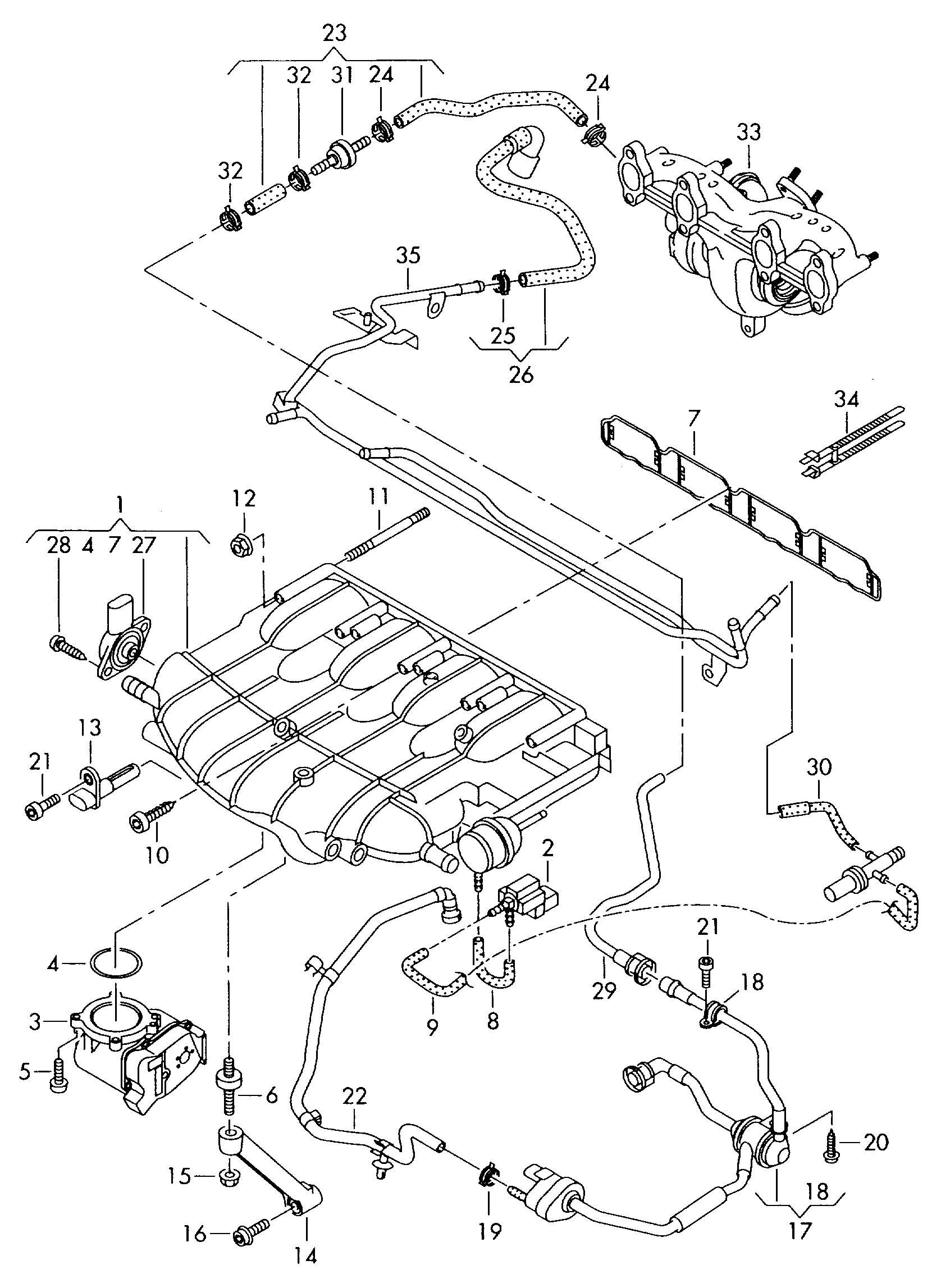

Scheme Intake system, vacuum system 2.0 ltr. petrol eng.+, PR-TD6, TQ2 Volkswagen Tiguan 2010-2017 EUR
