Intake system, activated carbon filter system 1.6ltr. petrol eng.+, BSE, BSF, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06A133203EM	Intake manifold - upper part	999	Next
1	06A133203FA	Intake manifold - upper part	999	Next
2	06B906051	Pressure sensor	999	Next
2	03C906051F	Pressure sensor	999	Next
3	036906149D	O-ring 7,59X2,62	999	Next
4	N10442003	Self-tapping screw 5X16	999	Next
5	06A133062AT	Throttle valve control element for vehicles with accelerator pedal sender	999	Next
6	037133557C	O-ring 66,5X1,8X7,5	999	Next
7	06A103193C	Oval head self-tapping screw 6X52	999	Next
8	06A133206BD	Intake manifold - lower part	999	Next
8	06A133206BG	Intake manifold - lower part	999	Next
8	06A133206BK	Intake manifold - lower part	999	Next
9	06A133227B	Seal	999	Next
9	06A133227D	Seal	999	Next
10	N90359101	Spreader rivet 6X15	999	Next
11	06A129723Q	Support	999	Next
12	06A129763	Rubber bush	999	Next
13	WHT001817	Locating bolt 8X16,5	999	Next
14	N10242602	Socket head bolt with inner multipoint head M8X40	999	Next
15	N10327501	Oval head panel screw 5X18	999	Next
16	06A133398F	O-ring 42,6X1,75X4,75	999	Next
17	N10609203	Hexagon collar nut M8	999	Next
18	N90348706	Socket head bolt M8X45	999	Next
19	06A133687H	Bracket	999	Next
20	06A133778L	Vacuum hose	999	Next
20	06A133778Q	Vacuum hose	999	Next
21	037906283C	Solenoid valve	999	Next
-	N02035327	Hose in coils of 5m 3,5X2	999	Next
22		Shorten to: 112MM	999	Next
23	06A103932P	Inscription 1,6'	999	Next
23	D438515A2	Double-sided adhesive tape 7000X6X1	999	Next
24		Not for this model	999	Next
25	058133517B	Solenoid valve	999	Next
-	N10303504	Hose in coils of 5m 7,3X3,5	999	Next
26		Shorten to: 190MM	999	Next
27	1K0133366AS	Connecting hose	999	Next
28	N90686701	Spring band clamp 14X12	999	Next

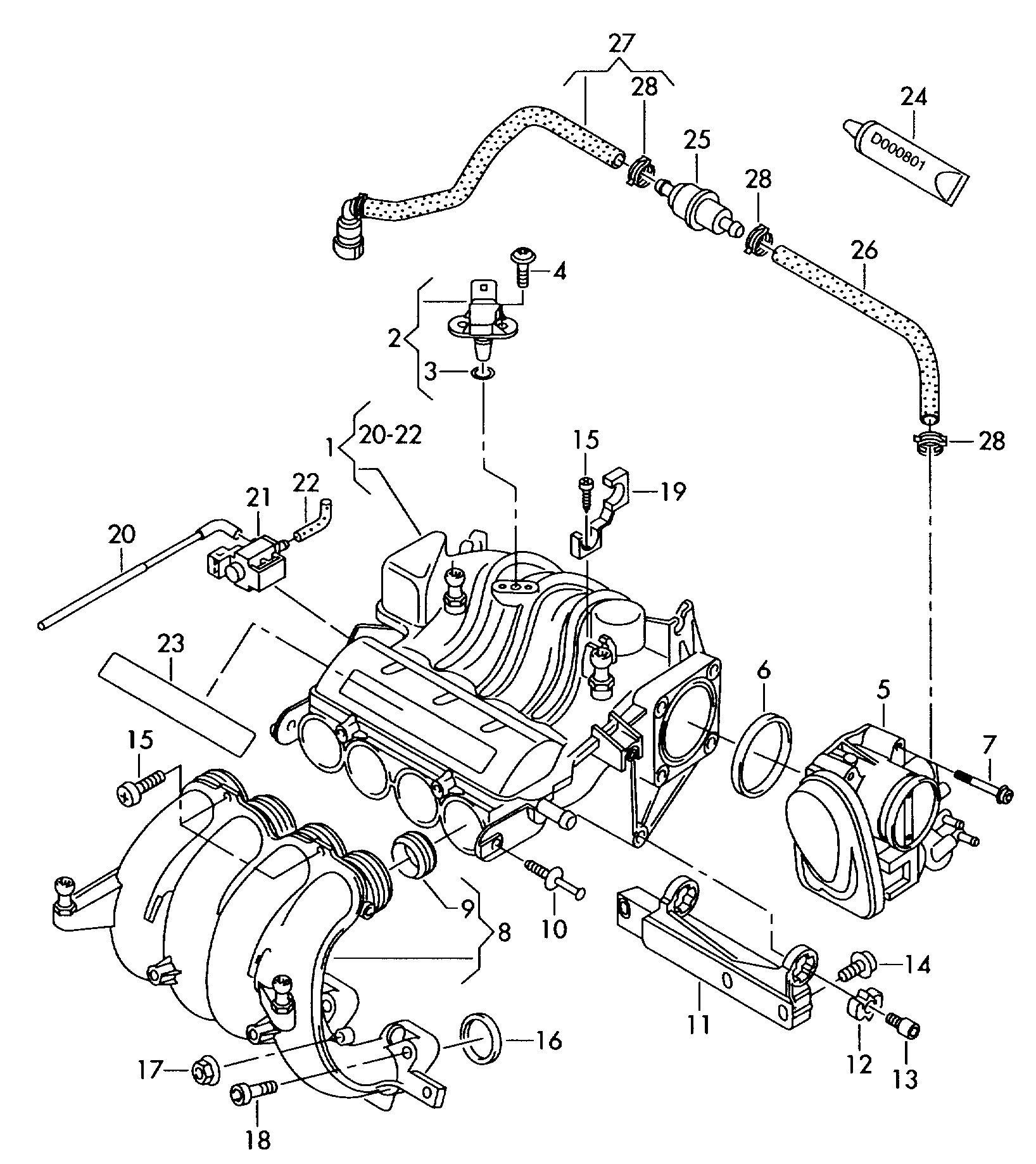

Scheme Intake system, activated carbon filter system 1.6ltr. petrol eng.+, BSE, BSF, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR
